Buy Metravi PSI-HV High Voltage Phase Indicator Online

Free Delivery in India | Lowest Global Shipping Charges

Metravi Wireless High Voltage Phase Sequence Indicator PSI-HV

Name: Metravi Wireless High Voltage Phase Sequence Indicator PSI-HV
Brand: Metravi
SKU: ADTCK
Price: 874.54 USD
Availability: InStock



SKU ADTCK Category Phase Sequence Indicator Brand Metravi Condition New

Specifications

Country of Origin	India

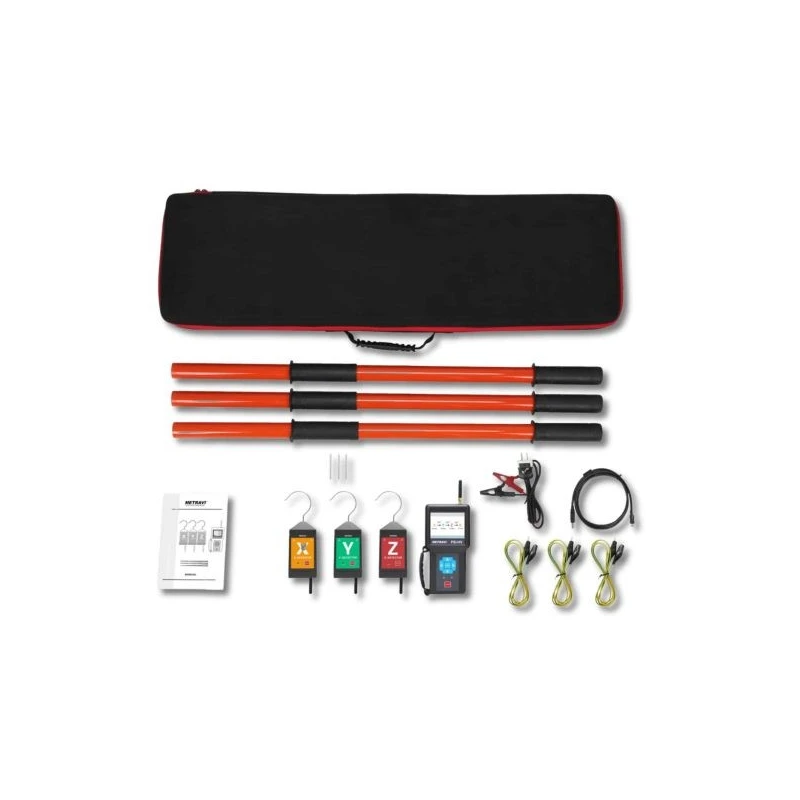

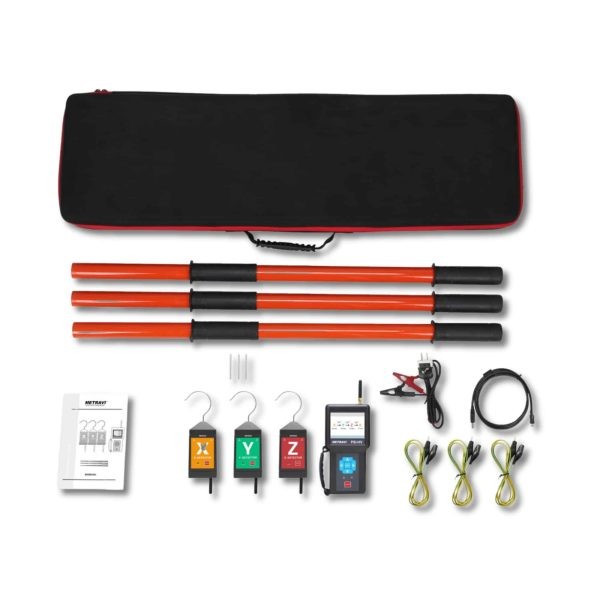

Package Contents	Metravi PSI-HV Wireless High Voltage Phase Sequence Indicator Meter / Detector 3 pcs / Probe 3pcs / Probe Hook 3 pcs / Insulation Rod 3pcs / USB Data Cable/ Charge Cable / Inspection Cable / Ring Cabinets Test Line 3pcs / Cloth Bag
Frequency range	45.0–65.0Hz (Accuracy ≤±2Hz
Brand	Metravi
Power Supply	Host 3.7V 2600mAh rechargeable battery- Detector 3.7V 1000mAh rechargeable battery
Model	PSI-HV
LCD Size	3.5-inch color screen (71×53 mm display area)
Rated current	Detector ≤30mA
Data Storage	200 groups (retains data after power down)
Instrument Weight	≈8 kg (including accessories)
Auto Shutdown	After 15 min of inactivity
Battery Voltage	Host 4-bar indicator (charging required below 1 bar)- Detector flashing LED indicates low battery
Phase Detection Voltage	AC 10V–500kV
Phase Detection Distance	200m
Voice Prompt	"X signal is normal
Phase Sequence Qualitative	Positive phase X→Y→Z→X (phase difference 100°–140°)- Reversed phase X→Z→Y→X (phase difference 100°–140°)
Phase Detection Qualitative	In phase –20°–20°- Out phase 100°–140° and 220°–260°
Phase Range	0°–360° (Accuracy ≤±10°
Electricity Test Indication	“du–du–du” buzzer sound
Voltage Display	Displays voltage grade
Transmitting Frequency	433MHz
Instrument Dimensions	Host 195×100×45 mm- Detector 130×65×45 mm
Insulation Rod	Φ45 mm (max diameter)
Insulation Test	Rod AC 220 kV RMS- Host/Detector AC 3700 V RMS (between metal and shell)

Key Features

Wireless high voltage phase sequence detection
Supports phase testing from 10 V to 500 kV
Long-distance phase detection up to 200 m
Colour LCD display for clear phase indication
Data storage for recording test results

Product Description

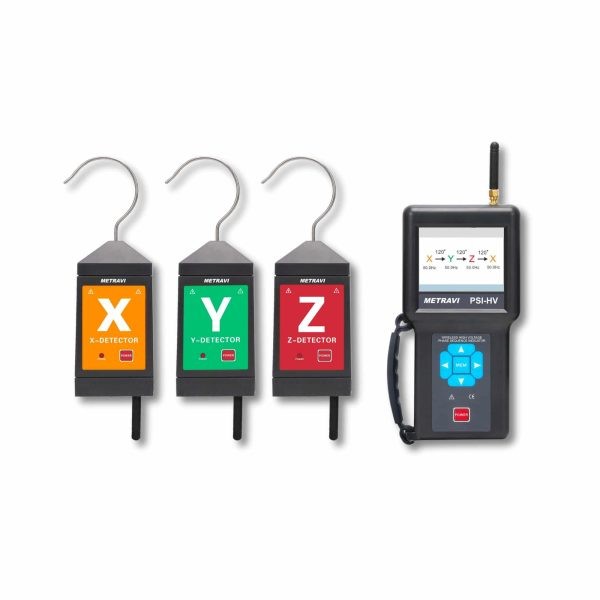

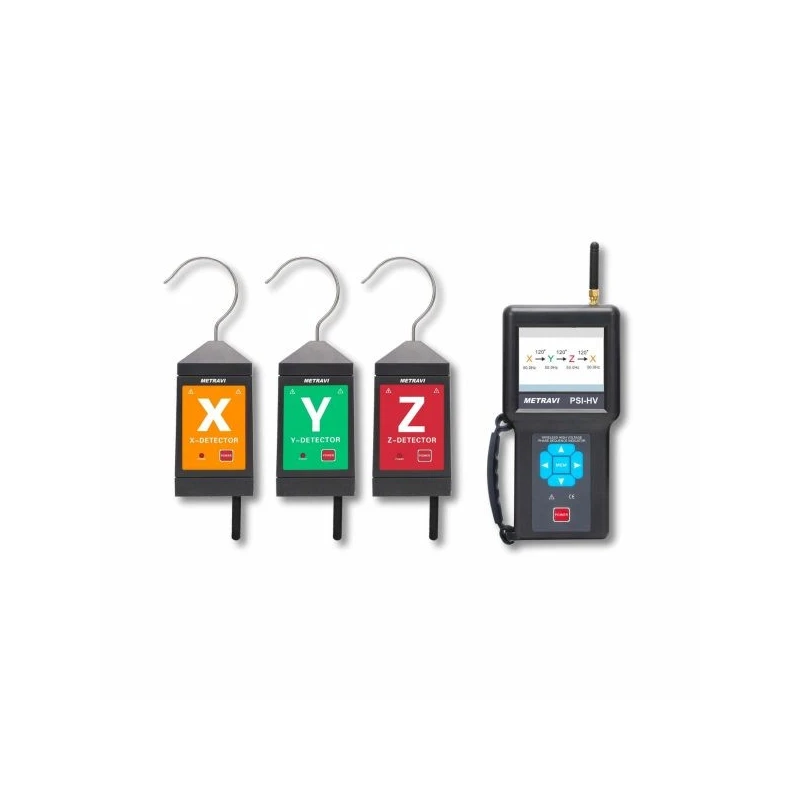

Metravi PSI-HV Phase Sequence Indicator is a high-performance testing instrument designed for accurate phase detection and verification in high-voltage electrical systems. Engineered for both contact and non-contact operation, it ensures safe and reliable identification of phase sequence in the voltage range of 10V to 500kV, making it ideal for power utilities, substations, and industrial installations. The device features a clear 3.5-inch color LCD display for easy reading and intuitive operation, along with a wide phase range of 0° to 360° for precise analysis. With a detection distance of up to 200 meters and transmitting frequency of 433MHz, it offers efficient remote monitoring capabilities. The unit supports data storage of up to 200 groups and operates on a rechargeable battery for enhanced portability. Designed for engineers and technicians, the Metravi PSI-HV ensures safe, accurate, and efficient phase testing in demanding electrical environments. Available on EnvMart, these Phase Sequence Indicators are perfect for determining the correct phase sequence in three-phase systems. Metravi Phase Sequence Indicators offer accuracy and reliability, making them ideal for electricians, maintenance teams, and industrial applications.
