Hioki Phase Detector PD3129

Name: Hioki Phase Detector PD3129
Brand: HIOKI
SKU: ADEDP
Price: 166.37 USD
Availability: InStock



SKU ADEDP Category Phase Sequence Indicator Brand HIOKI Condition New

Specifications

Country of Origin	Japan
Display	Positive - LEDs clockwise / intermittent buzzer / green arrow \| Negative - LEDs counterclockwise / continuous buzzer
Frequency range	45–66 Hz
Size	70 × 75 × 30 mm
Voltage Range	70–600 V AC (50/60 Hz / sine wave / continuous input)
Brand	HIOKI
Power Supply	2 × AA (LR6) alkaline batteries / 200 hr continuous use
Model	PD3129
Accessories	Carrying case / strap / spiral tube / instruction manual / batteries
Cord Length	0.7 m (2.30 ft)
Weight	200 g
Functions	Phase detection (positive/negative)
Auto Power Off	Shuts off after 15 minutes of inactivity
Voltage detection	Static induction
Battery Check	Power ON lamp (steady for ON / blinking for low battery)
Compatible Wiring	2.4 mm to 17 mm insulated wiring

Key Features

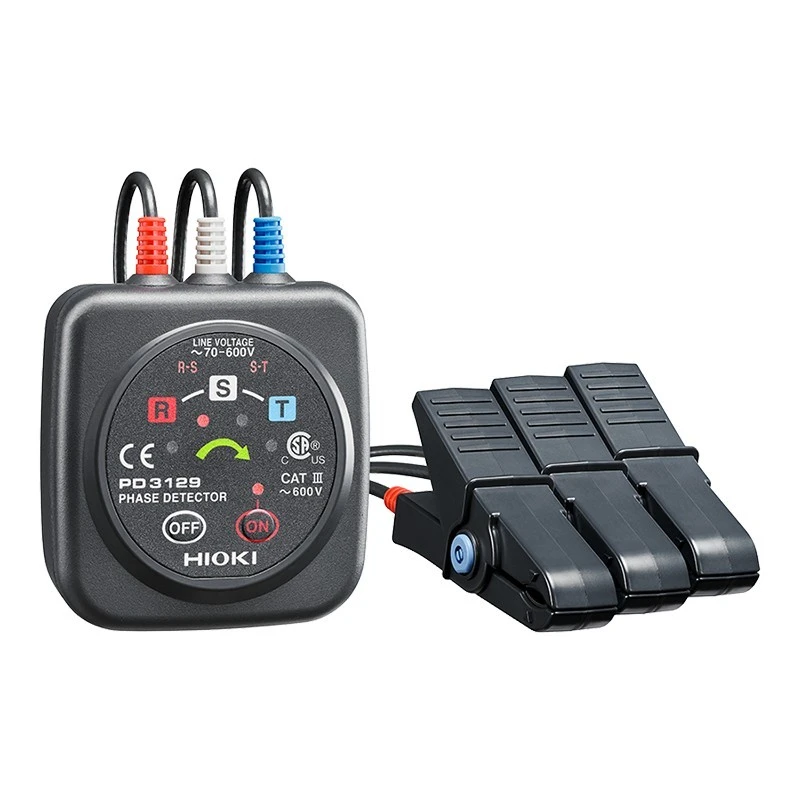

Simple clamp-on wire insulation connection.
Green LED arrow for clear phase direction indication.
Rotating LED for quick 3-phase sequence visualization.
Intermittent/continuous beeps for positive/reverse phase indication.
Magnetic base for securing to distribution panels.

Product Description

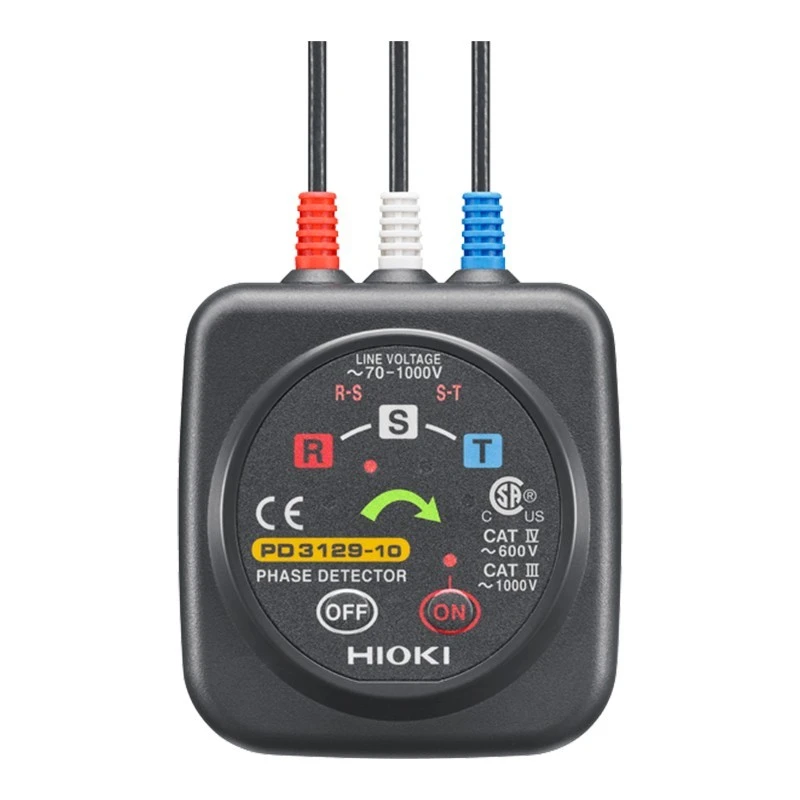

Hioki’s non-contact voltage detection and measurement technology places efficiency and safety as priority considerations with the goal of protecting customers that need to conduct on-site electrical work as part of renovations and expansions of manufacturing plants and buildings. Model PD3129 is a non-contact phase rotation meter that detects the phase of electrical current flow within insulated wires without using metallic contact voltage clips. The green arrow indicates normal phase, which can be useful for visual reports that document the proper completion of electrical work.

Available on EnvMart, these Phase Sequence Indicators are designed for accurate determination of phase sequence in electrical systems. Hioki Phase Sequence Indicators provide high precision and reliability, making them essential for ensuring proper phase rotation and electrical system safety.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The voltage range for this model is 70–600 V AC, suitable for both 50/60 Hz sine wave continuous input.

The frequency range supported by the PD3129 is 45–66 Hz.

It uses positive LEDs to indicate clockwise rotation with an intermittent buzzer, and negative LEDs for counterclockwise rotation with a continuous buzzer.

Included accessories are a carrying case, strap, spiral tube, instruction manual, and batteries.

The dimensions of the PD3129 are 70 × 75 × 30 mm, and it weighs 200 g.

It is powered by 2 AA (LR6) alkaline batteries, allowing for 200 hours of continuous use.

The PD3129 is compatible with insulated wiring ranging from 2.4 mm to 17 mm in diameter.

This model automatically shuts off after 15 minutes of inactivity to conserve battery life.

The power ON lamp indicates the battery status: it remains steady for ON and blinks for low battery.

The voltage detection method employed is static induction, allowing for non-contact measurements.

The green LED arrow indicates the normal phase direction, assisting in visual reports for electrical work completion.

This model performs phase detection for both positive and negative phases, ensuring proper phase sequence in electrical systems.
