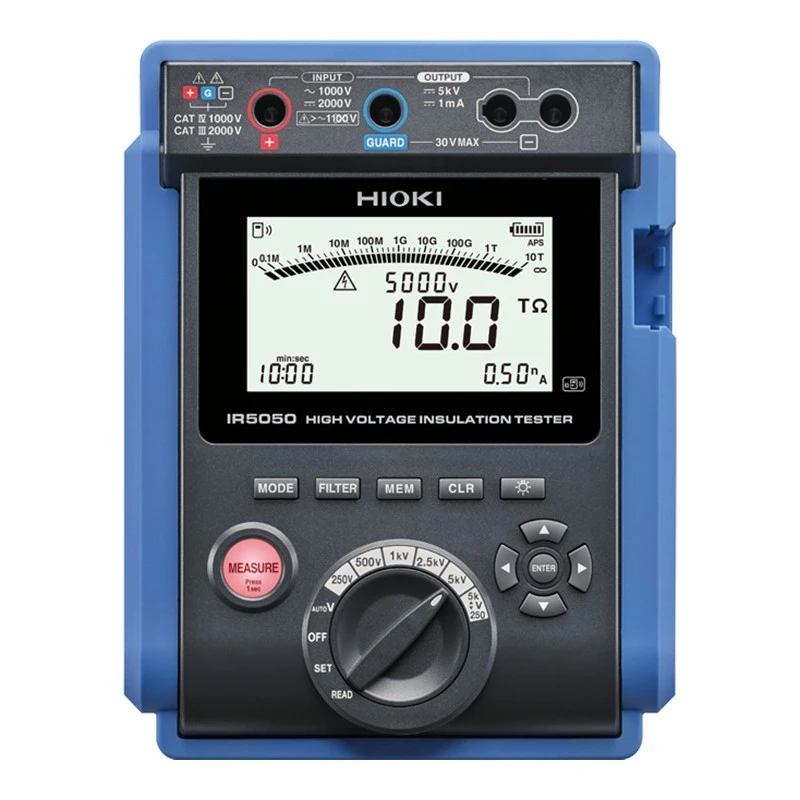

Hioki High Voltage Insulation Tester IR5050
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | HIOKI |
| Power | 8 × AA Alkaline/NiMH batteries |
| Dimensions | 195 × 254 × 89 mm |
| Battery Life | ~5 hrs (without Z3210) / ~4 hrs (with Z3210) |
| Protection Type | IP40 (with protector) / IP65 (case) |
| Parameters | Voltage / Capacitance / Leakage / Insulation |
| Model | IR5050 |

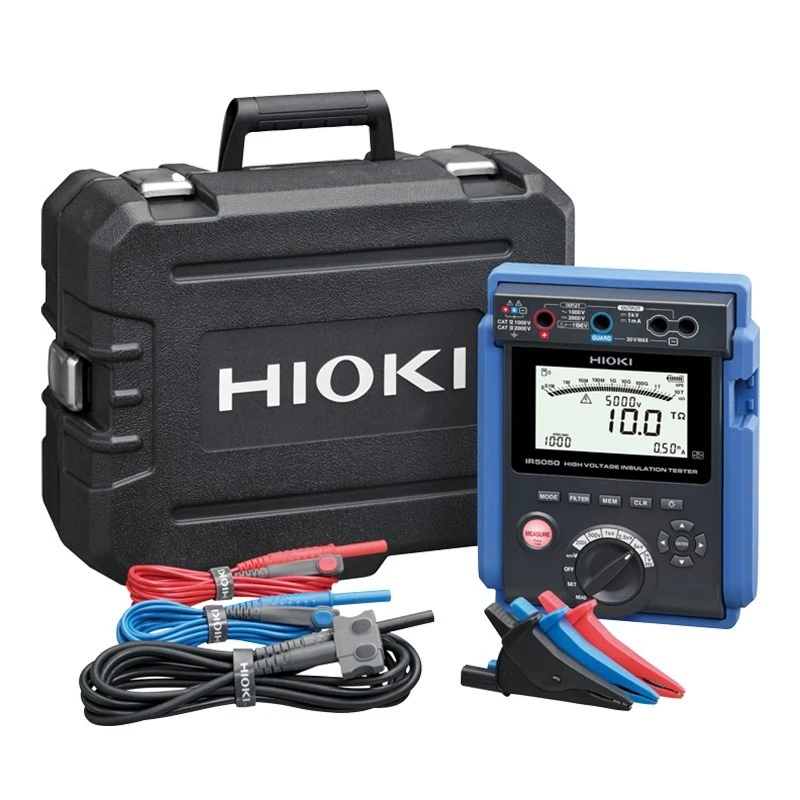

| Accessories | Test leads / Alligator clips / Case / Batteries / Manual |
| Weight | 1.7 kg (with batteries) |
| Temp. Range | -20°C to 50°C (Operation) / -25°C to 65°C (Storage) |
| Rated Voltage (V) | 1000 V (CAT IV) / 600 V (CAT III) |
| Max Voltage (V) | 1000 V AC / 2000 V DC (Terminals) |
Key Features
- High-voltage equipment insulation measurement.
- Wide test voltage range: 250 V to 5000 V DC.
- Wide insulation range: up to 10 TΩ.
- Automatic insulation diagnostics (PI, DAR, DD).
- Data memory for error reduction.
- Wireless and USB connectivity.
- Compact, lightweight, IP65-rated carrying case.
Product Description
The Hioki IR5050 High Voltage Insulation Resistance Tester is a portable, powerful tool for precision insulation testing in demanding industrial environments.
Applications:
- High-Voltage Output: Delivers up to 5 kV for thorough insulation assessment.
- High Resistance Measurement: Measures up to 10 TΩ with exceptional stability.
- Advanced Diagnostics: Offers step voltage, ramp voltage, PI, DAR, and DD calculations for in-depth insulation analysis.
- User-Friendly Operation: Features an intuitive rotary knob for simplified setup and control.
- Data Management: Includes internal memory, USB, and optional wireless connectivity for efficient data transfer and reporting.
- Compact and Lightweight: Designed for easy transport and on-site use.
- Versatile Applications: Suitable for testing high-voltage cables, transformers, motors, and other critical equipment.
- Graphical Trending: Enables real-time graph display on mobile devices for immediate analysis.
Available on EnvMart, these Multimeters are designed for accurate measurement of voltage, current, and resistance in electrical circuits. Hioki Multimeters offer high precision and reliability, making them essential for electrical testing, diagnostics, and maintenance applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It measures insulation resistance up to 10 TΩ, providing exceptional stability for accurate readings.
This tester operates on 8 × AA Alkaline or NiMH batteries.
The dimensions are 195 × 254 × 89 mm, and it weighs 1.7 kg when including the batteries.
It has an IP40 rating with a protector and an IP65 rating for the carrying case, ensuring suitable protection in various conditions.
The operating temperature range is from -20°C to 50°C, while the storage range is from -25°C to 65°C.
Included accessories are test leads, alligator clips, a case, batteries, and a manual.
It features internal memory, USB connectivity, and optional wireless connectivity for efficient data transfer and reporting.
It provides automatic insulation diagnostics including PI, DAR, and DD calculations for in-depth insulation analysis.
