Chauvin Arnoux Insulation Resistance Tester, 40 V Min, 5100 V Max, 10000 GΩ Aurix, Cat I 2, UKAS CA 6545 P01139711

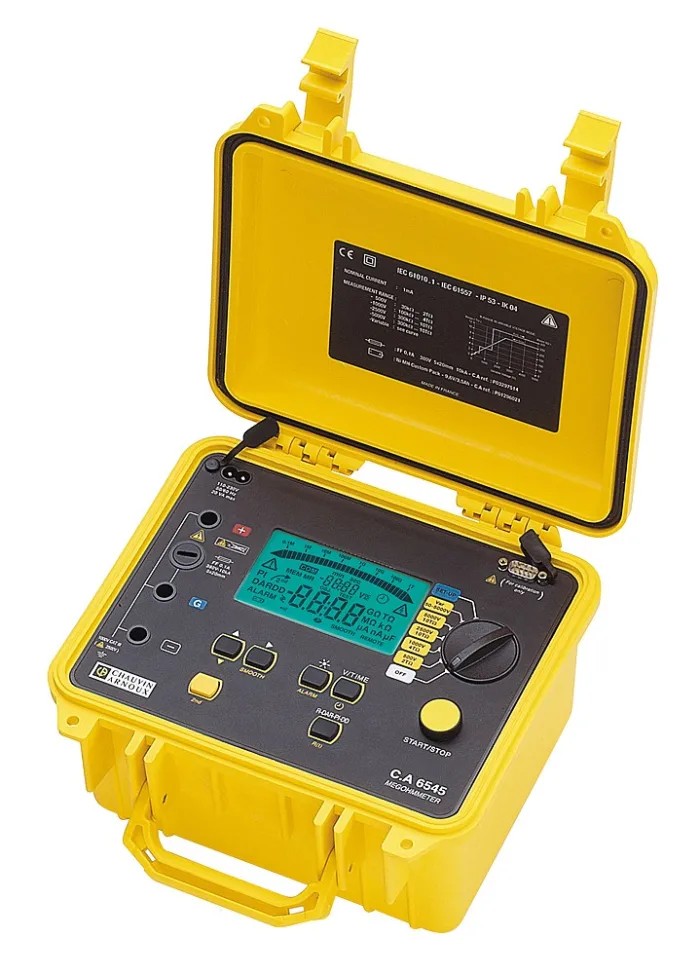

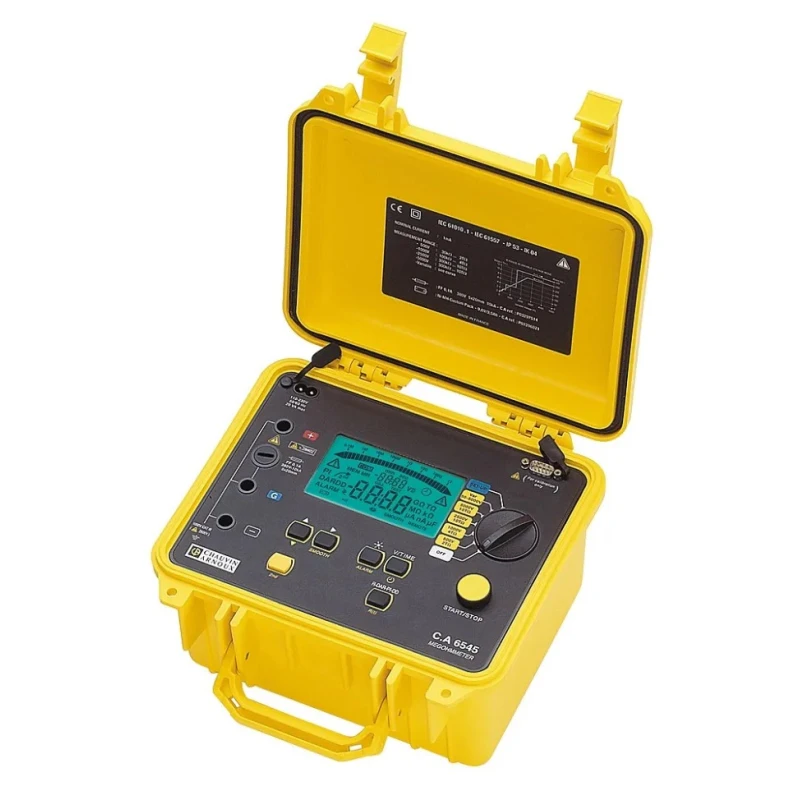

The Chauvin Arnoux CA 6545 Insulation Resistance Tester is a precision instrument engineered for accurate insulation testing across a wide voltage range from 40 V minimum to 5100 V maximum. It supports insulation resistance measurement up to 10000 GΩ, ideal for diagnostic assessments in electrical installations, industrial equipment, and safety compliance testing.

Equipped with a rechargeable Nickel-Metal Hydride battery, this tester offers 30 days of operation, enabling long-term field use without frequent recharge interruptions. Its large, backlit LCD with bar graph display ensures clear visibility of readings under varying lighting conditions.

Besides insulation resistance, it automatically measures voltage, capacitance, and residual current, facilitating comprehensive device diagnostics. Advanced features include multiple programmable test durations, voltage locking, smooth function for stable readings, and customizable alarm settings to alert users of test conditions.

Certified to meet IEC 61557 standards and IEC 61010-1 Cat.III 1000V or Cat.I 2500V safety levels, this unit assures compliance and safe operation in diverse industrial settings. The tester is calibrated by UKAS, guaranteeing accuracy and reliability conforming to international testing standards.

With dimensions of 270 mm length, 250 mm width, and 180 mm height, and weighing 4.3 kg, the CA 6545 balances portability with ruggedness. It's suitable for industrial, laboratory, electrical maintenance, and HVAC environments, providing high-precision insulation testing capabilities needed for maintenance and quality assurance.

The device features a rechargeable Nickel-Metal Hydride battery with up to 30 days battery life. A large backlit bar graph LCD display provides clear measurement visualization. Measurements include voltage, capacitance, and residual current for comprehensive insulation analysis.

Programmable functions include test duration, alarms, test voltage locking, and smooth function. Built to IEC 61557 and IEC 61010-1 safety standards with UKAS calibration for reliability. Compact dimensions of 270 x 250 x 180 mm and a weight of 4.3 kg make it portable for field and laboratory use.

Designed for use in electrical testing, industrial maintenance, HVAC, and construction environments.

This insulation resistance tester is essential for industries requiring precise electrical safety and insulation condition monitoring. Explore more professional testing instruments with Chauvin Arnoux and other brands on EnvMart to enhance your diagnostic capabilities.
