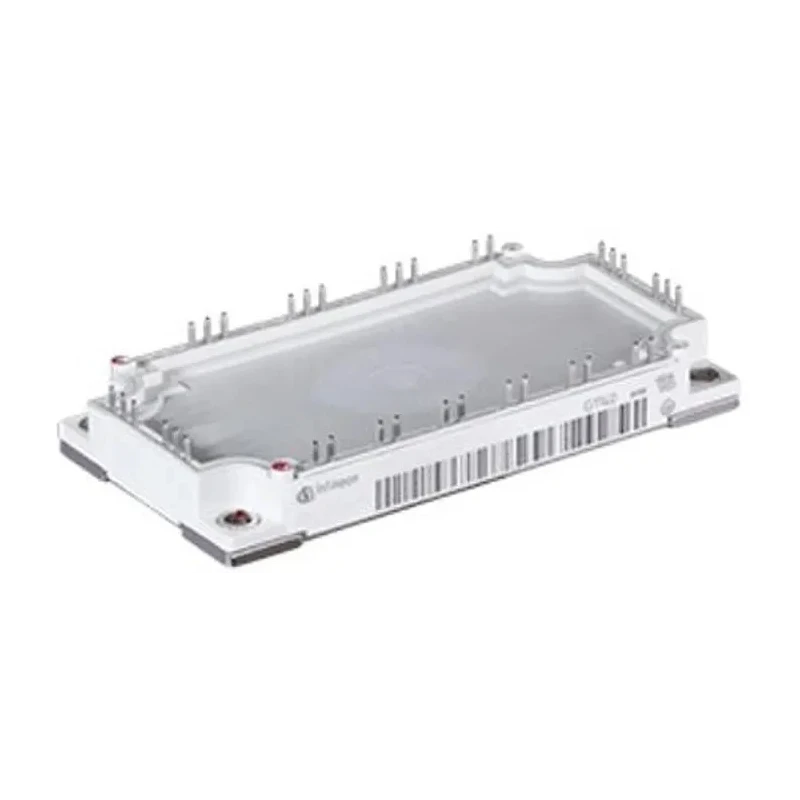

Infineon N-Channel IGBT Module 200A 1200V AG-ECONO3-4 Clamp FS150R12KE3BOSA1

Infineon FS150R12KE3BOSA1 is an advanced N-Channel IGBT Module engineered for robust performance in high-power industrial environments. With a maximum collector-emitter voltage of 1200V and continuous collector current capacity of 200A, this module is purpose-built for controlling and switching substantial currents in motor control and power conversion applications.

The module features a clamp mounting system, allowing secure thermal transfer to heatsinks and efficient integration within industrial power electronics assemblies. The AG-ECONO3-4 package simplifies electrical connections and provides reliable mechanical support, facilitating system integration and serviceability.

Its maximum power dissipation is rated at 700W, supporting elevated power handling and minimizing conduction losses, with a collector-emitter saturation voltage of 2.15V contributing to energy efficiency. The gate-emitter voltage limitation of 20V offers precise gate-drive control for safe and coordinated system operation. Operating across a wide ambient temperature range from -40°C to 125°C, this module is highly suited for environments where thermal stability and reliability are critical.

Infineon's FS150R12KE3BOSA1 complies with EN61140 and IEC61140 safety standards, affirming its suitability for applications where electrical safety and protection are essential. Typical uses include three-phase motor drive inverter units, industrial traction systems, variable-speed drives, and medium-voltage power converters. The module is also ideal for renewable energy inverters, grid interfaces, UPS systems, and servo drives requiring high current capability.

High-voltage 1200V withstand for heavy-duty industrial switching. Continuous 200A collector current for demanding power systems. Efficient 700W dissipation and low saturation voltage. AG-ECONO3-4 package and clamp mounting for easy integration.

Wide temperature range adapts to harsh environments. Compliance with international electrical safety standards.

This IGBT module provides reliable performance for industrial applications such as manufacturing, motor control, energy conversion, HVAC, and commercial power systems. Discover more specialized IGBT Modules and industrial semiconductor solutions in the Electronics & Electricals category, or browse the Infineon brand for advanced power devices and control modules on EnvMart.
