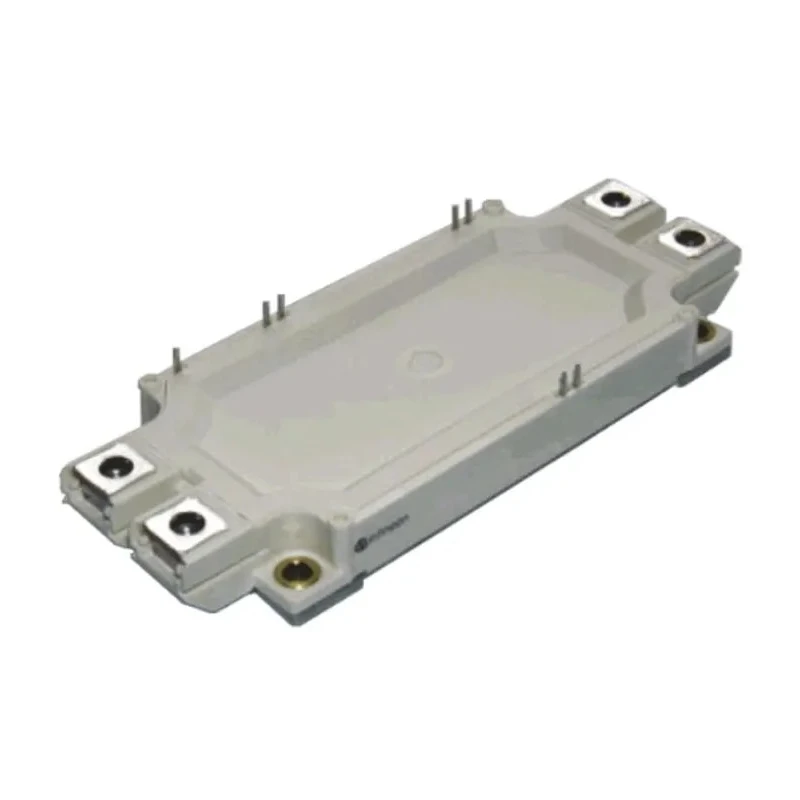

Infineon N-Channel IGBT Module ECONOD Package Clamp Mount 450 A 1200 V FF300R12ME4B11BPSA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 17mm |
| Length | 122.5mm |
| Model | FF300R12ME4B11BPSA1 |
| Width | 62.5mm |
| Mount Type | Clamp |
| Maximum Operating Temperature | 150°C |
| Package Type | ECONOD |
| Minimum Operating Temperature | -40°C |
| Pin Count | 11 |
| Maximum Continuous Collector Current Ic | 450A |
| Maximum Collector Emitter Voltage Vceo | 1200V |
| Maximum Collector Emitter Saturation Voltage VceSAT | 2.05V |
| Channel Type | N |
| Maximum Power Dissipation Pd | 1.6kW |
| Maximum Gate Emitter Voltage VGEO | 20 V |
| Package styles include | 62mm Modules, EasyPACK, EconoPACKTM2/EconoPACKTM3/EconoPACKTM4 |
Key Features
- Designed for fast switching applications up to 1 MHz frequency.
- Maximum power dissipation of 1.6 kW enabling efficient thermal management.
- Robust operation from -40°C to 150°C temperature range.
- Compact module with dimensions 122.5 mm length, 62.5 mm width, and 17 mm height.
- Maximum gate emitter voltage rating of 20 V ensures safe gate operation.
- Clamp mount style facilitates secure installation in power electronics systems.
- Suitable for industrial, commercial, and automotive power drive applications.
- N-Channel type suitable for hard and soft switching inverter circuits.
Product Description
Infineon FF300R12ME4B11BPSA1 is a high-performance N-Channel IGBT Module designed for demanding power electronics applications.
This module features a maximum continuous collector current rating of 450 A and a collector emitter voltage of 1200 V, making it ideal for medium to high power industrial use cases.
The ECONOD package with clamp mount ensures robust mechanical and electrical connections, suitable for integration in inverter systems, UPS, and industrial motor drives. The module supports fast switching speeds up to 1 MHz, enabling efficient operation in switch-mode power supplies and motor control applications.
Operating temperature range from -40°C to 150°C allows the device to function reliably in harsh industrial environments. Its low saturation voltage of 2.05 V reduces conduction losses, thereby improving overall system efficiency and thermal performance.
The physical dimensions of 122.5 mm length, 62.5 mm width, and 17 mm height make it compact and adaptable for various industrial power assemblies. Designed for fast switching applications up to 1 MHz frequency. Maximum power dissipation of 1.6 kW enabling efficient thermal management.
Robust operation from -40°C to 150°C temperature range. Compact module with dimensions 122.5 mm length, 62.5 mm width, and 17 mm height. Maximum gate emitter voltage rating of 20 V ensures safe gate operation. Clamp mount style facilitates secure installation in power electronics systems.
Suitable for industrial, commercial, and automotive power drive applications. N-Channel type suitable for hard and soft switching inverter circuits. Low collector emitter saturation voltage of 2.05 V improves efficiency.
Package style compatible with EconoPACK series modules. This Infineon IGBT Module is widely used in industrial automation, electrical drives, welding equipment, renewable energy inverter systems, and motor control solutions.
Explore the Infineon brand and related semiconductor modules at EnvMart for reliable power electronics components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous collector current rating of this IGBT module is 450 A.
The maximum collector emitter voltage for this model is 1200 V.
This module operates reliably within a temperature range of -40°C to 150°C.
The maximum power dissipation of this module is 1.6 kW.
The dimensions of this IGBT module are 122.5 mm in length, 62.5 mm in width, and 17 mm in height.
The clamp mount style facilitates secure installation in power electronics systems, ensuring robust mechanical and electrical connections.
The maximum gate emitter voltage rating for this module is 20 V.
This IGBT module is suitable for industrial, commercial, and automotive power drive applications.
The maximum collector emitter saturation voltage is 2.05 V, which helps reduce conduction losses.
This module uses the ECONOD package style, which is compatible with EconoPACK series modules.
The pin count for this model is 11 pins.
This IGBT module is designed for fast switching applications up to 1 MHz frequency.
