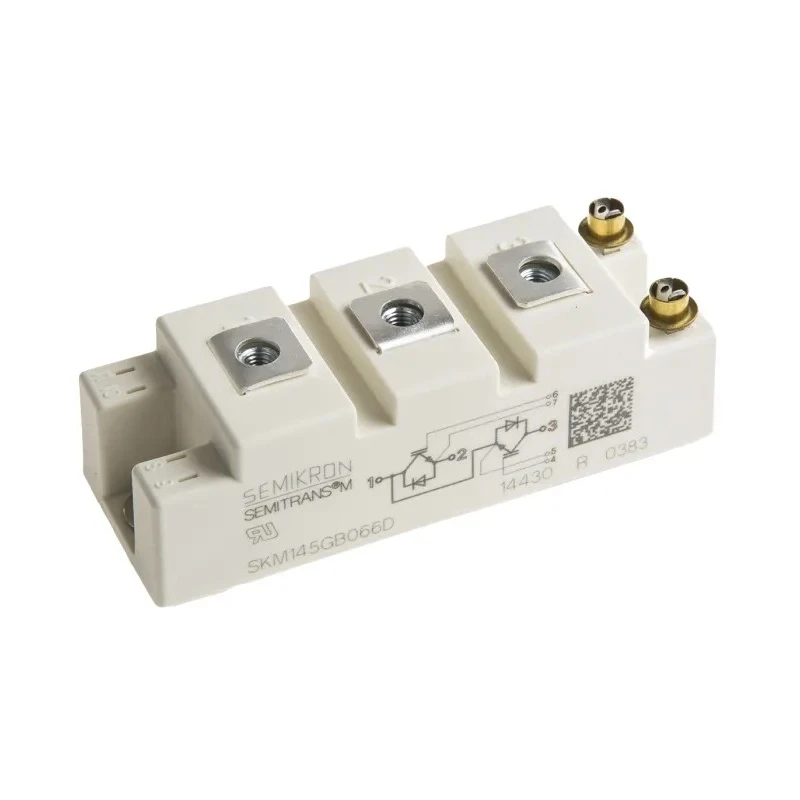

Semikron Danfoss N-Channel IGBT Module 195 A 600 V 7-Pin SEMITRANS Panel SKM145GB066D
Specifications
| Country of Origin | India |
|---|---|
| Brand | Semikron Danfoss |
| Height | 29.5mm |
| Length | 94mm |
| Model | SKM145GB066D |
| Width | 34mm |
| Mount Type | Panel |
| Series | SKM145GB066D |
| Maximum Operating Temperature | 175°C |
| Package Type | SEMITRANS |
| Minimum Operating Temperature | -40°C |
| Pin Count | 7 |
| Maximum Continuous Collector Current Ic | 195A |
| Maximum Collector Emitter Voltage Vceo | 600V |
| Maximum Collector Emitter Saturation Voltage VceSAT | 1.9V |
| Channel Type | N |
| Maximum Gate Emitter Voltage VGEO | 20 V |
| Number of Transistors | 2 |
Key Features
- Features dual series-connected IGBT devices in a compact SEMITOP package.
- Supports switching frequencies up to 12 kHz.
- Utilizes insulated copper baseplate with Direct Bonded Copper technology for efficient thermal management.
- Designed for use in AC inverter motor drives and uninterruptible power supplies.
- Maximum operating temperature of 175°C ensures reliable industrial performance.
- Panel mount type provides secure installation and integration.
- Operates effectively within a temperature range down to -40°C.
- Offers a maximum gate emitter voltage of 20 V and a low saturation voltage of 1.9 V.
Product Description
Semikron Danfoss SKM145GB066D is an advanced N-Channel Insulated Gate Bipolar Transistor (IGBT) module with a maximum continuous collector current of 195 A and a maximum collector emitter voltage rating of 600 V. The dual transistor configuration arranged in a half-bridge provides high-efficiency power switching suitable for demanding industrial applications.
This IGBT module features a compact SEMITOP package type with 7 pins and is designed for panel mounting. It supports switching operation frequencies up to 12 kHz, making it ideal for applications such as AC inverter motor drives, uninterruptible power supplies (UPS), and general power electronics.
Thermal management is enhanced by an insulated copper baseplate using Direct Bonded Copper technology, allowing for efficient heat dissipation and ensuring stable operation up to a maximum temperature of 175°C. The device maintains reliable operation in harsh environments with a minimum operating temperature of -40°C.
The maximum saturation voltage across the collector-emitter is 1.9 V, and the maximum gate-emitter voltage is limited to 20 V to ensure safe and efficient switching. The module dimensioning of 94 mm length, 34 mm width, and 29.5 mm height facilitates compact power module integration in electronic assemblies.
Features dual IGBT transistors connected in series within a SEMITOP package. Supports switching frequencies suitable for advanced power conversion. Insulated copper baseplate with Direct Bonded Copper technology for optimized thermal performance.
Panel mount design for secure and reliable installation in industrial equipment. Wide operating temperature range from -40°C to 175°C. Compact footprint with precise mechanical dimensions for flexible design. Robust electrical ratings ensure device suitability for motor drives and power supply systems.
This IGBT Module is a vital component in power electronics and industrial automation sectors, providing high current and voltage handling capabilities. Its efficient switching and robust construction make it suitable for manufacturing, HVAC systems, renewable energy inverters, and other industrial applications requiring reliable power control.
Explore more power semiconductor modules in the Electronics & Electricals category at EnvMart for advanced industrial quality components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous collector current for this IGBT module is 195 A.
The maximum collector emitter voltage rating is 600 V.
This model operates effectively within a temperature range from -40°C to 175°C.
The maximum collector emitter saturation voltage is 1.9 V.
This IGBT module supports panel mounting for secure installation.
The SEMITRANS package has 7 pins.
The maximum gate emitter voltage is limited to 20 V.
This model is designed for applications such as AC inverter motor drives and uninterruptible power supplies (UPS).
It utilizes an insulated copper baseplate with Direct Bonded Copper technology for efficient thermal management.
The dimensions of this model are 94 mm in length, 34 mm in width, and 29.5 mm in height.
This IGBT module includes 2 transistors connected in a dual configuration.
This model supports switching frequencies up to 12 kHz.
