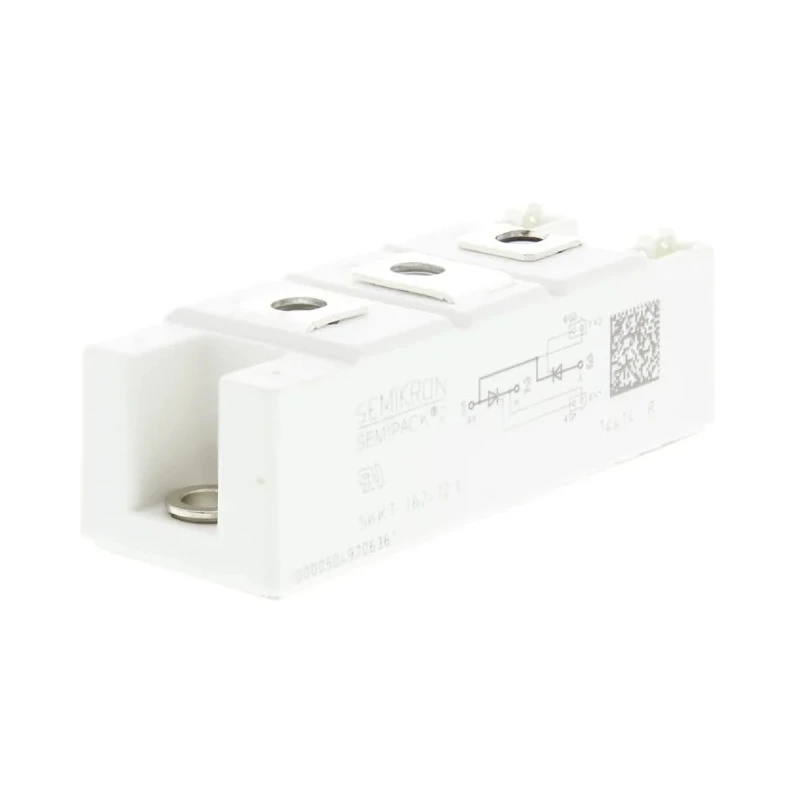

Semikron Danfoss Dual Thyristor Module SEMIPACK2 1200 V, 156 A Rated Current, 150 mA Gate Trigger Current SKKT 162/12 E

Semikron Danfoss SKKT 162/12 E is a dual thyristor module designed with SEMIPACK2 packaging, rated for 1200 V repetitive peak reverse voltage and 156 A average on-state current. It integrates silicon-controlled rectifiers (SCR) suitable for high-power switching and control applications.

The thyristor module features a panel mount type with seven pins, facilitating ease of installation in industrial electronic circuits. It supports a maximum surge current of 5.4 kA, ensuring robustness against transient currents.

Operating temperature ranges from -40°C to 125°C, making it suitable for harsh environments common in industrial, manufacturing, and power conversion systems. The gate trigger current is limited to 150 mA with a maximum trigger voltage of 2 V, offering reliable gate control.

This device finds extensive use in applications such as battery chargers, welders, plating equipment, regulated power supplies, and temperature or speed control circuits due to its stable switching characteristics and durability.

The dual Thyristor Module is encapsulated with an electrically isolated base plate, ensuring safety and reliability in panel mount installations. It complies with UL recognized component standards, ensuring quality and safety in industrial usage.

The module type is SEMIPACK2 dual thyristor. The device is designed for industrial electronics requiring high voltage and current handling. Seven-pin configuration enables straightforward connectivity in power circuits. Thyristor SCR technology provides efficient switch control capabilities.

Robust temperature and surge current ratings allow heavy industrial usage. Electrically isolated base plate enhances installation safety. Applications include battery chargers, welders, and speed/temperature control systems.
