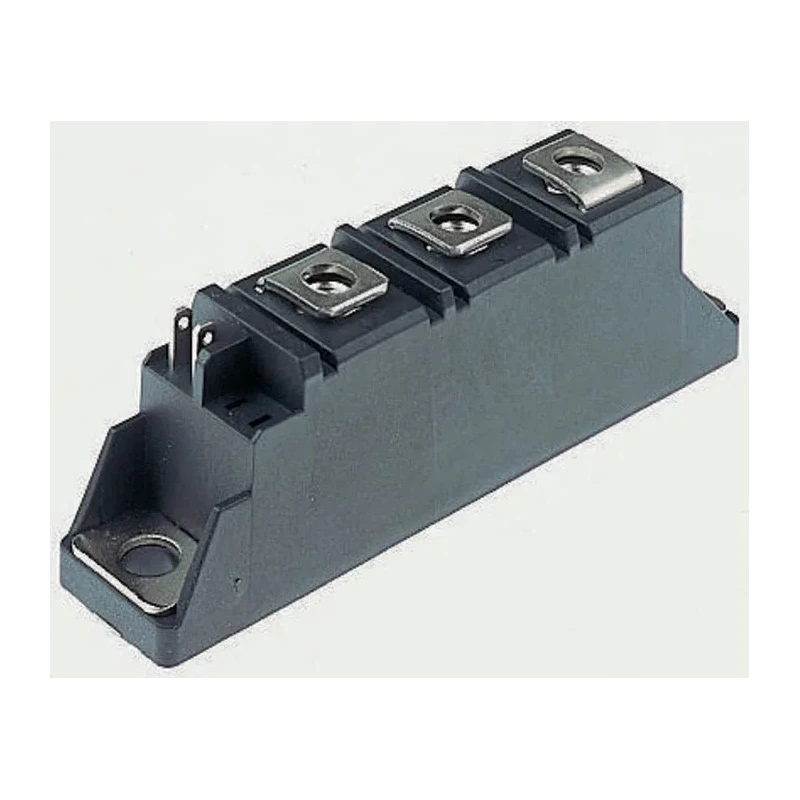

Vishay Dual Thyristor Module 1400 V 2 kA 95 A 270 mA 1.73 V TO-240AA 7-Pin VS-VSKT91/14
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 30mm |
| Length | 92mm |
| Model | VS-VSKT91/14 |
| Width | 22.6mm |
| Mount Type | Panel |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-240AA |
| Pin Count | 7 |
| Rated Average On-State Current Irms | 95A |
| Repetitive Peak Reverse Voltage VDRM | 1400V |
| Surge Current Rating | 2kA |
| Maximum Gate Trigger Current Igt | 270mA |
| Maximum Holding Current Ih | 250mA |
| Maximum Gate Trigger Voltage Vgt | 4V |
| Peak On-State Voltage | 1.73V |
| Repetitive Peak Off-State Current | 15mA |
Key Features
- This module has a rated average on-state current of 95 A.
- Features a low peak on-state voltage of 1.73 V for efficient operation.
- Equipped with a 7-pin TO-240AA package suited for panel mounting.
- Maximum gate trigger current is rated at 270 mA, ensuring reliable switching.
- Maximum operating temperature is 125°C for robustness in industrial environments.
- The module includes a maximum holding current of 250 mA for stable conduction.
- Designed without standards/approvals but suitable for various industrial power control applications.
Product Description
Vishay VS-VSKT91/14 is a dual thyristor module designed to provide high performance power control with a repetitive peak reverse voltage rating of 1400 V and surge current capability of 2 kA. This module comes in a TO-240AA 7-pin package with a panel mount type, facilitating integration into various industrial systems.
With a rated average on-state current of 95 A and a low peak on-state voltage of 1.73 V, this Thyristor Module ensures efficient power switching and minimal losses. It includes a maximum gate trigger current of 270 mA and a maximum holding current of 250 mA to maintain reliable turn-on and conduction characteristics.
Operating up to a maximum temperature of 125°C, the VS-VSKT91/14 module is built for demanding applications such as battery chargers, welding machinery, plating equipment, regulated power supplies, and temperature or speed control circuits in industrial, manufacturing, and laboratory environments.
The compact physical dimensions of 92 mm length, 30 mm height, and 22.6 mm width ensure space-efficient mounting. The module's electrically isolated base plate enhances thermal management and system safety.
Rated average on-state current: 95 A. Repetitive peak reverse voltage: 1400 V. Surge current rating: 2 kA. Maximum gate trigger current: 270 mA. Maximum holding current: 250 mA. Maximum operating temperature: 125°C. 7-pin TO-240AA package suitable for panel mounting.
Compact dimensions: 92 x 30 x 22.6 mm.
This module is ideal for industrial power control and switching applications requiring robust and efficient performance. Explore more Vishay semiconductor components and modules on EnvMart for comprehensive power electronic solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rated average on-state current of this module is 95 A.
The maximum repetitive peak reverse voltage for this model is 1400 V.
This thyristor module has a surge current capability of 2 kA.
The maximum gate trigger current is rated at 270 mA.
The physical dimensions of this module are 92 mm in length, 30 mm in height, and 22.6 mm in width.
The maximum operating temperature for this module is 125°C.
This module uses a TO-240AA package type, which is suitable for panel mounting.
The peak on-state voltage of this thyristor module is 1.73 V.
The maximum holding current for this model is 250 mA.
This module is suitable for various industrial power control applications such as battery chargers, welding machinery, and regulated power supplies.
The TO-240AA package has 7 pins.
The module is designed without specific standards or approvals but is suitable for various industrial applications.
