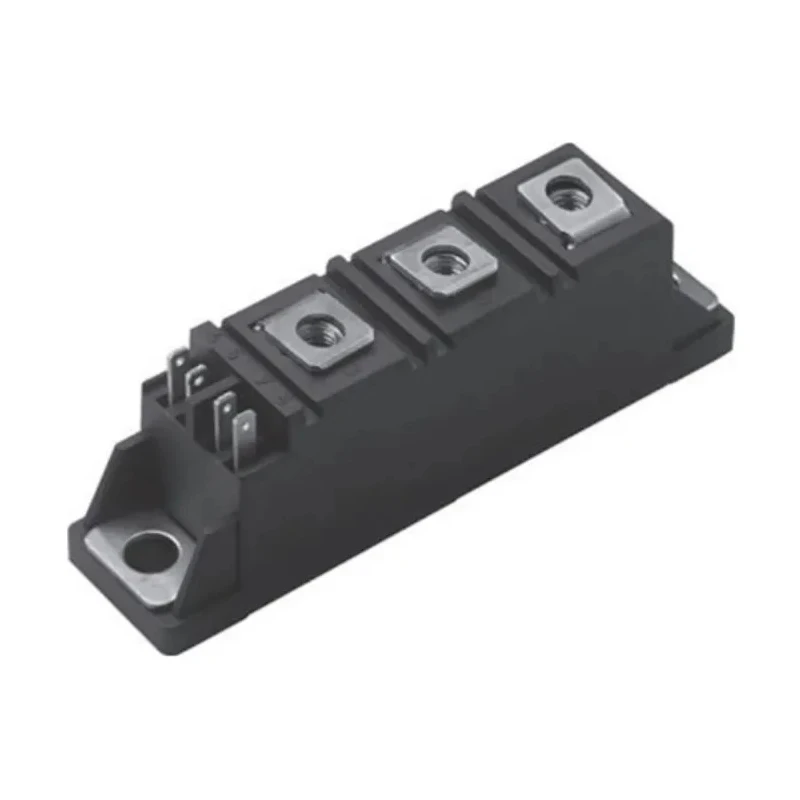

Vishay Thyristor Module 1200 V 2 kA 95 A 270 mA 1.73 V TO-240AA 7-Pin VS-VSKT91/12

Vishay VS-VSKT91/12 is a high-performance Thyristor Module designed for industrial and electronic applications requiring robust power control. This module supports a repetitive peak reverse voltage of 1200 V and is capable of handling surge currents up to 2 kA, highlighting its capacity for demanding environments.

The device features a TO-240AA encapsulated package with 7 pins, enabling straightforward panel mounting and integration into power electronic circuits. Its maximum gate trigger current of 270 mA and gate trigger voltage of 4 V afford precise gating characteristics essential for reliable switching functions.

Rated for an average on-state current of 95 A, this thyristor module exhibits excellent electrical performance, further supported by a low peak on-state voltage of 1.73 V which reduces conduction losses. The module's thermal design allows operation at temperatures up to 125°C, making it suitable for various industrial applications such as battery chargers, welding machines, plating equipment, regulated power supplies, and temperature and speed control systems.

Measuring 92 mm in length, 22.6 mm in width, and 30 mm in height, the compact footprint supports flexible installation in constrained spaces. The module does not hold any specific certifications but complies with industrial quality manufacturing standards upheld by Vishay Semiconductor.

Manufactured in India, the VS-VSKT91/12 Thyristor Module is ideally suited for use in industrial automation, power regulation, and electronic component assemblies demanding high reliability and durability.

Encapsulated module in TO-240AA package with 7 pins. High repetitive peak reverse voltage rating of 1200 V. Surge current handling capability of 2,000 A for transient conditions. Maximum operating temperature rated at 125°C ensures thermal stability.

Efficient conduction with peak on-state voltage of 1.73 V. Panel mounting design facilitates easy installation and heat dissipation. Compatible with applications including battery chargers and welders. Precision gate control with 270 mA trigger current and 4 V trigger voltage.

Compact dimensions enhance integration into electronic systems. Manufactured in India maintaining stringent quality controls.

For engineers and technicians seeking reliable Thyristor Modules, Vishay's VS-VSKT91/12 offers a balance of performance, durability, and ease of use. Browse the full Vishay range and related semiconductor components on EnvMart for comprehensive power electronics solutions.
