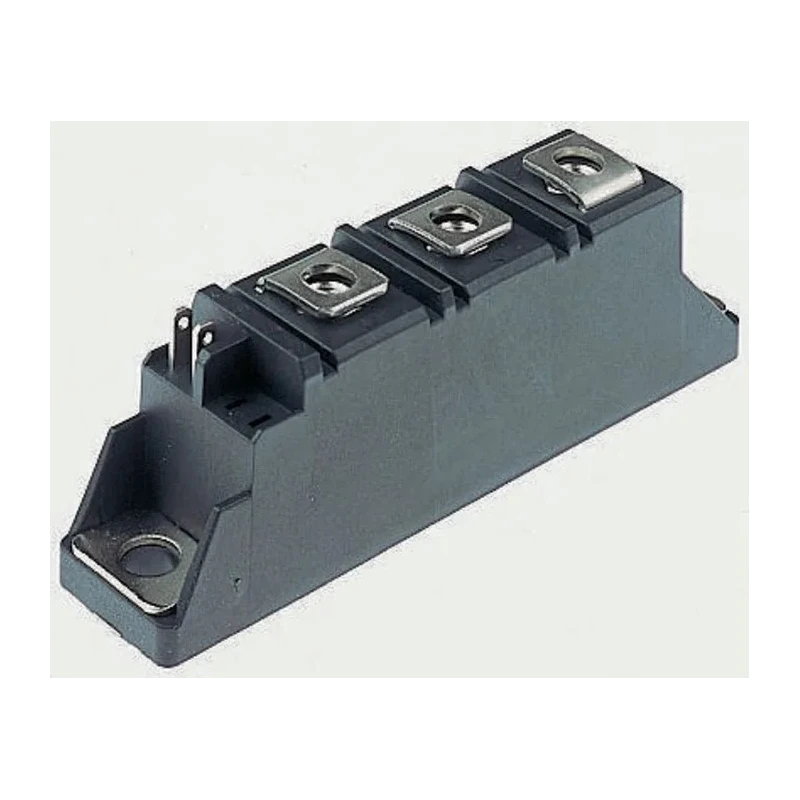

IXYS Thyristor Module 2200 V 1.8 kA 104 A 100 mA 1.74 V TO-240AA 5-Pin MCD94-22IO1B

The IXYS MCD94-22IO1B is a high-performance thyristor module rated for 2200 V repetitive peak reverse voltage and 1.8 kA surge current. This module supports an average on-state current of 104 A, making it ideal for demanding power electronics applications requiring reliable switching and conduction.

Encapsulated within a TO-240AA 5-pin package, the module features a panel mount design with a direct copper bonding (DCB) ceramic base for excellent thermal management and electrical isolation. It has a compact form factor with measured dimensions of 92 mm length, 30 mm height, and 20.8 mm width, suitable for integration into constrained industrial setups.

The maximum operating temperature is rated at 125°C, allowing the device to maintain performance under elevated thermal conditions. The maximum gate trigger current of 100 mA and holding current of 150 mA provide controlled triggering and stable conduction, while a peak on-state voltage drop of 1.74 V ensures efficient power handling.

This thyristor module is designed primarily for mains voltage rectification (50/60 Hz) in applications such as battery chargers, welding machines, plating equipment, regulated power supplies, and temperature or speed control circuits. The encapsulated module with an electrically isolated base plate enhances safety and durability in industrial environments.

Although the module does not comply with automotive standards, it is UL recognized for quality assurance. Its robust electrical and physical characteristics make it suitable for various industrial and electrical semiconductor applications.

Rated average on-state current of 104 A. Repetitive peak reverse voltage rating of 2200 V. Surge current rating of 1.8 kA supports transient events. Panel mount TO-240AA 5-pin package ensures easy integration. Maximum gate trigger current 100 mA and holding current 150 mA.

Maximum operating temperature of 125°C for durability. Compact dimensions support diverse mounting requirements. Peak on-state voltage of 1.74 V for efficient conduction. Electrically isolated base plate for safety and improved thermal management.

Ideal for battery chargers, welding, plating, power supplies, and control circuits. Explore more semiconductor and Thyristor Modules at EnvMart for your industrial and electronic component needs.
