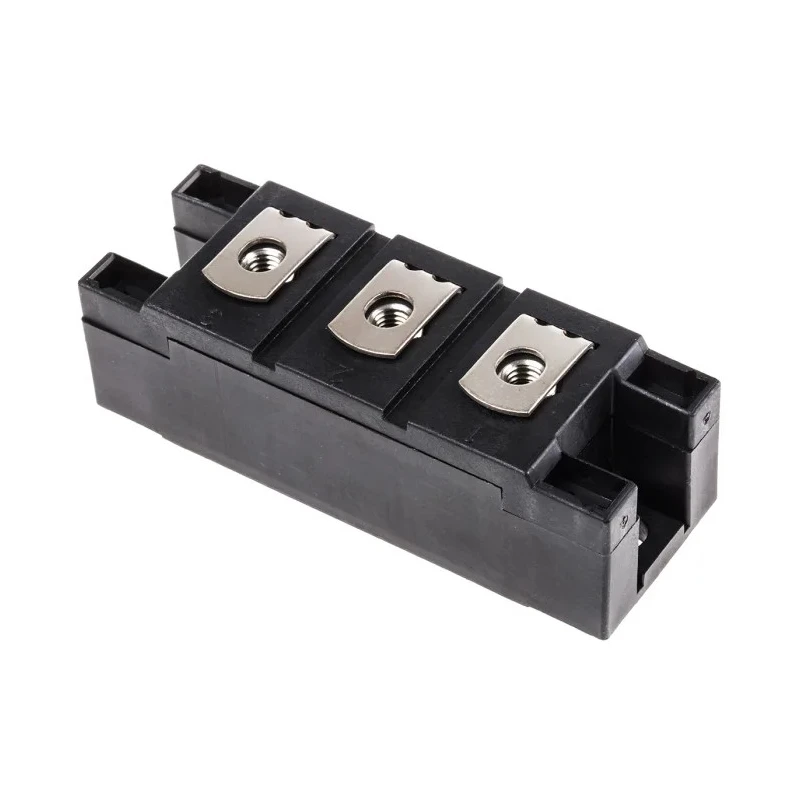

IXYS General Purpose 1600 V 190 A Diode Panel Mount 3-Pin Y4-M6 MDD172-16N1

The IXYS MDD172-16N1 is a general purpose diode designed for power rectification and control in industrial and electronic equipment. Featuring a maximum continuous forward current rating of 190 amperes and a peak reverse repetitive voltage of 1600 volts, it offers robust performance for high demanding applications. The module comes with a 3-pin Y4-M6 package type specifically designed for panel mounting to facilitate easy installation and secure mechanical connections.

This diode module is capable of withstanding a peak non-repetitive forward surge current of 7.13 kiloamperes, making it suitable for transient load conditions often encountered in power electronics and switching circuits. Operating over a wide temperature range from -40 degrees Celsius to 150 degrees Celsius, it maintains reliability in harsh environments.

With a maximum forward voltage drop of only 1.15 volts, the MDD172-16N1 ensures efficient conduction with minimal power loss. The compact module dimensions of 94 mm length, 34 mm width, and 30 mm height optimize space utilization in assemblies.

This diode features a low peak reverse current of 20 milliamperes, ensuring stable reverse blocking capabilities. It does not conform to any special automotive standards but is UL recognized as a compliant component, assuring quality and safety.

Applications for this IXYS diode module include industrial motor drives, power supplies, welding equipment, and other power semiconductor circuits requiring reliable high-current rectification. Its general purpose nature and panel mount design allow flexible integration into various electronic and electrical systems.

Designed for reliable general purpose rectification applications. Constructed in a robust Y4-M6 package suitable for panel mounting. Supports high peak non-repetitive forward surge current of 7.13 kA for transient conditions.

Operates reliably within a temperature range of -40°C to 150°C. Low maximum forward voltage of 1.15 V ensures efficient conduction. Compact dimensions with length 94 mm, width 34 mm, and height 30 mm. Provides a peak reverse current of 20 mA maintaining diode integrity.

Ideal for industrial, electronic, and power control applications. UL recognized component ensuring quality and safety standards compliance. Explore our extensive range of semiconductor Diode Modules and related components to find the best fit for your industrial and electronic projects.
