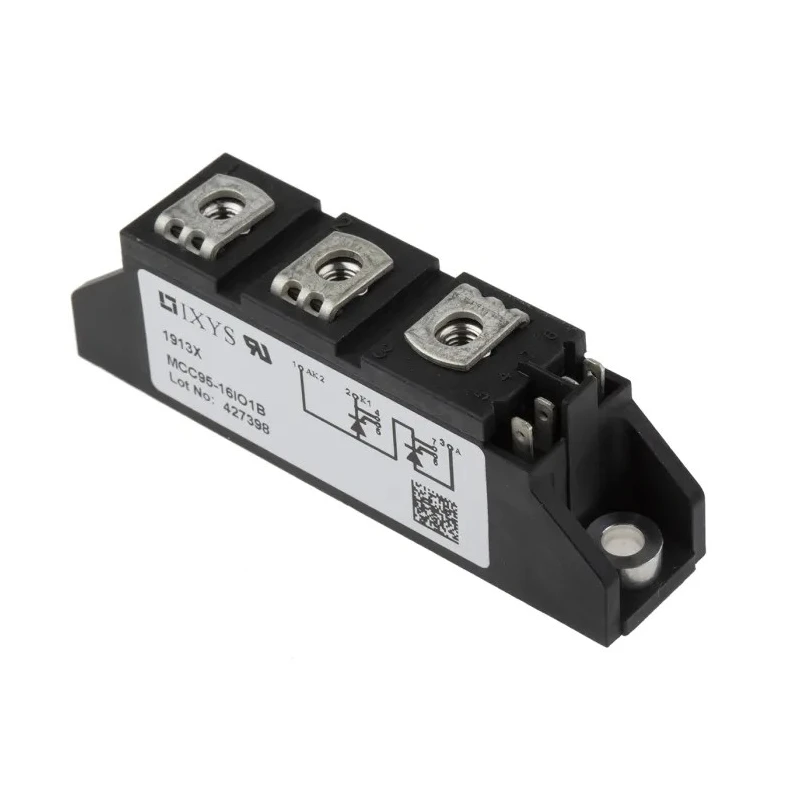

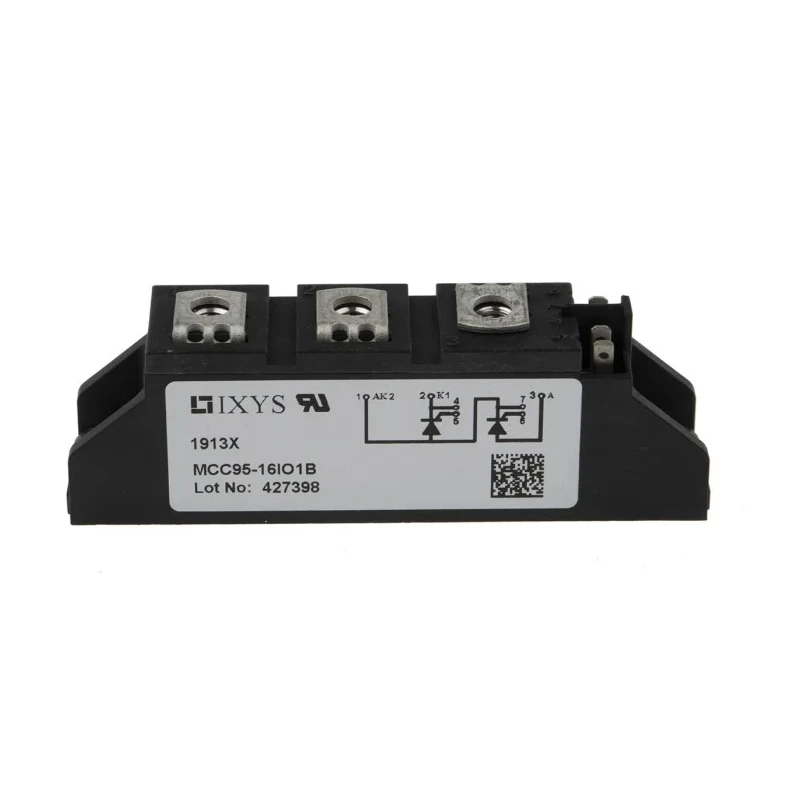

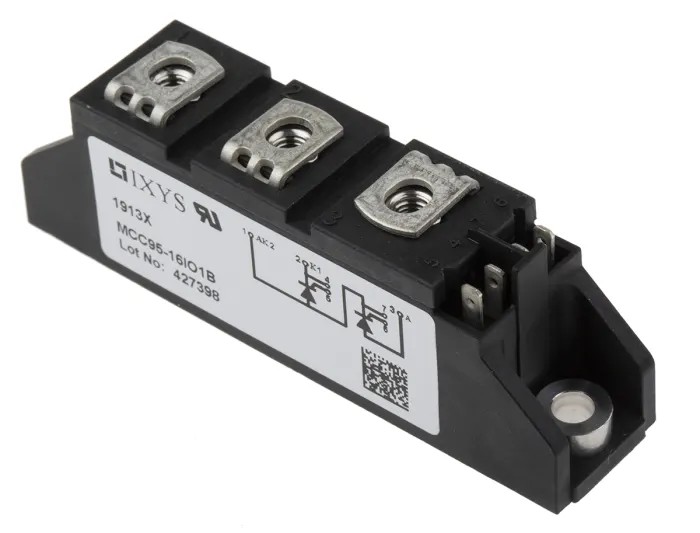

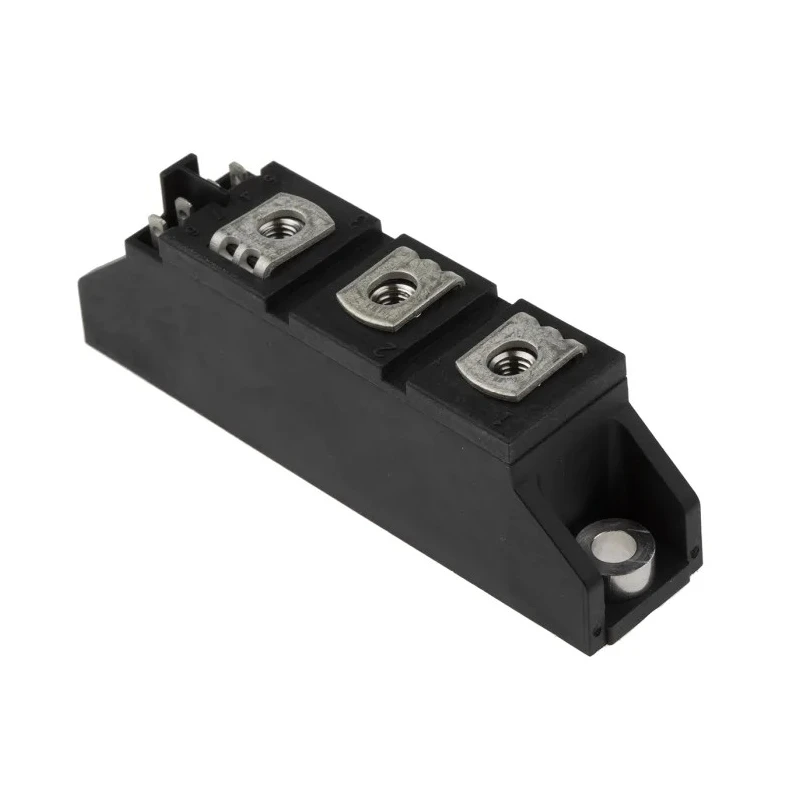

IXYS Dual Thyristor Module 1600 V 2.4 kA 116 A 150 mA 1.5 V TO-240AA 7-Pin MCC95-16IO1B

IXYS MCC95-16IO1B is a dual thyristor module designed for high power electronic applications. It features a repetitive peak reverse voltage of 1600 V and a surge current rating of 2.4 kA, making it ideal for demanding industrial environments such as battery chargers, welding equipment, and plating machinery.

This device operates with a rated average on-state current of 116 A and a maximum operating temperature of 125°C, ensuring reliable operation in harsh conditions. The module uses a TO-240AA encapsulated package with 7 pins and panel mount installation, providing secure and efficient mounting in electrical systems.

The MCC series dual series thyristors by IXYS employ silicon-controlled rectifier technology with four alternating layers of N and P-type materials, acting as bistable switches that conduct when triggered at the gate and maintain conduction under forward bias.

Technical features include a maximum gate trigger current of 150 mA, maximum gate trigger voltage of 2.5 V, and maximum holding current of 200 mA. The module's peak on-state voltage is rated 1.5 V for efficient energy conduction with minimal losses.

Ensures strong surge capacity with 2.4 kA surge current rating. Robust panel mounting with TO-240AA 7-pin package. Operates reliably at temperatures up to 125°C. Electrically isolated base plate improves operational safety.

German origin guarantees manufacturing precision and quality assurance. Optimized for power control in welding, charging, and speed applications. Small form factor with dimensions 92 mm length, 30 mm height, and 20.8 mm width.

This IXYS dual thyristor module fits a broad spectrum of industrial, commercial, and manufacturing environments requiring high current and voltage switching capabilities. Explore more semiconductor and Thyristor Modules to find the ideal component for your power electronics projects at EnvMart.
