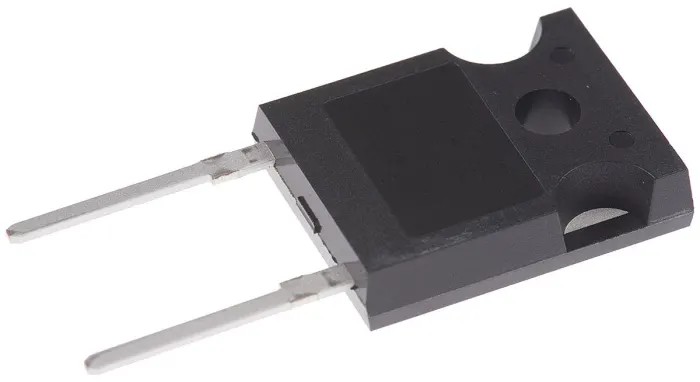

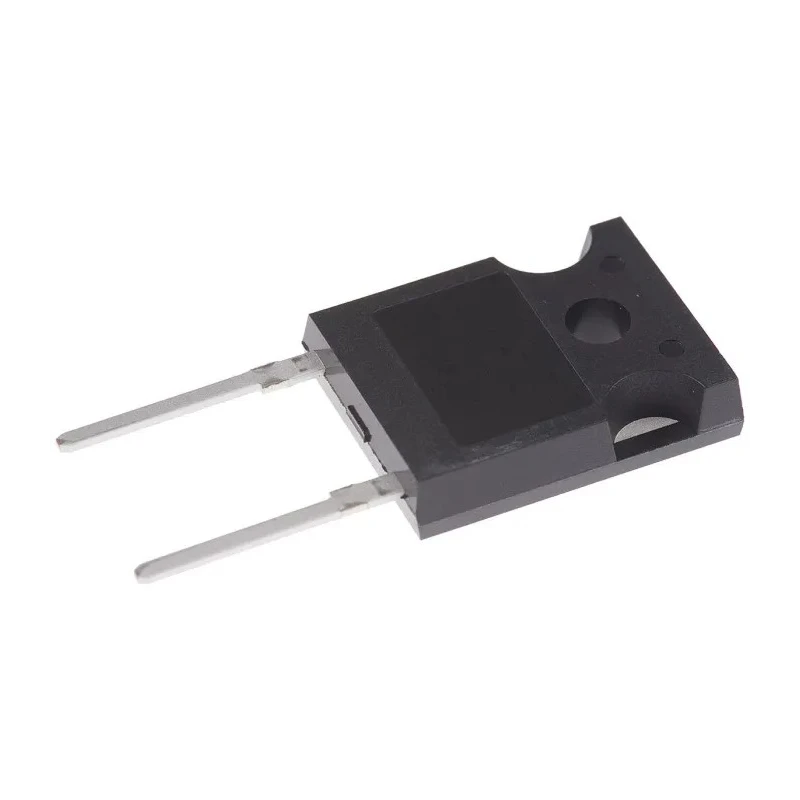

IXYS 1200 V 109 A Switching Diode Through Hole Package TO-247AD DSEI120-12A
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | IXYS |
| Height | 21.46mm |
| Length | 16.26mm |
| Model | DSEI120-12A |
| Width | 5.3mm |
| Mount Type | Through Hole |
| Series | DSEI120-12A |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-247AD |
| Minimum Operating Temperature | -40°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 109A |
| Peak Reverse Repetitive Voltage Vrrm | 1200V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 3mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 660A |
| Maximum Forward Voltage Vf | 1.8V |
| Peak Reverse Recovery Time trr | 60ns |
Key Features
- Maximum continuous forward current of 109 A.
- Peak reverse repetitive voltage of 1200 V.
- Through hole mount type for secure PCB attachment.
- Peak non-repetitive forward surge current rating of 660 A.
- Maximum forward voltage drop of 1.8 V for efficiency.
- Operating temperature range from -40°C to 150°C.
- Peak reverse recovery time of 60 ns for fast switching.
- Single diode configuration with 2 pins.
Product Description
IXYS DSEI120-12A is a high-performance switching diode designed for power electronics applications requiring high voltage and current handling capabilities. Featuring a through-hole mount in a TO-247AD package, it is suitable for industrial, commercial, and automotive electrical circuits.
This diode supports a maximum continuous forward current of 109 A and withstands a peak reverse repetitive voltage of 1200 V, ensuring reliable operation in demanding environments. The maximum forward voltage drop is 1.8 V, optimizing efficiency of the power system.
Designed for fast switching applications, the diode has a peak reverse recovery time of 60 ns. It also supports a peak non-repetitive forward surge current of 660 A to handle transient conditions effectively.
The operating temperature range from -40°C to 150°C enables use in harsh thermal conditions, supporting rugged industrial and automotive applications. Its compact size with dimensions 16.26 mm length, 5.3 mm width, and 21.46 mm height allow ease of installation in constrained spaces.
With a single diode configuration and 2-pin connection, this IXYS diode is manufactured in Germany under strict quality standards, assuring new condition and high reliability. Its robust design makes it ideal for power supply protection, rectification, and switching circuits in electrical manufacturing, renewable energy systems, and industrial automation.
Maximum continuous forward current of 109 A. Peak reverse repetitive voltage of 1200 V. Through hole mount for secure PCB installation. Peak surge current rating of 660 A. Maximum forward voltage of 1.8 V for efficient conduction.
Wide operating temperature range from -40°C to 150°C. Fast peak reverse recovery time of 60 ns for switching applications. Compact TO-247AD package dimensions for integration. Single diode with 2-pin configuration. Manufactured in Germany ensuring high quality and reliability.
For high-performance semiconductor diode requirements, explore more options in the Schottky Diodes and Rectifiers category at EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 109 A.
This model has a peak reverse repetitive voltage rating of 1200 V.
It uses a through-hole mount type for secure PCB attachment.
The maximum forward voltage drop for this diode is 1.8 V.
The peak non-repetitive forward surge current rating is 660 A.
The operating temperature range is from -40°C to 150°C.
The peak reverse recovery time is 60 ns, suitable for fast switching applications.
The dimensions of the TO-247AD package are 16.26 mm in length, 5.3 mm in width, and 21.46 mm in height.
This diode has a 2-pin configuration.
This diode is manufactured in Germany.
It uses a single diode configuration.
This diode is classified as a switching rectifier type.
