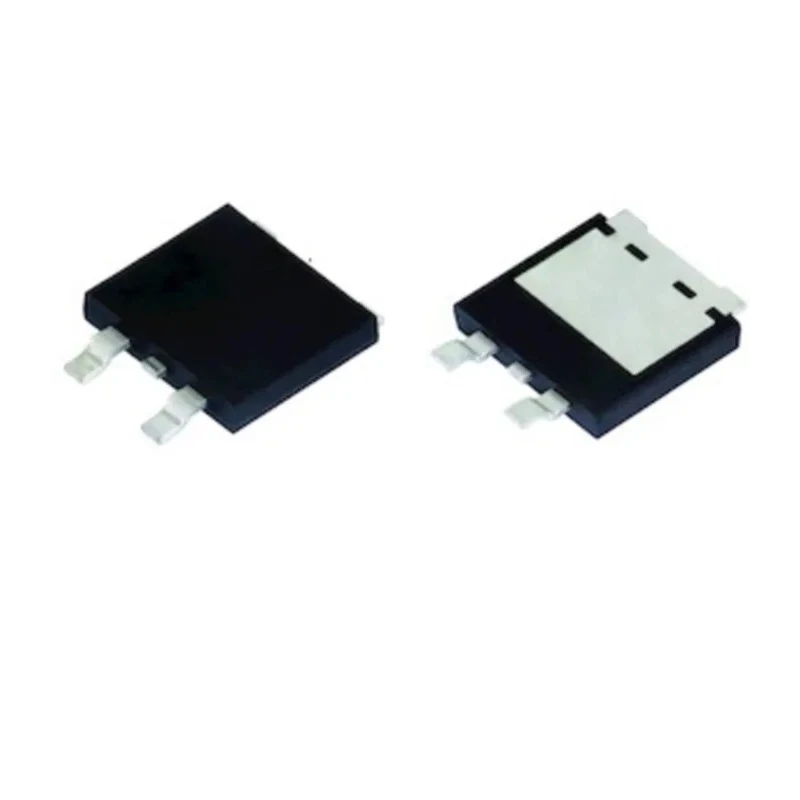

Vishay Surface Mount General Purpose Diode 600 V 20 A TO-263AC Package SE20DLJ-M3/I

Free Delivery in India | Lowest Global Shipping Charges

Vishay Surface Mount General Purpose Diode 600 V 20 A TO-263AC Package SE20DLJ-M3/I

Name: Vishay Surface Mount General Purpose Diode 600 V 20 A TO-263AC Package SE20DLJ-M3/I
Brand: Vishay
SKU: 412516
Price: 20.22 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand Vishay Condition New

Specifications

Country of Origin	China
Brand	Vishay
Height	1.8mm
Length	12.93mm
Model	SE20DLJ-M3/I
Width	10.2mm
Mount Type	Surface
Maximum Operating Temperature	175°C
Package Type	TO-263AC
Minimum Operating Temperature	-55°C
Pin Count	3
Maximum Continuous Forward Current If	20A
Peak Reverse Repetitive Voltage Vrrm	600V
Diode Configuration	Single
Rectifier Type	General Purpose
Peak Reverse Current Ir	100μA
Peak Non-Repetitive Forward Surge Current Ifsm	200A
Maximum Forward Voltage Vf	1V
Peak Reverse Recovery Time trr	330ns

Key Features

Standard TO-263AC package ensuring compatibility with automated assembly.
Maximum continuous forward current rating of 20 A for robust performance.
Peak reverse repetitive voltage of 600 V suitable for high voltage applications.
Low forward voltage drop of 1 V minimizing power loss.
Peak reverse current limited to 100 μA contributing to low leakage.
Wide operating temperature range from -55°C to 175°C for industrial use.
Peak non-repetitive forward surge current capability of 200 A for surge immunity.
Fast peak reverse recovery time of 330 ns supporting high frequency switching.

Product Description

Vishay SE20DLJ-M3/I is a high-performance surface mount general purpose diaphragm diode engineered to operate at a maximum continuous forward current of 20 A and a peak reverse repetitive voltage of 600 V. The device uses the TO-263AC package which is ideal for automated PCB assembly in various industrial electronic designs.

This diode is designed for applications including power supply rectification, polarity protection, and freewheeling in DC/DC converters and high-frequency inverters. Its low forward voltage drop of 1 V reduces conduction losses, improving overall system efficiency. The peak reverse current is tightly controlled to 100 μA, reducing leakage and maintaining signal integrity.

The device operates reliably in an extensive temperature range from -55°C minimum to 175°C maximum, suitable for automotive and industrial environments. Its fast peak reverse recovery time of 330 ns enables efficient switching in power electronics applications.

Dimensionally, the diode measures 12.93 mm in length, 10.2 mm in width, and 1.8 mm in height, optimizing space on densely populated PCBs. The peak non-repetitive forward surge current rating of 200 A allows it to withstand transient overloads during switching events or fault conditions.

Manufactured in China under Vishay's quality assurance program, this diode meets the demanding needs of commercial, automotive, and industrial markets. Standard TO-263AC package for surface mounting and automated assembly.

20 A continuous forward current ensuring robust conduction. 600 V peak reverse repetitive voltage rating for high voltage tolerance. Low 1 V forward voltage drop for efficient circuit operation. 100 μA peak reverse current minimizing leakage losses.

Operating temperature range from -55°C to 175°C for broad environmental use. 200 A peak non-repetitive forward surge current for transient resilience. Fast reverse recovery time of 330 ns for high-frequency switching. Compact size optimizes PCB real estate.

Select Vishay diodes for reliable and efficient power management in industrial and commercial electronic systems. Browse more components within Vishay and Schottky diode categories on EnvMart for comprehensive solutions.
