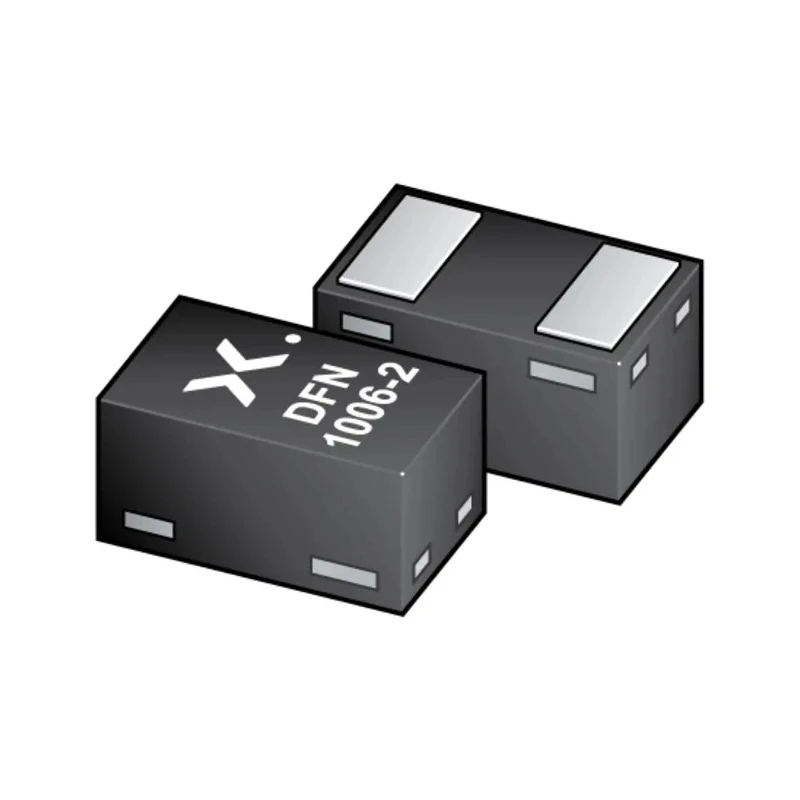

Nexperia 30 V 100 mA Low Forward Voltage MEGA Schottky Barrier Diode Surface Mount SOD-882 RB521CS30L,315

Free Delivery in India | Lowest Global Shipping Charges

Nexperia 30 V 100 mA Low Forward Voltage MEGA Schottky Barrier Diode Surface Mount SOD-882 RB521CS30L,315

Name: Nexperia 30 V 100 mA Low Forward Voltage MEGA Schottky Barrier Diode Surface Mount SOD-882 RB521CS30L,315
Brand: Nexperia
SKU: 414557
Price: 0.08 USD
Availability: InStock



Category Diode Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	0.6mm
Length	1mm
Model	RB521CS30L,315
Width	0.5mm
Mount Type	Surface
Series	RB521CS30L
Maximum Operating Temperature	150°C
Package Type	SOD-882
Minimum Operating Temperature	-65°C
Pin Count	2
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	100mA
Peak Reverse Repetitive Voltage Vrrm	30V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	10μA
Peak Non-Repetitive Forward Surge Current Ifsm	3A
Average forward current	IF(AV) ≤ 100 mA
Reverse voltage	VR ≤ 30 V
Low forward voltage	VF ≤ 350 mV
Low reverse current	IR ≤ 10 μA
onsemi 30 V 200 mA Diode Schottky 2-Pin SOD-923 NSR0230P2T5GBrand	onsemi

Key Features

This diode has a maximum continuous forward current of 100 mA.
It supports a peak reverse repetitive voltage of 30 V.
Low forward voltage drop with VF ≤ 350 mV enhances efficiency.
Extremely low reverse current of IR ≤ 10 μA reduces power loss.
AEC-Q101 qualified for automotive applications.
The diode features a compact 2-pin SOD-882 package with dimensions 1mm x 0.6mm x 0.5mm.
The operating temperature range is from -65°C to 150°C.
Suitable for switch mode power supplies, reverse polarity protection, and low power consumption circuits.

Product Description

Nexperia RB521CS30L,315 is a 30 V, 100 mA MEGA Schottky barrier rectifier diode encapsulated in a leadless ultra small SOD-882 surface-mounted device (SMD) plastic package. Its design integrates a guard ring for stress protection, providing high reliability and efficiency in various electronic applications.

The device features a low forward voltage drop (VF ≤ 350 mV) and low reverse leakage current (IR ≤ 10 μA), making it ideal for power-efficient circuits. It supports a continuous forward current of 100 mA and can withstand a peak reverse voltage of 30 V.

This Schottky diode is AEC-Q101 qualified, ensuring automotive-grade reliability. It has an operating temperature range from -65°C minimum to 150°C maximum, suitable for demanding industrial and automotive environments.

The compact 2-pin SOD-882 package measures 1mm in length, 0.6mm in height, and 0.5mm in width, allowing space-saving PCB designs. Its leadless construction offers excellent thermal properties and simplifies assembly in modern manufacturing.

Typical applications include switch mode power supplies (SMPS), DC to DC conversion, low voltage rectification, reverse polarity protection, and low power consumption circuits. Maximum continuous forward current of 100 mA.

Peak reverse repetitive voltage of 30 V. Low forward voltage ensures high efficiency. Low reverse current minimizes power loss. AEC-Q101 automotive qualification. Compact leadless SOD-882 package for space-constrained designs.

Wide operating temperature range of -65°C to 150°C. Reliable stress protection with integrated guard ring.

This product is ideal for industrial, automotive, and electronic applications requiring compact, reliable, and efficient Schottky diodes. Explore more Schottky Diode solutions on EnvMart to meet your component needs.
