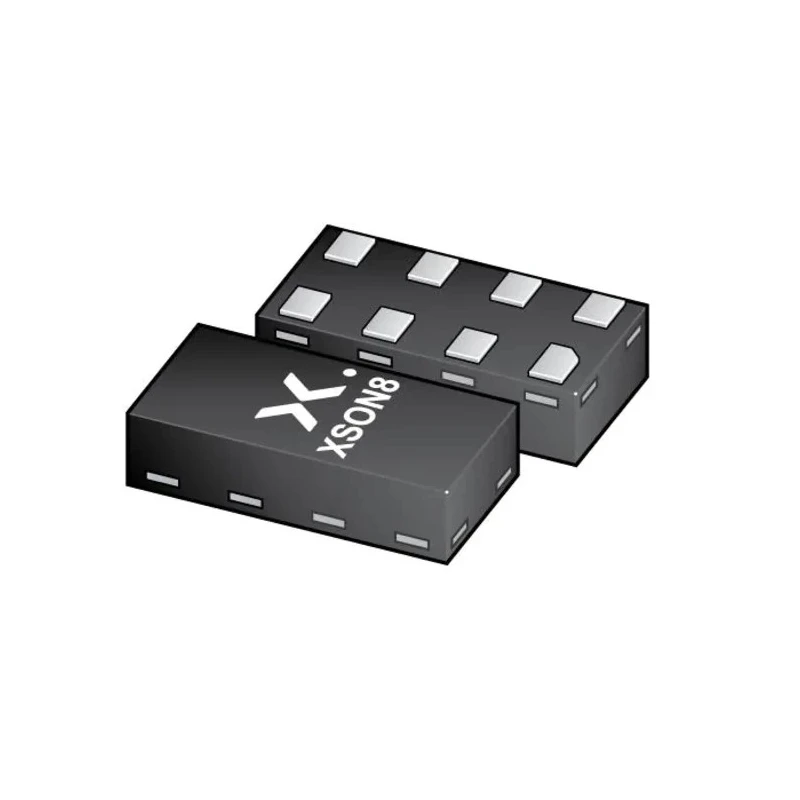

Nexperia Voltage Level Translator 8 Elements 2-Pin Surface Mount XSON8 Package NXB0102GTX

Nexperia NXB0102GTX voltage level translator is a bi-directional, 8-element CMOS logic device designed for voltage translation between different voltage domains in electronic circuits. This device uses a dual supply translating transceiver with auto direction sensing, featuring two 2-bit input-output ports (An and Bn), one output enable input (OE), and dual supply pins VCC(A) and VCC(B). The device translates voltage between any of the common low voltage nodes such as 1.2 V, 1.5 V, 1.8 V, 2.5 V, 3.3 V, and 5.0 V.

VCC(A) can operate between 1.2 V and 3.6 V, while VCC(B) supports between 1.65 V and 5.5 V, enabling flexible interfacing across multiple voltage levels commonly used in modern electronics. The pins An and OE reference VCC(A), and pins Bn reference VCC(B). The output enable pin disables outputs to high impedance state when driven low.

Designed for surface mount assembly, the compact XSON8 package measures 2.4 mm in length and 2.1 mm in height, suitable for space-constrained applications. The device supports a maximum low level output current of 50 mA and includes advanced features such as IOFF circuitry that disables outputs during partial power-down to prevent damage from backflow current.

This voltage level translator is fully specified for partial power-down applications and features built-in IEC61000-4-2 level ESD protection, meeting RoHS compliance standards. It is ideal for use in industrial, automotive, consumer electronics, and other environments requiring level shifting between logic voltage domains.

Supports voltage translation with a wide voltage supply range from 1.2 V to 5.5 V. Auto direction sensing for easy bi-directional communication. Incorporates IOFF circuitry for safe partial power-down operation. Complies with IEC61000-4-2 ESD protection standard.

Compact XSON8 surface mount package with 2.4 mm length and 2.1 mm height. Operates across extended industrial temperature range (-40°C to 125°C). Suitable for automotive and various industrial electronic applications.

Choose this Nexperia NXB0102GTX voltage level translator IC for reliable and efficient logic voltage shifting in compact electronic designs. Explore more semiconductor and Translator ICs at EnvMart for a wide range of electronic component solutions.
