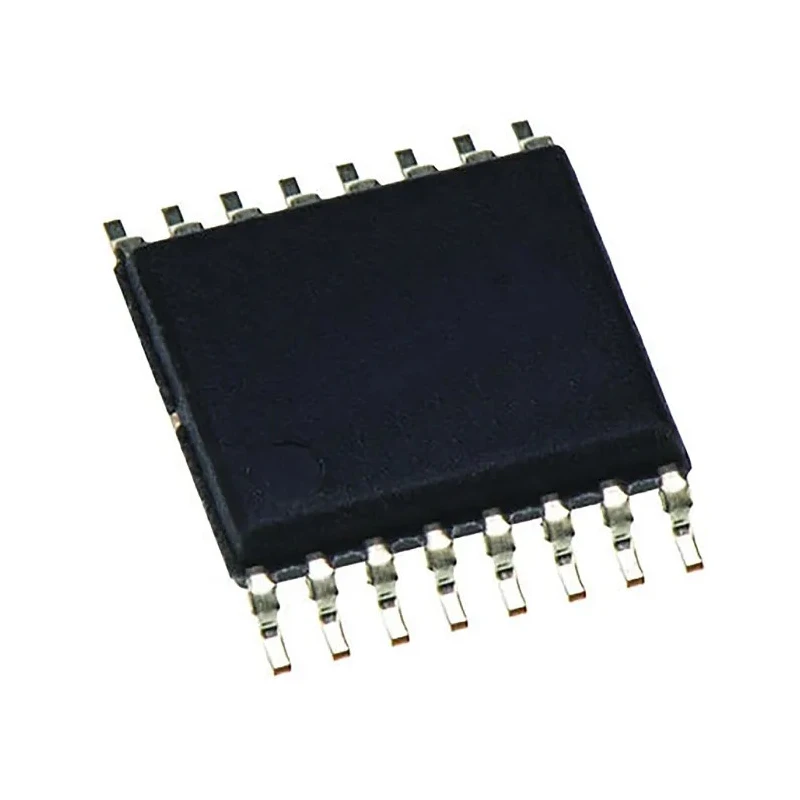

Texas Instruments Voltage Level Translator Bus Transceiver , Bi-Directional, 1.2V to 3.6V Supply, 16 Pin SN74AVCH4T245PWR

Texas Instruments SN74AVCH4T245PWR is a high-performance bi-directional voltage level translator bus transceiver suitable for electronic applications requiring level shifting between low voltage digital components. It supports voltage levels from 1.2V up to 3.6V, making it ideal for interfacing components that operate at different logic voltages.

This device utilizes the AVCH logic family, known for ultra-low power consumption and fast propagation delay. It operates with a maximum propagation delay time of 5.6 nanoseconds under a typical load capacitance of 5pF, ensuring efficient and swift data communication on the bus.

Packaged in a compact 16-pin TSSOP surface mount form factor, this transceiver facilitates easy PCB assembly and minimizes board space usage. The presence of 3-state outputs allows multiple devices to share the same bus lines without interference, enhancing system design flexibility.

The component supports a maximum low level output current of 12 milliamps and a maximum high level output current of -12 milliamps, ensuring robust drive capability. Its operational temperature ranges from -40°C to 85°C, making it suitable for industrial and commercial environments.

Designed specifically for voltage level shifting applications, the SN74AVCH4T245PWR does not include automotive standards approval but is certified RoHS compliant for environmental safety. With a single element chip design, it offers streamlined functionality for bus transceiver needs.

Supports bi-directional data transmission for versatile interface applications. Features a 16 pin TSSOP surface mount package for compact PCB integration. Maximum propagation delay time of 5.6 nanoseconds at typical load conditions.

Provides 3-state output enabling bus sharing and improved signal management. Operates over a wide temperature range from -40°C to 85°C for industrial reliability. Supports Maximum Low Level Output Current of 12mA and Maximum High Level Output Current of -12mA.

Compatible with AVCH logic family series for consistent electrical characteristics. Package height is 1.05mm and length is 5.1mm for precise board layout planning. Single element chip designed for efficient bus transceiver functionality.

No automotive-specific standards applied, suitable for general electronics use.

This voltage level translator bus transceiver is suited for use in industrial electronics, manufacturing automation, communications equipment, embedded systems, and other applications where interface voltage translation and bus transceiver capabilities are required. It ensures proper voltage compatibility and data integrity while supporting efficient PCB layouts.
