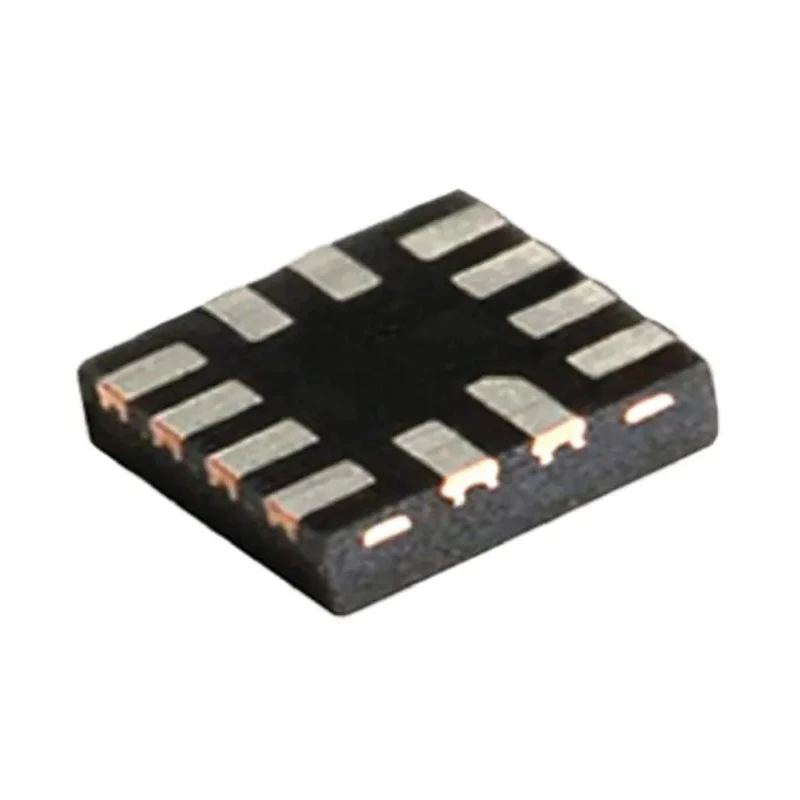

onsemi Voltage Level Shifter Voltage Level Translator 1 Voltage 12-Pin UMLP FXMAR2104UMX

Free Delivery in India | Lowest Global Shipping Charges

onsemi Voltage Level Shifter Voltage Level Translator 1 Voltage 12-Pin UMLP FXMAR2104UMX

Name: onsemi Voltage Level Shifter Voltage Level Translator 1 Voltage 12-Pin UMLP FXMAR2104UMX
Brand: onsemi
SKU: 374633
Price: 0.36 USD
Availability: InStock



Category Translator ICs Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	500μm
Length	1.8mm
Model	FXMAR2104UMX
Mount Type	Surface
Output type	3 State
Series	FXMAR2104
Maximum Operating Temperature	85°C
Package Type	UMLP
Minimum Operating Temperature	-40°C
Pin Count	12
Number of Elements per Chip	1
Maximum Supply Voltage	5.5V
Logic Family	FXMA
Logic Function	Voltage Level Translator
Minimum Supply Voltage	1.65V
Maximum High Level Output Current	-50mA
Maximum Propagation Delay Time @ CL	7ns
Direction Type	Bi-Directional
Maximum Low Level Output Current	50mA
Translation	Voltage

Key Features

Operates bi-directionally to translate voltage levels accurately.
Maximum propagation delay time is 7ns ensuring fast switching.
Surface mount type with compact 12-pin UMLP packaging.
Supports supply voltages from 1.65V up to 5.5V for flexibility.
Maximum low level output current of 50mA and high level output current of -50mA.
Functional temperature range from -40°C to 85°C for various environments.
Logic family FXMA designed specifically for voltage level translation.
Three-state output type for efficient output control.

Product Description

onsemi FXMAR2104UMX is a high-performance voltage level shifter and translator IC from the FXMA logic family, designed for seamless voltage translation between differing voltage domains in electronic systems.

This bi-directional translator features a 12-pin UMLP surface mount package, providing a compact solution with a single element per chip optimized for efficient PCB real estate usage.

Operating from a minimum supply voltage of 1.65V to a maximum of 5.5V, it accommodates a wide range of voltage level translation scenarios. The device ensures fast switching thanks to a maximum propagation delay time of 7ns at the specified load capacitance.

The output supports 3-state logic, which allows for flexible bus configurations and multi-device communication management. It delivers up to 50mA at low-level output and -50mA at high-level output, supporting robust signal driving capabilities.

Designed to operate reliably over a temperature range from -40°C to 85°C, this IC suits industrial, consumer electronics, and general semiconductor applications requiring voltage interoperability.

Bi-directional voltage level translation with fast 7ns propagation delay. Compact 12-pin UMLP surface mount package for space efficiency. Wide operating voltage range from 1.65V to 5.5V. Three-state output for advanced bus control.

Robust operating temperature range of -40°C to 85°C. Uses FXMA logic family technology specific to voltage translation. Height of 500μm and length of 1.8mm for compact physical dimensions. Single element per chip for dedicated voltage translation tasks.

No automotive certifications, designed for industrial and general use.

This product is ideal for use in industrial electrical equipment, embedded systems, consumer electronics, and other electronics requiring voltage interoperability and level shifting. The 12-pin UMLP package facilitates automated PCB assembly and efficient manufacturing workflows.
