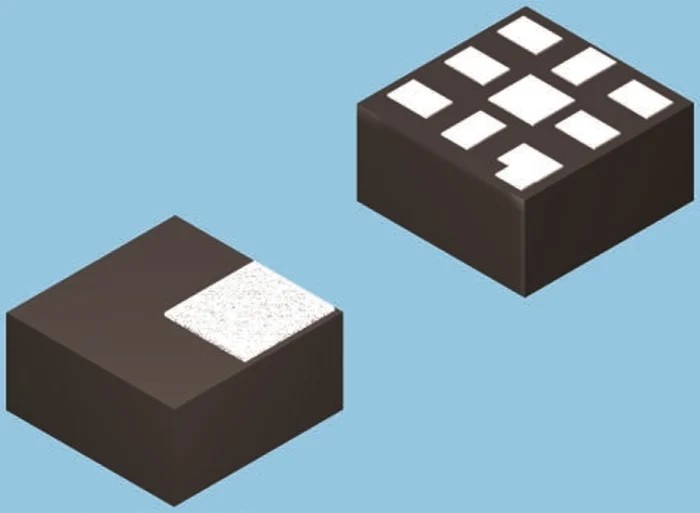

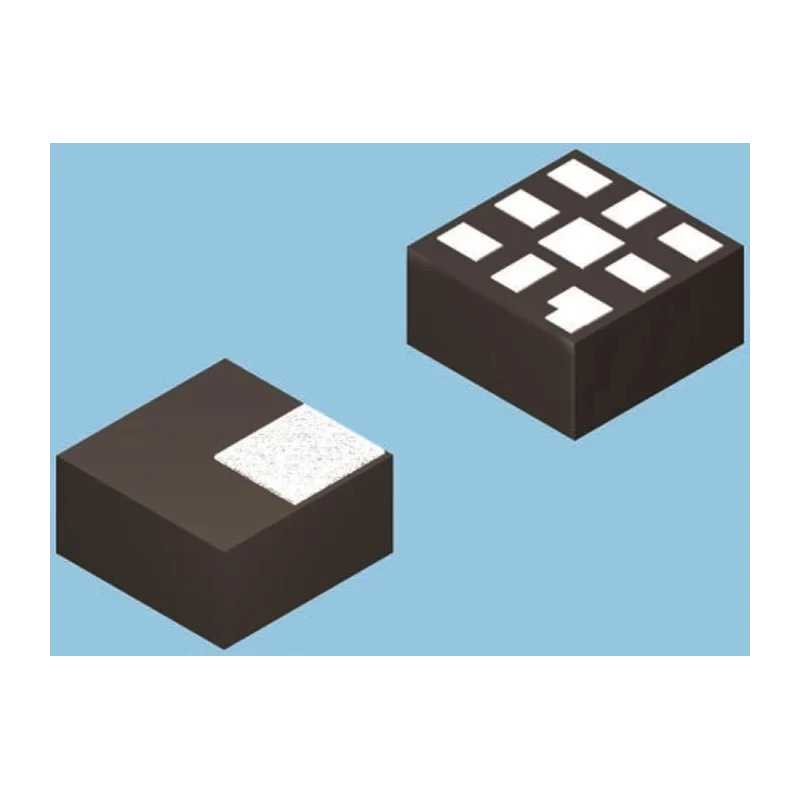

onsemi Voltage Level Shifter, Bi-Directional Logic Level Translator, 8-Pin MicroPak FXMA2102L8X

onsemi FXMA2102L8X is a high-performance bi-directional voltage level shifter designed for reliable voltage translation between different logic levels with low propagation delay. Packaged in a compact 8-pin MicroPak surface mount device, it supports a minimum supply voltage of 1.65V and a maximum of 5.5V, making it suitable for a wide range of low voltage digital circuits. The device features an open drain output and delivers a maximum high level output current of 50mA and a low level output current of -50mA. With operational temperature range from -40°C to 85°C, FXMA2102L8X ensures robust performance under harsh environmental conditions.

Each chip integrates two logic voltage level translator elements, offering efficient operation in circuits requiring simultaneous translation of multiple signals. The maximum propagation delay at CL is only 7 nanoseconds, ideal for time-sensitive applications. This device belongs to the FXMA logic family, ensuring compatibility with similar onsemi devices.

Suitable for electronic system developers, embedded engineers, and industrial applications, FXMA2102L8X is useful for logic interface adaptation, microcontroller signal level translation, and automotive electronics requiring reliable and compact level shifting solutions. Its surface mount package allows for efficient PCB layout and space-saving in dense circuit designs.

Supports bi-directional voltage level translation for two voltages. Maximum propagation delay of 7ns ensures fast switching. Operates from 1.65V to 5.5V supply voltage range. Open drain output type suitable for specific digital logic functions.

High and low level output currents up to 50mA for reliable signal drive. Wide operating temperature range from -40°C to 85°C. Compact 8-pin MicroPak surface mount package. Two elements per chip allowing dual signal translation.

Compatible with FXMA logic family devices. Designed for industrial, automotive, and embedded electronics applications. Explore more semiconductor components and logic ICs in the Electronics & Electricals category on EnvMart to complement your electronic design and engineering projects.
