Nexperia Quad 2-Input AND Logic Gate Surface Mount 14-Pin TSSOP 74HC08PW,118

Free Delivery in India | Lowest Global Shipping Charges

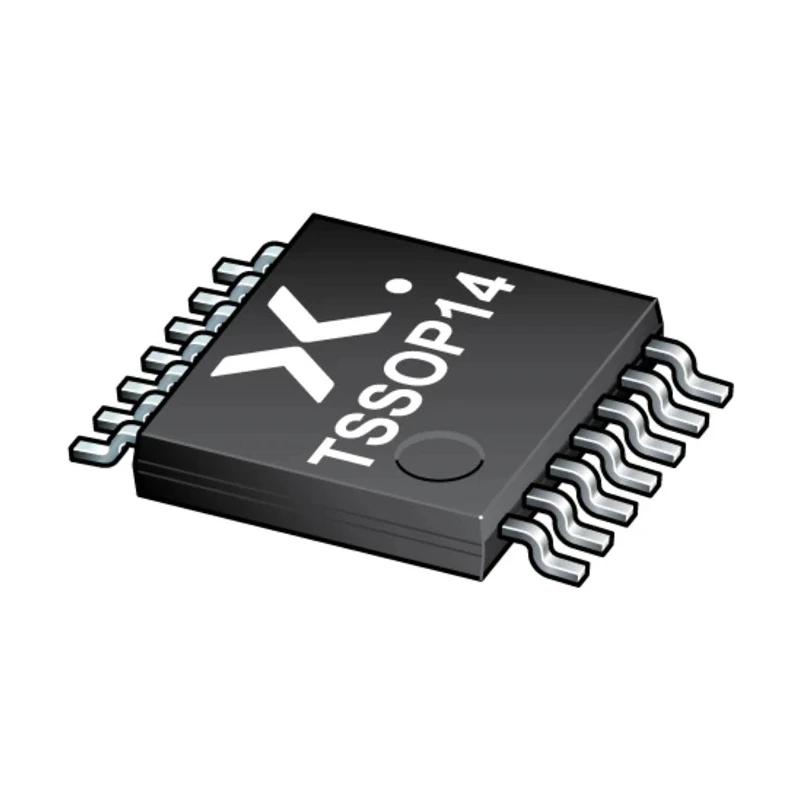

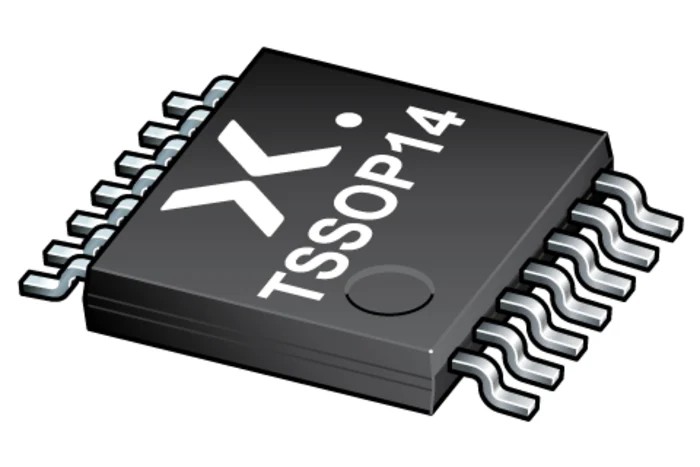

Nexperia Quad 2-Input AND Logic Gate Surface Mount 14-Pin TSSOP 74HC08PW,118

Name: Nexperia Quad 2-Input AND Logic Gate Surface Mount 14-Pin TSSOP 74HC08PW,118
Brand: Nexperia
SKU: 412388
Price: 0.15 USD
Availability: InStock



Category Logic Gates Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	1.1mm
Length	5.1mm
Model	74HC08PW,118
Mount Type	Surface
Input Type	CMOS
Maximum Operating Temperature	125°C
Package Type	TSSOP
Minimum Operating Temperature	-40°C
Pin Count	14
Number of Elements	4
Maximum Supply Voltage	6V
Logic Family	74HC
Logic Function	AND
Minimum Supply Voltage	2V
Maximum High Level Output Current	-5.2mA
Maximum Propagation Delay Time @ CL	23ns
Maximum Low Level Output Current	5.2mA
Number of Inputs per Gate	2
onsemi MC74HC08ADTR2G, 4 2-Input AND Logic Gate, 14-Pin TSSOPBrand	onsemi

Key Features

Features four 2-input AND logic gates integrated in one package.
Operates over a wide supply voltage range from 2V to 6V.
Surface mountable TSSOP package with 14 pins for compact circuit designs.
High-speed low-power CMOS technology ensures efficient logic operations.
Maximum propagation delay time of 23ns at specified load capacitance.
Wide operating temperature range from -40°C to 125°C for reliable performance.
Includes ESD protection and input clamp diodes for enhanced durability.
Output current capability of ±5.2mA suitable for various digital circuits.

Product Description

The Nexperia 74HC08PW,118 is a quad 2-input AND gate logic IC featuring CMOS input technology within a surface mountable 14-pin TSSOP package. It belongs to the 74HC logic family, providing high-speed and low power operation design suitable for a wide range of digital electronic applications.

This device integrates four independent AND gates with two inputs each, allowing for a compact and efficient layout in electronic circuit designs. The inputs incorporate clamp diodes enabling the use of current limiting resistors to interface inputs to voltages exceeding the supply voltage (VCC). The IC provides ESD protection to enhance reliability.

Operating voltage ranges from 2V minimum to 6V maximum, making it compatible with various power supply configurations. Its maximum propagation delay time of approximately 23 nanoseconds at a specified load capacitance supports timely signal processing in circuit applications. The maximum output current is ±5.2 mA for both high-level and low-level outputs.

The device supports a wide operating temperature range from -40°C to 125°C, suitable for industrial and commercial environments. With package dimensions of 5.1 mm length and 1.1 mm height, the TSSOP package facilitates space-saving PCB designs.

Four independent 2-input AND gates in one IC. High-speed CMOS technology ensures low power consumption. Operating voltage between 2V and 6V. Wide temperature range for industrial application. Surface mount TSSOP package with 14 pins.

ESD protection and input clamp diode features. Propagation delay time of 23ns ensures rapid switching. Input type: CMOS, logic family: 74HC series. Output current: ±5.2mA supporting diverse loads. Compact package dimensions suited for modern PCB layouts.

This product is ideal for electronic component applications in industrial automation, logic circuit design, and embedded system development. Explore more semiconductor logic ICs and components at EnvMart for optimized electronic design solutions.
