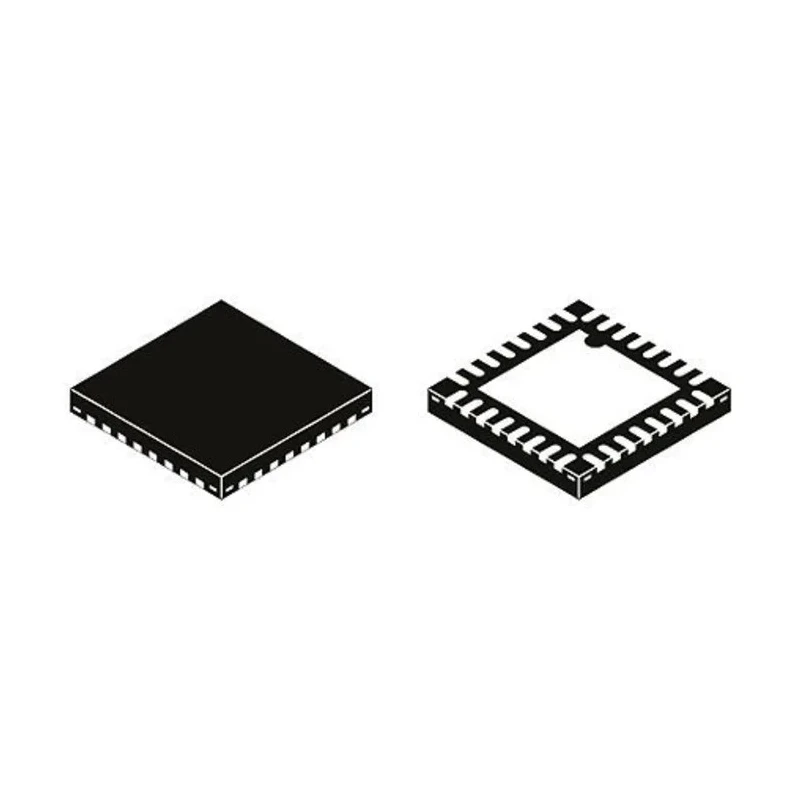

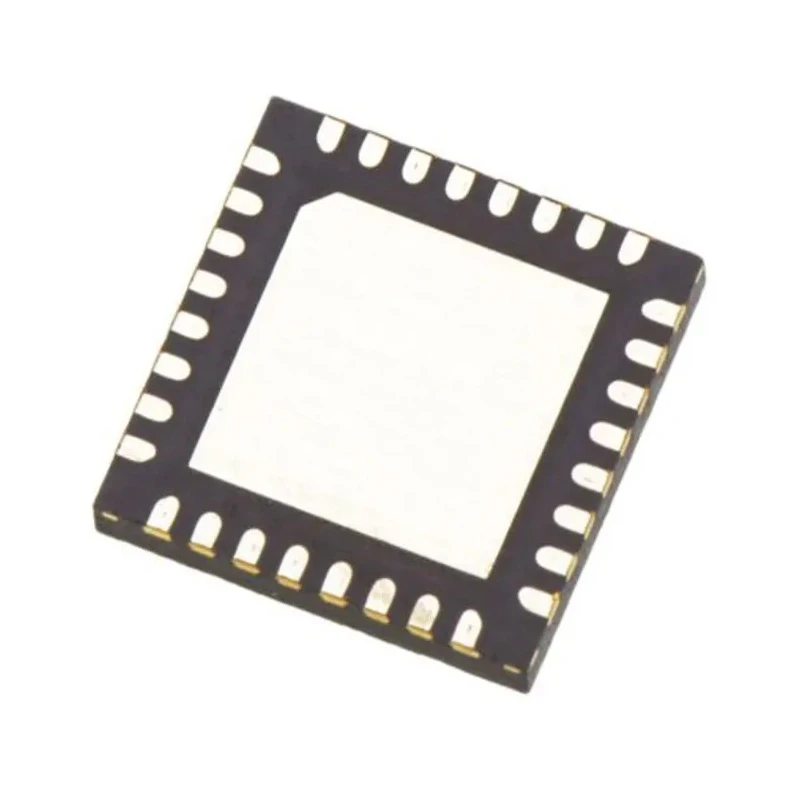

onsemi Voltage Level Shifter Voltage Translator 10 Elements LVCMOS to LVPECL, LVTTL to LVPECL 32-Pin QFN MC100EPT622MNG

onsemi MC100EPT622MNG Voltage Level Shifter Voltage Translator is engineered for precise logic voltage translation in electronic and semiconductor applications. It features 10 elements within a compact 32-pin QFN surface mount package, enabling efficient conversion from LVCMOS/LVTTL logic levels to LVPECL output levels.

This device operates uni-directionally with a maximum propagation delay time of 800 picoseconds at standard load capacitance, ensuring high-speed signal integrity. The supply voltage range of 3 V minimum up to 3.8 V maximum supports stable operation across typical circuit conditions.

The translator sustains a maximum low-level output current of 50 mA and a high-level output current of 100 mA, providing appropriate drive capacity for downstream devices. It is designed for industrial temperature standards, operating reliably from -40°C to 85°C.

With dimensions of 5 mm length and 950 micrometers height, the QFN package supports modern surface mount technology for compact PCB footprint designs. The device’s capability to interface with various logic families such as ECL, PECL, CML, LVDS, HSTL, HCSL, TTL, and CMOS enhances its versatility in complex electronics and semiconductor manufacturing environments.

This voltage translator is ideal for applications including industrial automation, high-speed data transfer, telecommunications hardware, and general embedded systems requiring robust voltage level compatibility.

Supports uni-directional voltage translation from LVCMOS/LVTTL to LVPECL. Maximum propagation delay time at 800 ps guarantees high-speed switching. Supply voltage range from 3 to 3.8 V enables compatibility with various power domains.

Surface mount QFN package for low-profile and reliable PCB assembly. Output currents of 50 mA low-level and 100 mA high-level suit diverse logic loads. Operation across wide temperature range (-40°C to 85°C) for industrial environments.

Compact device dimensions reduce overall circuit size. Interfaces seamlessly with multiple logic levels commonly found in semiconductor devices. Explore the electronics and semiconductor category on EnvMart for related voltage Translator ICs and advanced logic components from trustworthy manufacturers.
