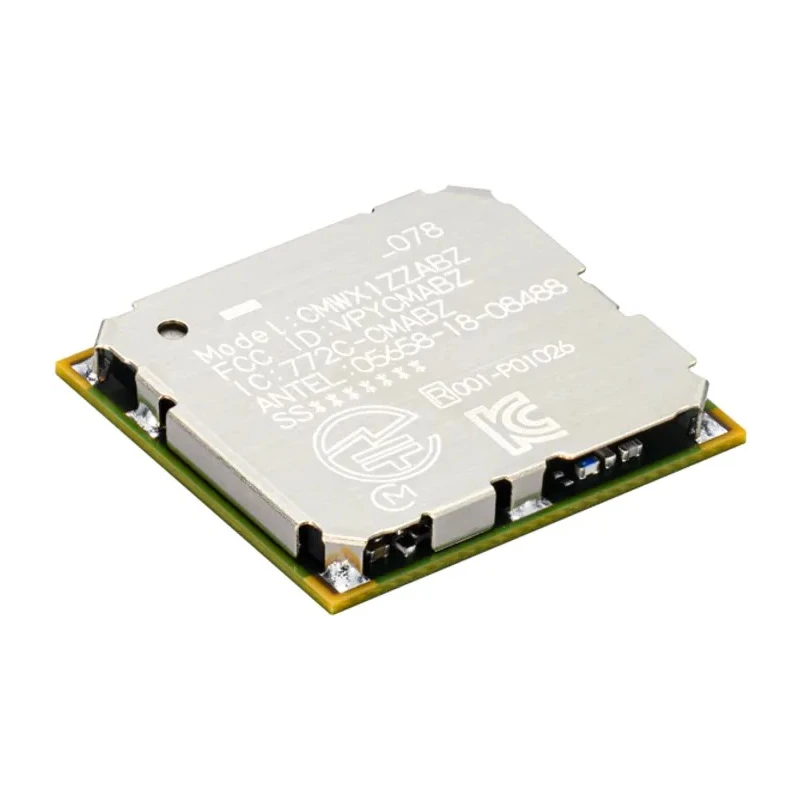

Murata LoRa Module with -135 dBm Receiver Sensitivity, 12.5 x 11.6 x 1.76 mm Metal Shielded Package, Supports CMWX1ZZABZ-093

Name: Murata LoRa Module with -135 dBm Receiver Sensitivity, 12.5 x 11.6 x 1.76 mm Metal Shielded Package, Supports CMWX1ZZABZ-093
Brand: Murata
SKU: 297746
Price: 20.22 USD
Availability: InStock



Category Wi-Fi Modules Brand Murata Condition New

Specifications

Country of Origin	China
Brand	Murata
Model	CMWX1ZZABZ-093
Receiver Sensitivity	-135dBm
Standards/Approvals	RoHS
Maximum Supply Voltage	3.6V
Minimum Supply Voltage	2.2V
Protocol Type	LoraWAN
Supported Bus Interfaces	SPI, UART, GPIO, ADC, I2C

Key Features

Extremely high receiver sensitivity of -135 dBm to ensure reliable long-range wireless communication.
Maximum RF output power of 10 dBm, with optional PA boost up to +20 dBm for extended range applications.
Integrated Semtech SX1276 spread spectrum RF transceiver and STM32L0 ARM Cortex-M0+ microcontroller.
Supports multiple bus interfaces including SPI, UART, GPIO, ADC, and I2C for versatile connectivity.
Operates on a wide supply voltage range from 2.2 V minimum to 3.6 V maximum.
Compact design ideal for IoT, LPWAN, and embedded wireless applications.
Constructed with RoHS-compliant materials ensuring environmental safety.
Manufactured in China under stringent quality controls.

Product Description

Murata CMWX1ZZABZ-093 LoRa Module is a new, compact, and cost-effective low power wide area network (LPWAN) module designed for long range wireless communication utilizing the LoRaWAN protocol. Its small footprint of 12.5 x 11.6 x 1.76 mm in a metal shielded package makes it ideal for embedded applications requiring secure, robust connectivity.

This module incorporates a Semtech SX1276 long range spread spectrum transceiver and an STMicro STM32L0 series ARM Cortex-M0+ 32-bit microcontroller with 192 kB flash memory and 20 kB RAM. It supports integration of customer applications and modulation stacks within its onboard MCU.

The device offers a maximum RF output power of 10 dBm with an option for a power amplifier boost to +20 dBm, suitable for applications requiring enhanced signal penetration in challenging environments or indoors.

Its versatile peripheral interface options include SPI, UART, GPIO, ADC, and I2C buses, providing flexibility to interface with various sensors and external components. The module operates reliably on supply voltages ranging from 2.2 V to 3.6 V.

Adhering to RoHS environmental standards, the module is manufactured in China following strict quality assurance processes. This makes it well suited for use cases in industrial IoT, smart metering, asset tracking, agricultural monitoring, and other commercial and industrial wireless sensor network deployments.

Extremely high receiver sensitivity of -135 dBm ensuring long distance communication. Maximum output power of 10 dBm with PA boost option for better coverage. Built around Semtech SX1276 RF and STM32L0 MCU for integrated functionality.

Multiple supported bus interfaces including SPI, UART, GPIO, ADC, and I2C. Compact size with metal shielding for robust EMI immunity. Low power operation suitable for battery-powered IoT devices. RoHS compliant and manufactured in China.

Set contains one Murata CMWX1ZZABZ-093 LoRa Module, suitable for insertion into machinery and embedded system designs. Explore similar RF and wireless modules in the Electronics & Electricals category at EnvMart for your next industrial or commercial project.
