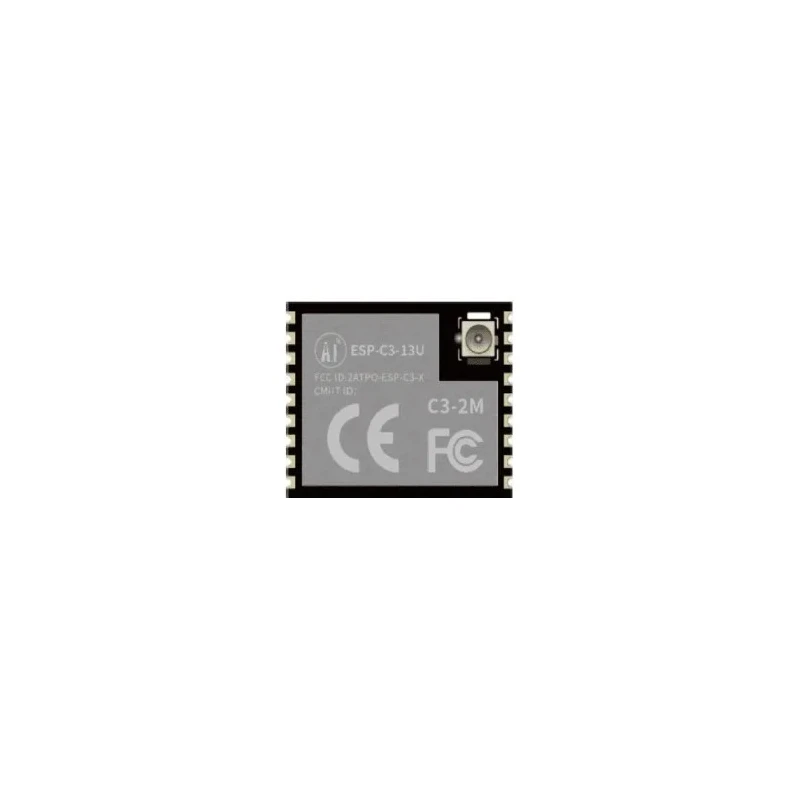

RF Solutions 3V WiFi Module ESP32-C3-13U with BLE 5.0, RISC-V 32-bit 160 MHz Processor ESP32-C3-13U

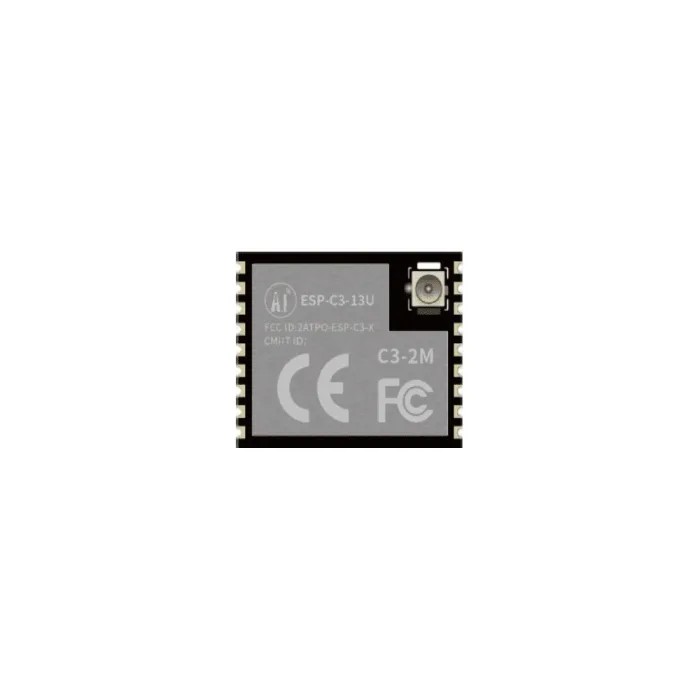

RF Solutions ESP32-C3-13U 3V WiFi Module ESP32-C3-13U is an advanced IoT and wireless communication module incorporating a RISC-V 32-bit single-core processor with up to 160 MHz operating frequency, designed to provide robust connectivity solutions.

This module integrates Wi-Fi IEEE802.11b/g/n standards supporting data rates up to 150 Mbps and Bluetooth Low Energy (BLE) 5.0 technology with multiple data rates, making it suitable for smart home, wearable electronics, mobile devices, and various IoT applications.

The ESP32-C3 chip features a built-in 400 KB SRAM, 384 KB ROM, and 8 KB RTC SRAM along with a built-in 4 Mbit Flash memory, providing ample resources for secondary development. It enables developers to build applications without needing additional processors.

With support for various interfaces such as ADC, GPIO, I2C, SPI, and UART, the module offers versatile integration options for different hardware environments. The module's power efficiency is enhanced by multiple sleep modes, including a deep sleep current consumption of less than 5 microamperes.

Operating reliably across a wide temperature range from -45°C to 85°C, and packaged as SMD-18, this WiFi module is built for challenging environments. It supports UART rates up to 5 Mbps and includes smart configuration technologies like Smart Config (APP) and AirKiss (WeChat) for seamless network setup on Android and iOS devices.

Firmware upgrades can be performed locally or remotely via UART port, enabling easy maintenance and update of deployed devices. The module complies with no specific certifications but is manufactured to meet industrial standards.

RF Solutions ESP32-C3-13U is made in China and is ideal for industrial, laboratory, commercial, and agricultural IoT wireless communication applications. Its compact and power-efficient design supports a wide range of use cases such as smart home automation, asset tracking, sensor networks, and more.

The module supports Wi-Fi IEEE802.11b/g/n with data rates up to 150 Mbps. Operates with a RISC-V 32-bit single-core processor at up to 160 MHz frequency. Includes BLE 5.0 for advanced wireless communication options. Integrated 400 KB SRAM, 384 KB ROM, 8 KB RTC SRAM, and 4 Mbit Flash memory.

Multiple interfaces including ADC, GPIO, I2C, SPI, and UART for versatile applications. Low power consumption with deep sleep current under 5 µA and multiple sleep modes. Wide operating temperature range from -45°C to 85°C for use in harsh environments.

Supports smart configuration, UART firmware upgrades, and high UART data rates. Manufactured in China with SMD-18 package, suitable for industrial IoT uses. Discover more wireless connectivity solutions in the Wi-Fi Modules category at EnvMart.
