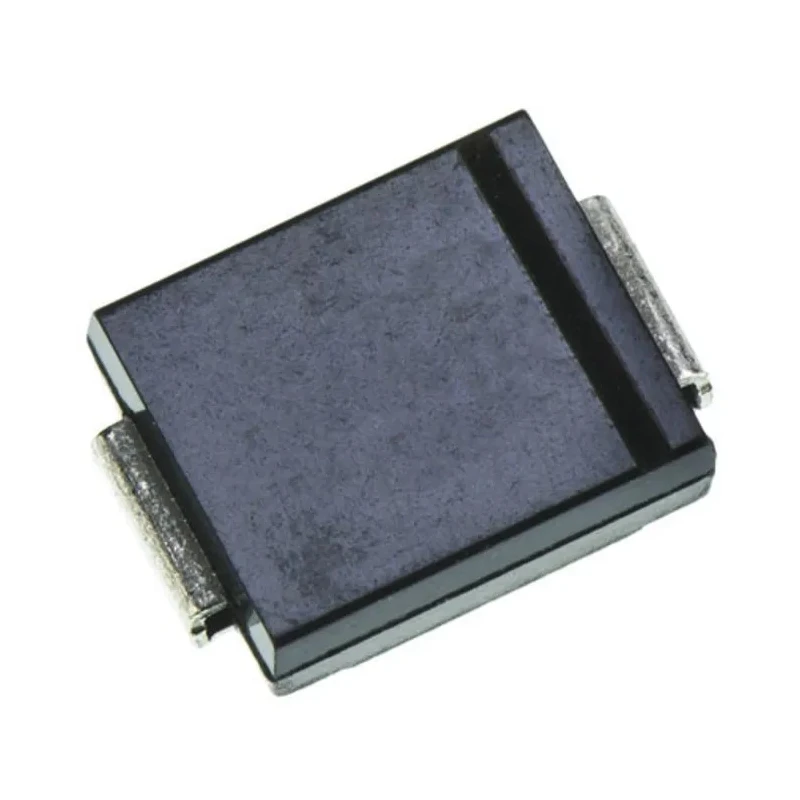

Littelfuse Uni-Directional TVS Diode, 5 kW, DO-214 Package, Surface Mount, 60V, 2-Pin, Model 5.0SMDJ60A
Specifications
| Country of Origin | China |
|---|---|
| Brand | Littelfuse |
| Height | 2.41mm |
| Length | 7.11mm |
| Model | 5.0SMDJ60A |
| Width | 6.22mm |
| Mount Type | Surface |
| Series | 5.0 SMDJ |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 96.8V |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 66.7V |
| Maximum Reverse Stand-off Voltage Vwm | 60V |
| Peak Pulse Power Dissipation Pppm | 5kW |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 51.7A |
| Maximum Reverse Leakage Current | 5μA |
| High temperature soldering guaranteed | 260°C/40 seconds at terminals |
| Fast response time | typically less than 1.0ps from 0V to BV min |
Key Features
- Compact surface mount transient voltage suppressor diode for board space optimisation.
- Delivers up to 5 kW peak pulse power with rapid response time below 1.0 ps.
- Features a high clamping voltage of 96.8V and breakdown voltage of 66.7V.
- Reliable DO-214 package with built-in strain relief and glass passivated junction.
- Suitable for lightning and surge protection in industrial and commercial electronics.
- ESD protection and low reverse leakage current of just 5μA above 22V.
- Thermal stability with operating range from -65°C to 150°C.
- Halogen-free, matte tin lead-free plated terminals for high-temperature soldering.
Product Description
The Littelfuse 5.0SMDJ60A is a uni-directional TVS (Transient Voltage Suppression) diode engineered to protect sensitive electronic equipment from damaging voltage transients, including surges induced by lightning or other transient events. This diode delivers a robust peak pulse power dissipation of 5 kW, making it a reliable protection solution for industrial, laboratory, commercial, and communication circuits.
Designed for surface mount applications, the 5.0SMDJ60A comes in a DO-214 package, featuring a compact profile to optimise board space. Its glass passivated chip junction and built-in strain relief ensure durability and stability even under demanding operational conditions. The diode's rapid response time, typically less than 1.0 ps from zero to breakdown voltage, ensures immediate protection against voltage spikes.
Electrically, this Littelfuse diode offers a minimum breakdown voltage of 66.7V, a maximum reverse stand-off voltage of 60V, and a high clamping voltage of 96.8V. With a maximum peak pulse current of 51.7A and a low reverse leakage current (under 5μA above 22V), it provides excellent clamping and surge resistance that is ideal for high-performance electronics.
Thermal stability is ensured by an operating temperature range from -65°C up to 150°C. The device is halogen-free and features matte tin lead-free plated terminals, supporting high-temperature soldering up to 260°C for 40 seconds at the terminals. ESD protection is built in, and the product meets the requirements for fast response and high reliability in demanding electronics applications.
Typical use cases include industrial automation, communication infrastructure, manufacturing equipment, laboratory instrumentation, commercial electronics, and other environments where transient voltage protection is essential. Its low profile and single-element construction make it suitable for extensive integration into modern PCB layouts.
For more TVS Diodes and technical solutions from Littelfuse, explore the EnvMart Semiconductor and Electronics category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a peak pulse power dissipation of 5 kW, making it suitable for protecting sensitive electronic equipment from voltage transients.
The minimum breakdown voltage of the 5.0SMDJ60A is 66.7V, which is critical for ensuring effective transient voltage suppression.
The high clamping voltage for this model is 96.8V, providing robust protection against voltage spikes.
The maximum reverse stand-off voltage for the 5.0SMDJ60A is 60V, which helps define its operating limits in electronic circuits.
The operating temperature range for the Littelfuse 5.0SMDJ60A is from -65°C to 150°C, ensuring thermal stability in various environments.
This unit can handle a maximum peak pulse current of 51.7A, allowing it to effectively manage high transient currents.
The dimensions of this diode are 7.11mm in length, 6.22mm in width, and 2.41mm in height, making it compact for surface mount applications.
The 5.0SMDJ60A is packaged in a DO-214 format, which is designed for surface mount applications.
The maximum reverse leakage current for the Littelfuse 5.0SMDJ60A is 5μA above 22V, which is beneficial for reducing power loss.
Yes, the 5.0SMDJ60A includes built-in ESD protection, making it suitable for applications sensitive to electrostatic discharge.
The response time of the Littelfuse 5.0SMDJ60A is typically less than 1.0 ps from zero to breakdown voltage, ensuring rapid protection against transients.
The Littelfuse 5.0SMDJ60A is manufactured in China, as indicated in its specifications.
