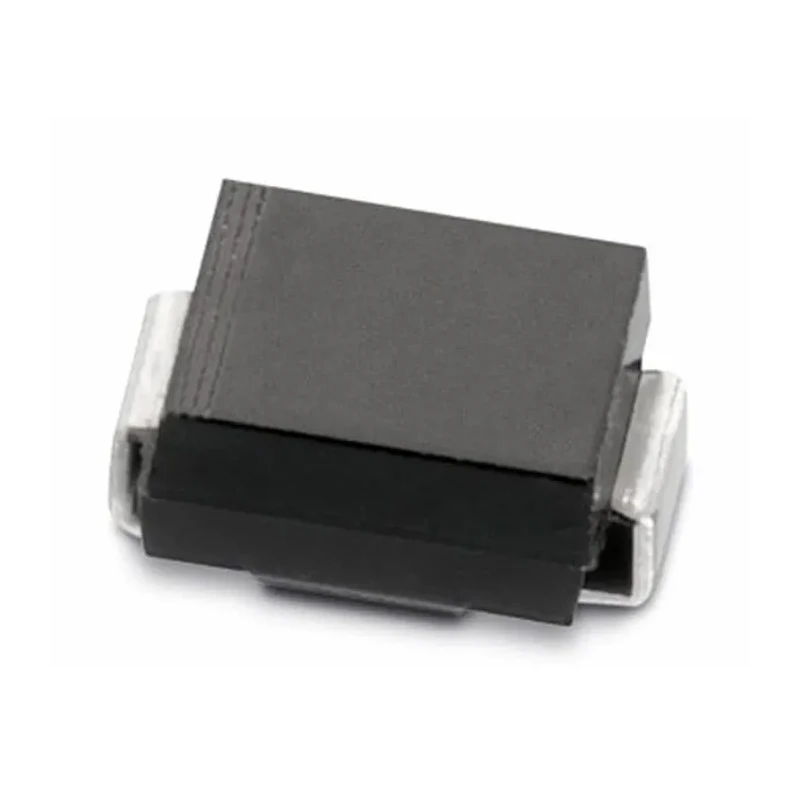

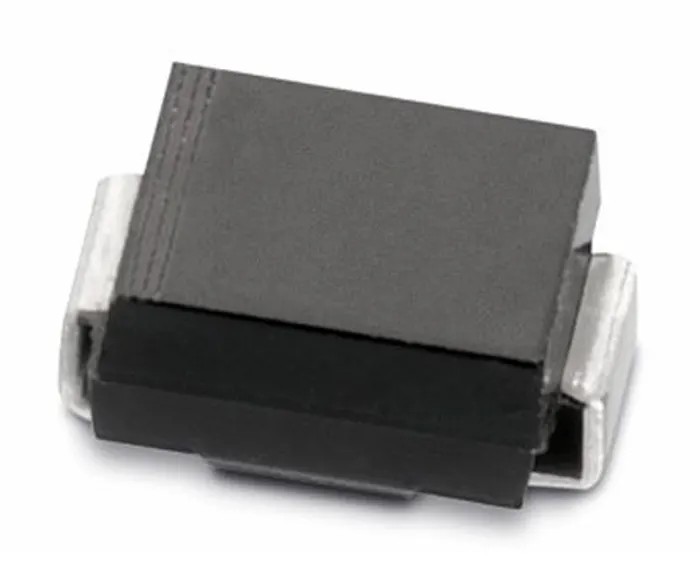

Wurth Elektronik 1-Element Uni-Directional TVS Diode, Surface Mount DO-214 Package, 600W Peak Pulse Power, 2-Pin 824520141

Wurth Elektronik 824520141 is a 1-element uni-directional TVS diode offering high reliability transient voltage suppression in electronic circuits. It features a surface mount DO-214 package, rated at 600 watts peak pulse power to protect sensitive components from transient voltage spikes.

The diode configuration is single and uni-directional, providing voltage clamping at a minimum breakdown voltage of 16.4 volts, with a clamping voltage of 23.2 volts when tested at a 1 mA test current. It can handle a maximum peak pulse current of 25.9 amperes, ensuring robust protection in demanding applications.

Its compact dimensions of length 4.32 mm, width 3.62 mm, and height 2.3 mm make it suitable for densely packed circuit boards. The device operates reliably within a temperature range of -65°C to 150°C, suitable for automotive and industrial environments.

The glass passivated junction design enables fast response time to voltage transients with minimal reverse leakage current of 1 μA. This characteristic ensures efficiency and energy conservation in sensitive electronic devices.

This diode is typically used in industrial automation, power supplies, consumer electronics, and automotive electronics to safeguard circuits from voltage transients and surges. Its surface mount package type is compatible with automated pick-and-place assembly, improving production efficiency.

Single diode configuration with uni-directional voltage protection. Minimum breakdown voltage of 16.4 V to protect sensitive electronics. Rated peak pulse current of 25.9 A for transient voltage spikes handling. Compact dimensions with 4.32 mm length, 3.62 mm width, and 2.3 mm height.

Operates in temperature range from -65°C to 150°C for harsh environments. Glass passivated junction ensures fast response time and durability. Maximum reverse leakage current limited to 1 μA for minimal power loss. Standard surface mount package suitable for automated production line insertion.
