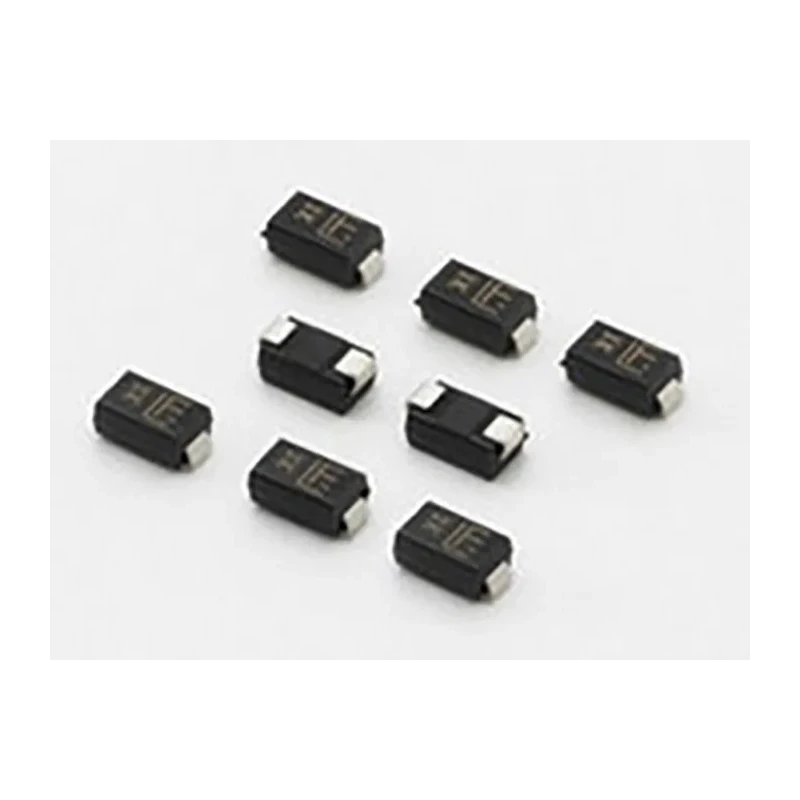

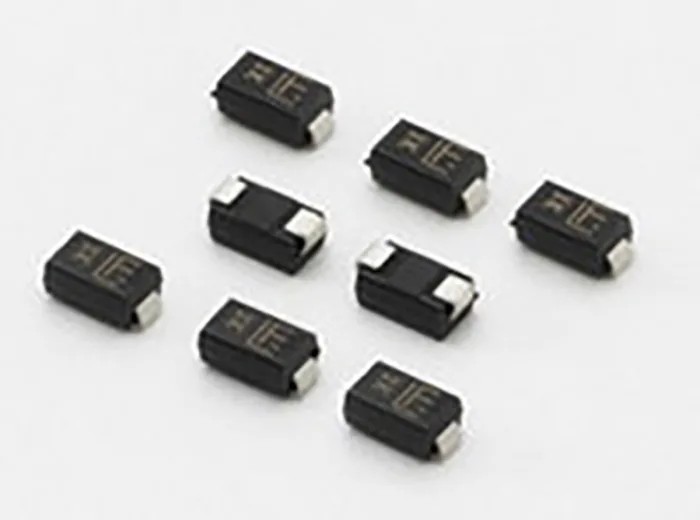

Littelfuse 1-Element Bi-Directional TVS Diode, 400 W Peak Pulse Power, 2-Pin Surface Mount DO-214 SMAJ60CA

Littelfuse SMAJ60CA is a high-performance 1-element bi-directional TVS diode designed to protect sensitive electronic components from damaging transient voltage surges. Featuring a robust 400 W peak pulse power dissipation rating, this diode offers a reliable safeguard against voltage spikes induced by lightning or switching transients in electric circuits.

The device comes in a compact 2-pin DO-214 surface mount package, optimizing board space while providing mechanical strain relief and low inductance. It supports a minimum breakdown voltage of 66.7 volts and a maximum reverse stand-off voltage of 60 volts, clamping voltage at 96.8 volts ensures that voltage surges are effectively limited to safe levels.

Designed for a wide operating temperature range from -65°C to 150°C, the SMAJ60CA diode is suitable for demanding environments found in automotive, industrial, and commercial electronics. Its fast response time, typically less than 1 picosecond, allows immediate reaction to transient events, ensuring maximum protection.

The diode features a glass passivated junction for enhanced durability and performance stability. It also supports electrostatic discharge (ESD) protection with a peak pulse current capability of 4.1 amps. The device is halogen free, complying with environmental regulations and suitable for green applications.

Its low incremental surge resistance improves reliability, and the diode withstands high temperature soldering processes up to 250°C for 10 seconds at the terminals without deterioration, facilitating advanced manufacturing techniques.

Provides bi-directional transient voltage suppression for protecting semiconductors and electronic circuits. High peak pulse power dissipation of 400 W ensures robust transient handling capability. Compact 2-pin DO-214 surface mount package optimizes circuit board space.

Wide operating temperature range from -65°C to 150°C supports harsh environments. Fast response time less than 1 picosecond protects from high-speed voltage spikes. Glass passivated junction enhances stability and lifetime.

ESD protection with peak pulse current of 4.1 A safeguards sensitive electronics. Halogen free for eco-friendly applications. High temperature soldering tolerance enables reliable circuit assembly.

This Littelfuse 1-Element Bi-Directional TVS Diode is ideal for industrial, automotive, telecommunications, and consumer electronics applications requiring superior surge protection and reliable performance. Explore more TVS Diodes and semiconductor components to enhance your projects and manufacturing at EnvMart.
