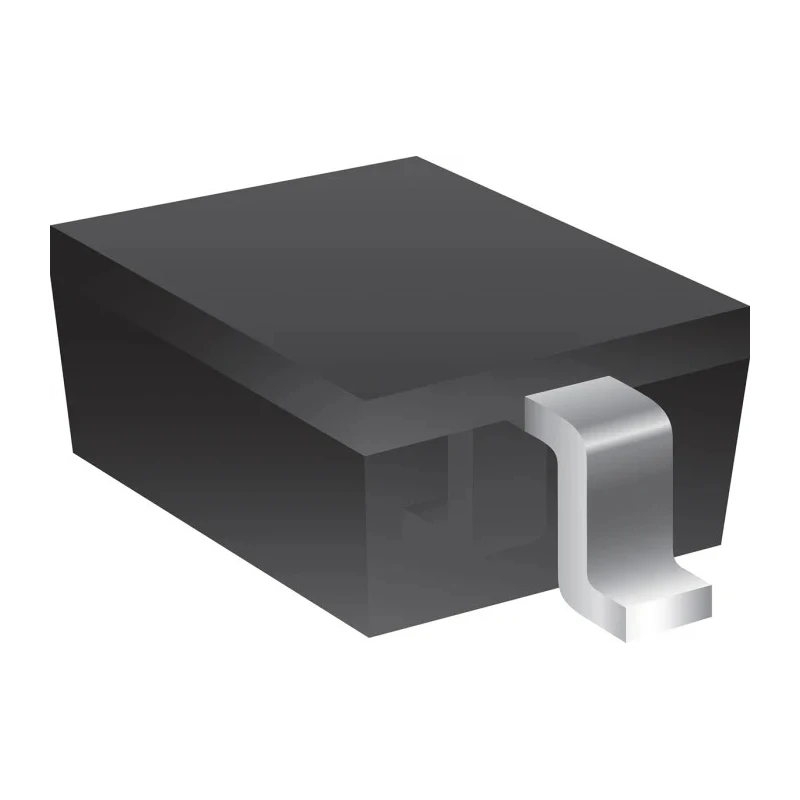

Bourns 1-Element Uni-Directional TVS Diode Surface Mount SOD-323 Package 6V Breakdown Voltage 500W Peak Pulse CDSOD323-T05S

Bourns CDSOD323-T05S is a 1-element uni-directional TVS diode designed to provide reliable transient voltage suppression in sensitive electronic devices. Featuring a surface mount 2-pin SOD-323 package, the diode supports a minimum breakdown voltage of 6V and a peak pulse power dissipation rating of 500W, enabling effective protection against voltage spikes and electrostatic discharge.

This diode operates efficiently with a maximum peak pulse current of 42A and a clamping voltage of 9.8V to maintain system integrity during transient surge events. Its operating temperature range from -55°C to 150°C makes it suitable for harsh industrial environments, while the maximum reverse leakage current of 125μA ensures low power dissipation in standby conditions.

Manufactured with lead-free materials, the CDSOD323-T05S diode is RoHS compliant and compatible with standard pick and place equipment, enabling high-volume automated assembly. It is primarily used in electronic applications such as cellular phones, computer notebooks, digital cameras, and personal digital assistants, where ESD protection and surge suppression are critical.

Designed for unidirectional ESD protection and surge suppression. Surface mount 2-pin SOD-323 package for compact PCB integration. Includes a 1-element single diode configuration. Peak pulse current rated at 42A for transient voltage spikes.

Clamping voltage of 9.8V ensures device protection during surges. Operating temperature range from -55°C to 150°C for wide environmental usage. Maximum reverse leakage current of 125μA reduces power loss in circuits. Compatible with automated pick and place equipment for manufacturing efficiency.

Lead-free construction meeting RoHS compliance standards. Ideal for applications in cellular phones, notebooks, digital cameras, and PDAs.

The CDSOD323-T05S is a high-quality TVS Diode solution for industrial, telecommunications, and consumer electronics sectors requiring effective voltage transient suppression. Explore more Bourns electronic components on EnvMart for reliable, precision semiconductor devices.
