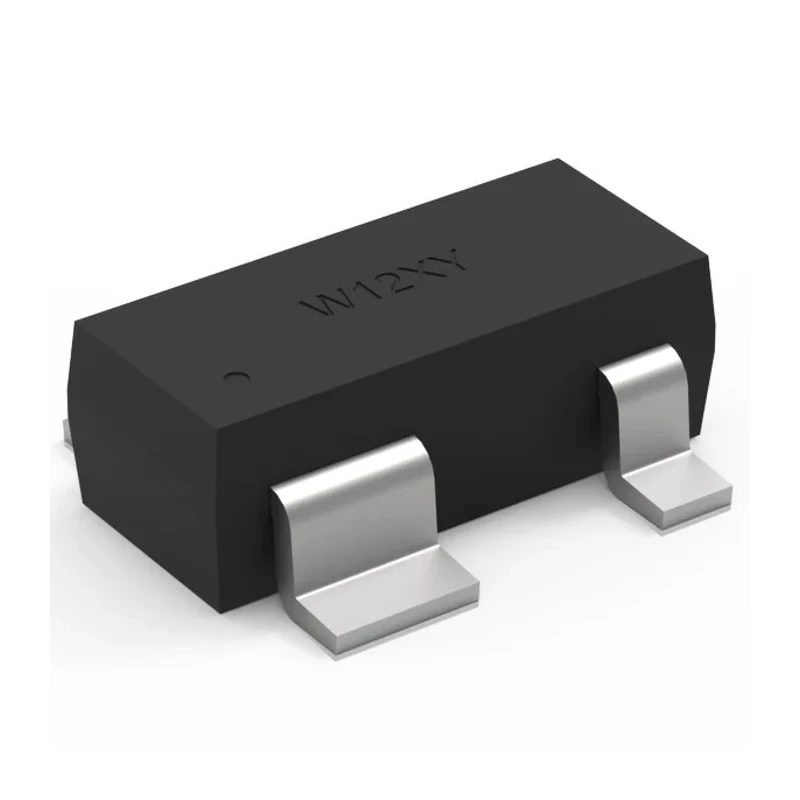

Wurth Elektronik 2-Element Uni-Directional TVS Diode Array, 4-Pin SOT-143, 6V Breakdown Voltage, 4 Pin 8240026
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 1mm |
| Length | 2.95mm |
| Model | 8240026 |
| Width | 1.3mm |
| Mount Type | Surface |
| Series | WE-TVS |
| Maximum Operating Temperature | 85°C |
| Package Type | SOT-143 |
| Minimum Operating Temperature | -55°C |
| Interfaces | USB 2 |
| Pin Count | 4 |
| Number of Elements per Chip | 2 |
| Clamping Voltage VC | 9V |
| Diode Configuration | Complex Array |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 6V |
| Maximum Reverse Stand-off Voltage Vwm | 5V |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 6A |
| Maximum Reverse Leakage Current | 5μA |
Key Features
- Designed for surface mounting in a compact 4-pin SOT-143 package.
- Features a complex diode array with 2 elements per chip for enhanced protection.
- Operates reliably from -55°C to 85°C for varied environmental conditions.
- Provides ESD protection up to 6A peak pulse current with a clamping voltage of 9V.
- Ideal for protecting interfaces such as USB 2.0, HDMI, DVI, Ethernet, Firewire, and serial buses.
- Low maximum leakage current of 5µA ensures minimal power loss during operation.
- Compact dimensions of 2.95mm length, 1.3mm width, and 1mm height optimize PCB space usage.
- Manufactured in China with high-quality Wurth Elektronik standards.
Product Description
Wurth Elektronik 8240026 is a 2-element uni-directional TVS Diode Array designed for robust protection against transient voltage spikes and electrostatic discharges in electronic circuits. This device is housed in a small 4-pin SOT-143 surface-mount package, ideal for space-constrained industrial and commercial electronics applications.
With a minimum breakdown voltage of 6V and a maximum reverse stand-off voltage of 5V, the diode array ensures reliable voltage clamping at 9V, protecting delicate semiconductor components from voltage transients. Its peak pulse current rating of 6A and ESD protection capability make it suitable for interfaces including USB 2.0, HDMI, DVI, Ethernet, Firewire, and serial bus lines.
The product operates over a temperature range from -55°C to 85°C, maintaining performance in harsh industrial and laboratory environments. The device has a very low leakage current, specified at a maximum of 5µA, optimizing power efficiency in sensitive electronic applications. Its compact package size (2.95mm x 1.3mm x 1mm) supports modern PCB design where space is at a premium.
The product is made in China and belongs to the WE-TVS series of ESD protectors specialized in ultra-low capacitance transient voltage suppression. Designed for surface mounting with a small pin count of 4. Complex diode array configuration enhances transient protection.
Uni-directional diode configuration offers directional transient voltage suppression. Stable operation across a wide temperature range (-55°C to 85°C). Low clamp voltage and leakage current minimize impact on circuit operation.
Suitable for diverse industrial, commercial, and laboratory electronics applications requiring ESD protection. Explore more semiconductor protection devices and electronic components at EnvMart for reliable circuit safety enhancements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The minimum breakdown voltage of this model is 6V.
It has a maximum peak pulse current rating of 6A.
The dimensions of the package are 2.95mm in length, 1.3mm in width, and 1mm in height.
This model operates reliably over a temperature range from -55°C to 85°C.
The clamping voltage for this device is 9V.
The maximum reverse leakage current is specified at 5µA.
It is suitable for protecting interfaces such as USB 2.0, HDMI, DVI, Ethernet, Firewire, and serial buses.
This model features a complex diode array with 2 elements per chip.
This TVS diode array is designed for surface mounting.
This device belongs to the WE-TVS series of ESD protectors.
It features a uni-directional diode configuration for transient voltage suppression.
The test current for this model is 1mA.
