Infineon Uni-Directional TVS Diode Array 1.04 kW Peak Pulse Power 6-Pin SC-74 TVS3V3L4UE6327HTSA1

Free Delivery in India | Lowest Global Shipping Charges

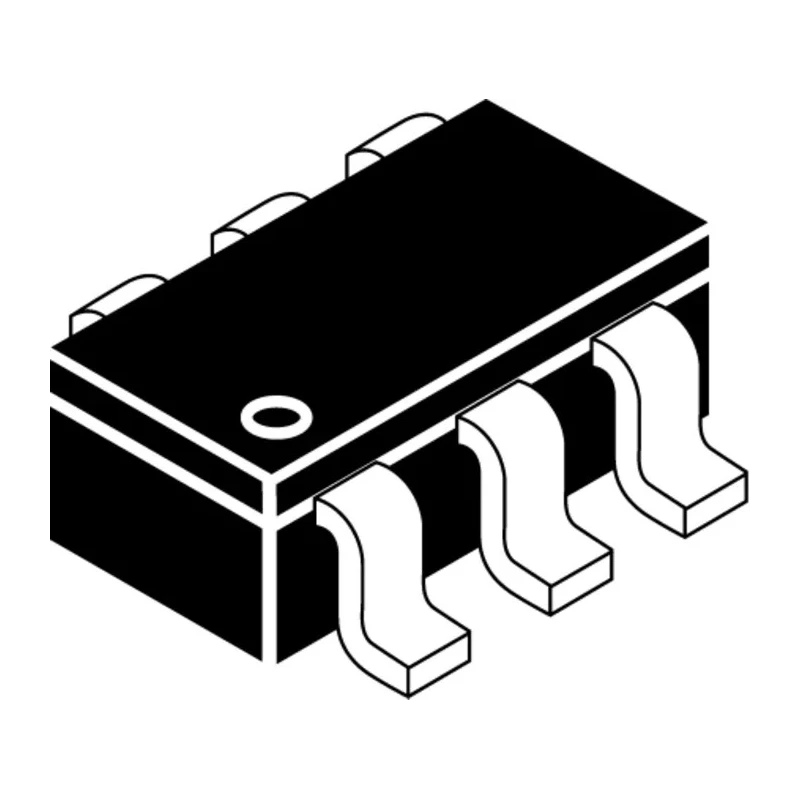

Infineon Uni-Directional TVS Diode Array 1.04 kW Peak Pulse Power 6-Pin SC-74 TVS3V3L4UE6327HTSA1

Name: Infineon Uni-Directional TVS Diode Array 1.04 kW Peak Pulse Power 6-Pin SC-74 TVS3V3L4UE6327HTSA1
Brand: Infineon
SKU: 387066
Price: 0.46 USD
Availability: InStock



Category TVS Diode Array Brand Infineon Condition New

Specifications

Country of Origin	India
Brand	Infineon
Height	0.95mm
Length	2.9mm
Model	TVS3V3L4UE6327HTSA1
Width	1.6mm
Mount Type	Surface
Series	TVS
Maximum Operating Temperature	125°C
Package Type	SC-74
Minimum Operating Temperature	-55°C
Pin Count	6
Clamping Voltage VC	4V
Diode Configuration	Array
Direction Type	Uni-Directional
Maximum Reverse Stand-off Voltage Vwm	3.3V
Peak Pulse Power Dissipation Pppm	1.04kW
Maximum Peak Pulse Current Ippm	20A
Maximum Reverse Leakage Current	50nA

Key Features

Provides unidirectional ESD protection suitable for high-speed data lines.
Features a maximum reverse stand-off voltage of 3.3 V for protective clamping.
Capable of handling a peak pulse current up to 20 A for transient voltage suppression.
Operates reliably from -55°C to 125°C temperature range.
Compliant with surge, transient, and ESD protection standards IEC61000-4-2, IEC61000-4-4, IEC61000-4-5.
Low leakage current of 50 nA ensures energy-efficient performance.
Pb-free, RoHS compliant package suitable for modern electronics manufacturing.

Product Description

Infineon TVS3V3L4UE6327HTSA1 is a uni-directional transient voltage suppressor (TVS) diode array designed for effective protection against electrostatic discharge (ESD) and surge transients in sensitive electronic circuits.

The 6-pin SC-74 package offers a compact footprint ideal for surface mounting in high-density assemblies. This TVS Diode Array provides a maximum peak pulse power dissipation of 1.04 kW and a peak pulse current capability of 20 A, enabling robust transient suppression for protecting power and signal lines from voltage spikes.

The device supports a maximum reverse stand-off voltage of 3.3 V with a clamping voltage of 4 V, suitable for protecting low-voltage components in consumer electronics, communication devices, and industrial control systems. It reliably operates over a wide temperature range from -55°C to 125°C, making it suitable for harsh environmental conditions.

Its low capacitance design ensures minimal signal distortion when used on high-speed data lines such as USB, HDMI, RF antennas, and IEEE1394 FireWire ports. The diode array is RoHS compliant and manufactured in a Pb-free package, supporting environmentally friendly electronics manufacturing.

Typical applications include desktop computers, cameras, notebooks, LCD displays, mobile communication cards, and automotive electronics requiring transient surge protection. Provides unidirectional ESD protection with low capacitance suitable for high-speed data lines.

Compact SC-74 package suited for surface mount technology (SMT) assembly. 1.04 kW peak pulse power dissipation for managing surge transients effectively. Wide operating temperature range from -55°C to 125°C for reliability.

Compliant with international surge and ESD standards IEC61000-4-2, IEC61000-4-4, IEC61000-4-5. Low reverse leakage current to minimize power loss during standby. Pb-free, RoHS compliant for sustainable electronics manufacturing.

Discover this Infineon TVS diode in EnvMart’s Semiconductor category for reliable transient voltage protection solutions tailored to modern electronic equipment design and manufacturing.
