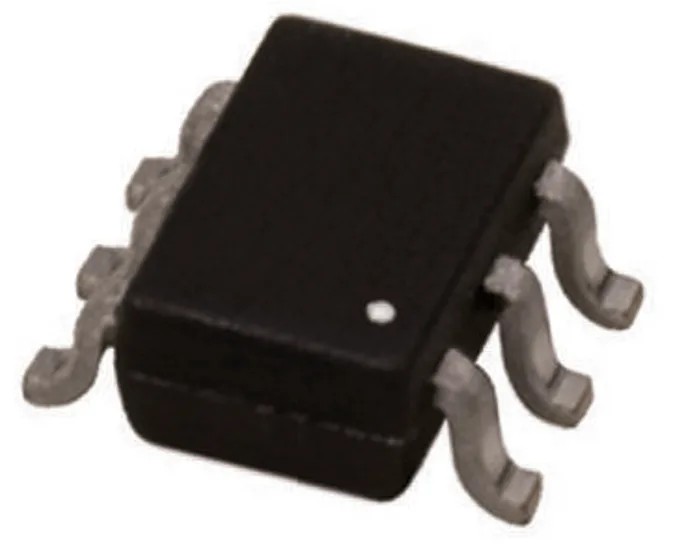

onsemi 5-Element Uni-Directional TVS Diode, 350 W, 6-Pin TSOP SMS15CT1G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 1mm |
| Length | 3.1mm |
| Model | SMS15CT1G |
| Width | 1.7mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 125°C |
| Package Type | TSOP |
| Minimum Operating Temperature | -40°C |
| Pin Count | 6 |
| Number of Elements per Chip | 5 |
| Clamping Voltage VC | 29V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Common Anode |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 17V |
| Maximum Reverse Stand-off Voltage Vwm | 15V |
| Peak Pulse Power Dissipation Pppm | 350W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 12A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- Common Anode configuration designed for efficient ESD protection.
- Uni-Directional direction type suitable for standard transient voltage suppression.
- Peak pulse power dissipation of 350 watts ensures robust transient handling.
- Six pins in a TSOP surface-mount package enables compact PCB integration.
- Clamping voltage of 29 V with a minimum breakdown voltage of 17 V for precise voltage control.
- Wide operating temperature range from -40°C to 125°C for reliable performance.
- Maximum reverse stand-off voltage of 15 V and maximum peak pulse current of 12 A.
- Low maximum reverse leakage current of 1 µA to minimize power loss.
Product Description
onsemi SMS15CT1G is a 5-element uni-directional transient voltage suppressor (TVS) diode array designed for effective ESD protection in electronic circuits. It features a common anode diode configuration within a compact 6-pin TSOP surface mount package, optimized for handling transient overvoltage events.
This diode array offers a peak pulse power dissipation rating of 350 W with a clamping voltage of 29 V, making it suitable for protecting sensitive semiconductor devices against voltage spikes and surges. Its minimum breakdown voltage of 17 V and maximum reverse stand-off voltage of 15 V ensure effective voltage suppression without compromising circuit stability.
The device operates reliably within a temperature range from -40°C to 125°C and complies with automotive quality standard AEC-Q101, making it an excellent choice for automotive and industrial applications requiring robust transient voltage protection.
With physical dimensions of 3.1 mm length, 1.7 mm width, and 1 mm height, the SMS15CT1G allows for high-density PCB layouts. Its low maximum reverse leakage current of 1 µA maintains energy efficiency during normal operation.
This TVS Diode Array is widely used in industrial electronics, automotive systems, instrumentation, and consumer electronics for transient voltage suppression and ESD immunity enhancement, ensuring device longevity and system reliability.
Common Anode configuration designed for efficient ESD protection. Uni-Directional direction type suitable for standard transient voltage suppression. 350 W peak pulse power dissipation rating for robust transient handling.
6-pin TSOP surface mount package for compact PCB integration. Clamping voltage of 29 V and minimum breakdown voltage of 17 V. Operating temperature range from -40°C to 125°C for reliable performance. Maximum reverse stand-off voltage of 15 V and peak pulse current of 12 A.
Low maximum reverse leakage current of 1 µA minimizes power loss. Automotive standard AEC-Q101 compliant for automotive electronics. Compact dimensions for use in space-constrained environments. Explore more semiconductor diode arrays and transient voltage suppressors at EnvMart for your industrial, automotive, and electronics design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SMS15CT1G has a peak pulse power dissipation rating of 350 watts, ensuring robust transient handling capabilities.
The clamping voltage of this model is 29 V, which helps protect sensitive components from voltage spikes.
The maximum reverse stand-off voltage for this diode is 15 V, which is crucial for effective voltage suppression.
The minimum breakdown voltage is 17 V, allowing for precise voltage control during operation.
This unit operates reliably within a temperature range of -40°C to 125°C, making it suitable for various environments.
The SMS15CT1G features 6 pins, designed for surface mount applications in compact PCB layouts.
It uses a common anode configuration, which is designed for efficient ESD protection.
The maximum peak pulse current for this model is 12 A, allowing it to handle significant transient events.
The maximum reverse leakage current is 1 µA, which helps minimize power loss during normal operation.
This diode complies with the automotive quality standard AEC-Q101, making it suitable for automotive applications.
The physical dimensions are 3.1 mm in length, 1.7 mm in width, and 1 mm in height, allowing for high-density PCB integration.
This model is designed for surface mounting, which is ideal for compact electronic circuits.
