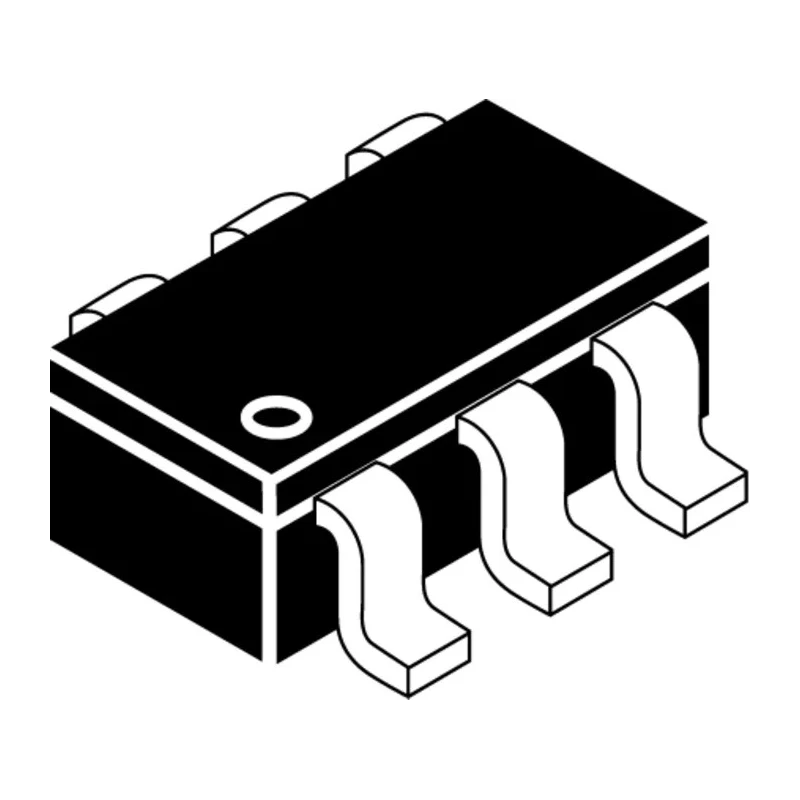

Infineon Uni-Directional TVS Diode Array 1.04 kW Peak Pulse Power Surface Mount SC-74 6-Pin TVS3V3L4UE6327HTSA1

Infineon TVS3V3L4UE6327HTSA1 uni-directional TVS diode array delivers 1.04 kW peak pulse power for effective transient voltage suppression in sensitive electronic equipment. Featuring a compact 6-pin SC-74 surface mount package, this device is optimized for high-speed data line protection in hardware such as USB, HDMI, RF antennas, and high-speed SIM cards.

The diode array supports a maximum reverse stand-off voltage of 3.3 V with a clamping voltage of 4 V, ensuring accurate suppression of voltage spikes. With a maximum peak pulse current rating of 20 A and low reverse leakage current of 50 nA, it balances robust protection with power efficiency.

Designed to operate within a temperature range of -55°C to 125°C, it is suitable for use in demanding industrial, commercial, and automotive electronics, although it is not certified for automotive standards. Compliance with IEC61000-4-2, IEC61000-4-4, and IEC61000-4-5 standards confirms its suitability for surge, transient, and ESD protection.

The device’s small height of 0.95 mm, length of 2.9 mm, and width of 1.6 mm enable compact PCB layouts. It is housed in a lead-free RoHS-compliant package supporting environmentally friendly manufacturing requirements.

This TVS Diode Array is ideal for protecting electronic circuits in industrial automation, consumer electronics, telecommunications, laboratory instruments, and other high-speed data applications.

Set includes a single 6-pin SC-74 packed component ready for surface mounting on printed circuit boards, enabling automated assembly processes and efficient production. Explore the full range of semiconductor protection devices and diodes at EnvMart for industrial and electronic component needs.

Uni-directional configuration ensures precise transient voltage suppression. Compact surface mount SC-74 package with 6 pins for space-efficient PCB design. Maximum reverse stand-off voltage of 3.3 V suitable for low-voltage applications.

Low leakage current below 50 nA providing minimal power loss. High peak pulse current capacity of 20 A safeguards against powerful ESD events. Operating temperature range from -55°C to 125°C supports harsh environments. Compliant with IEC61000-4-2, IEC61000-4-4, and IEC61000-4-5 surge, transient, and ESD protection standards.

Height, length, and width dimensions of 0.95 mm, 2.9 mm, and 1.6 mm, respectively, favor miniaturization. Lead-free RoHS compliant package suitable for environmentally conscious manufacturing.
