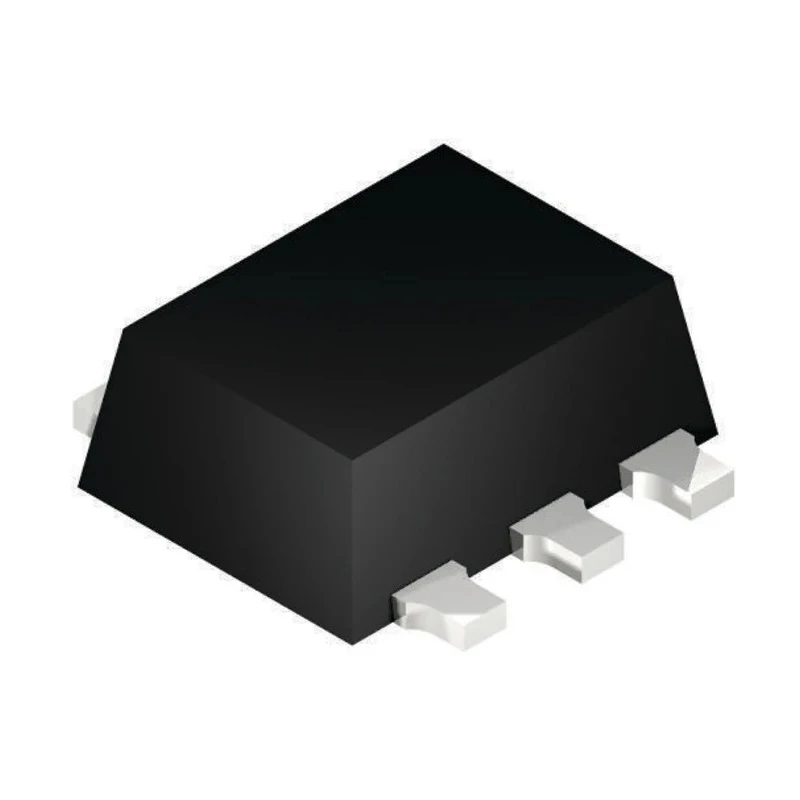

STMicroelectronics Uni-Directional 2-Element TVS Diode Array 6-Pin SOT-666 USBLC6-2P6
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 0.6mm |
| Length | 1.7mm |
| Model | USBLC6-2P6 |
| Width | 1.3mm |
| Mount Type | Surface |
| Series | USBLC6-2 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-666 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 6 |
| Number of Elements per Chip | 2 |
| Clamping Voltage VC | 17V |
| Diode Configuration | Complex Array |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 6V |
| Maximum Reverse Stand-off Voltage Vwm | 5V |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 5A |
| Maximum Reverse Leakage Current | 150nA |
| Electrostatic Discharge (ESD) prtotection for | DVI, HDMI, IEEE1394, USB, Ethernet & video lines |
Key Features
- Features a low capacitance design suitable for high-speed data lines.
- Equipped with a 6-pin SOT-666 surface mount package for easy PCB integration.
- Provides robust ESD protection compliant with IEC61000-4-2 level 4 standards.
- Operates reliably between -40°C and 125°C ambient temperatures.
- Has a minimum breakdown voltage of 6V and a clamping voltage of 17V to protect circuits against voltage spikes.
- Supports electrostatic discharge protection for interfaces including DVI, HDMI, IEEE1394, USB, Ethernet, and video lines.
- Maximum peak pulse current rating of 5A ensures transient suppression capabilities.
- Compact dimensions with length 1.7mm, width 1.3mm, and height 0.6mm.
Product Description
The STMicroelectronics USBLC6-2P6 is a uni-directional transient voltage suppressor (TVS) diode array optimized for electrostatic discharge (ESD) protection on sensitive data and power lines. Packaged in a compact 6-pin SOT-666 surface-mount device, it offers a robust 2-element diode array configuration that safeguards integrated circuits against transient voltage spikes and surges.
This device features a minimum breakdown voltage of 6 volts and a clamping voltage of 17 volts, providing effective protection for low voltage circuits. It supports a maximum peak pulse current of 5 amperes, enabling it to absorb high transient energy events such as ESD. The diode array complies with IEC61000-4-2 level 4 standards for ESD protection, making it ideal for protecting serial data bus interfaces including DVI, HDMI, IEEE1394, USB, Ethernet, and video lines.
With a compact footprint measuring 1.7 mm in length, 1.3 mm in width, and 0.6 mm in height, the USBLC6-2P6 allows high-density PCB layouts. Its robust operating temperature range of -40°C to 125°C ensures reliable operation in industrial and commercial electronic equipment applications.
This TVS diode array is specifically designed for surface mount technology (SMT) assembly processes, making it a practical choice for modern automated production lines. It minimizes board space while delivering high ESD robustness and circuit protection performance.
Low capacitance 2-element uni-directional TVS diode array. 6-pin SOT-666 package for surface mounting applications. IEC61000-4-2 Level 4 compliant ESD protection. Protects data lines for DVI, HDMI, USB, IEEE1394, Ethernet, and video interfaces.
Operating temperature from -40°C to 125°C. Clamping voltage 17V and minimum breakdown voltage 6V. Maximum peak pulse current 5A. Compact dimensions with length 1.7 mm, width 1.3 mm, height 0.6 mm. This product is widely used in industrial, telecommunications, consumer electronics, and computing applications where sensitive data lines require efficient ESD protection.
Explore more TVS Diode Arrays and semiconductor products in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The minimum breakdown voltage of this model is 6V, providing effective protection for low voltage circuits against transient voltage spikes.
The clamping voltage for the USBLC6-2P6 is 17V, which helps protect circuits from voltage surges.
This unit has a maximum peak pulse current rating of 5A, enabling it to absorb high transient energy events such as ESD.
It operates reliably within a temperature range of -40°C to 125°C, making it suitable for various industrial applications.
This model has compact dimensions of 1.7mm in length, 1.3mm in width, and 0.6mm in height, allowing for high-density PCB layouts.
It is packaged in a 6-pin SOT-666 surface mount package, which is suitable for SMT assembly processes.
The USBLC6-2P6 supports ESD protection for interfaces including DVI, HDMI, IEEE1394, USB, Ethernet, and video lines.
The maximum reverse stand-off voltage for the USBLC6-2P6 is 5V, ensuring safe operation in low voltage applications.
This model features a 2-element diode array configuration, providing robust protection for sensitive circuits.
The maximum reverse leakage current for this unit is 150nA, which is important for maintaining circuit integrity.
This device is part of the USBLC6 series, which is designed for effective ESD protection in electronic applications.
The test current for the USBLC6-2P6 is 1mA, which is used for evaluating the device's performance under specified conditions.
