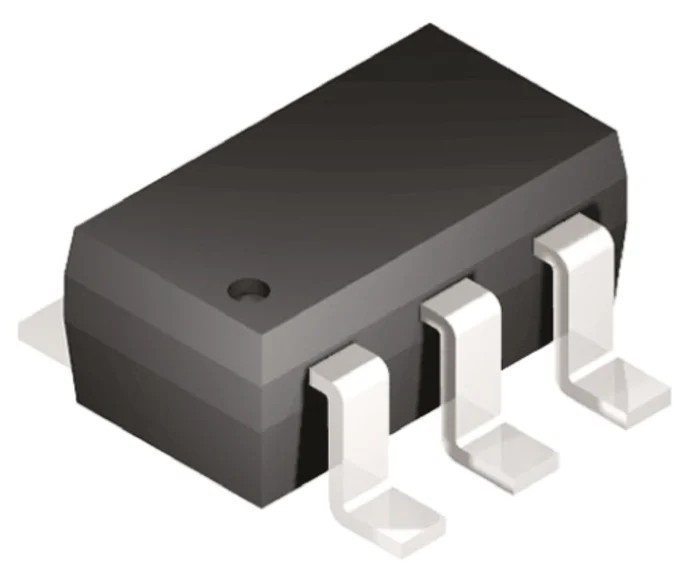

Wurth Elektronik Uni-Directional 4-Element TVS Diode Array 6-Pin SOT-23 6.1V Breakdown Voltage 12A Peak Pulse Current 824015

Wurth Elektronik 824015 is a uni-directional 4-element transient voltage suppressor (TVS) diode array in a compact 6-pin SOT-23 package, engineered for superior electrostatic discharge (ESD) protection in electronic circuit designs. It features a complex diode array configuration optimized for clamping high transient voltages and currents, protecting sensitive devices from voltage spikes and surges.

This TVS diode array has a minimum breakdown voltage of 6.1 volts and a maximum reverse stand-off voltage of 5 volts, allowing it to clamp transients at an efficient voltage level of 8.5 volts. With a maximum peak pulse current rating of 12 amperes, it offers robust surge current capability suitable for demanding ESD protection needs.

The device supports a broad operating temperature range from -55°C to 125°C, making it suitable for industrial, automotive, and consumer electronics applications. Its ultra-low maximum reverse leakage current of 5 microamperes reduces power loss, enhancing overall system efficiency.

Designed for surface mount technology, the SOT-23 package offers a height of 1.06 mm, length of 2.9 mm, and width of 1.6 mm, which facilitates high-density PCB layouts. This TVS Diode Array has 6 pins and integrates 4 elements per chip, providing comprehensive protection for multiple signal lines simultaneously.

Its application includes protection of interfaces such as USB 2.0, HDMI, DVI, Ethernet, Firewire, and serial bus connections from electrostatic discharge and transient voltage anomalies encountered in industrial, laboratory, and commercial electronics environments.

The Wurth Elektronik WE-TVS series are known for their reliable transient voltage suppression characteristics and are widely used in various semiconductor protection scenarios requiring effective ESD mitigation.

Features a complex array diode configuration with 4 elements per chip. Minimum breakdown voltage of 6.1 volts ensures effective transient voltage suppression. Supports a maximum peak pulse current of 12 amperes for high surge protection.

Compact SOT-23 surface mount package with 6 pins enhances PCB design flexibility. Operating temperature range from -55°C to 125°C suits various industrial applications. Low leakage current of 5 microamperes minimizes standby power loss.

Uni-directional design ensures effective clamping voltage at 8.5 volts. Applicable for USB 2.0, HDMI, DVI, Ethernet, Firewire, and serial bus ESD protection. For advanced electronic component requirements, explore the broad range of semiconductor devices and ESD protection solutions at EnvMart.
