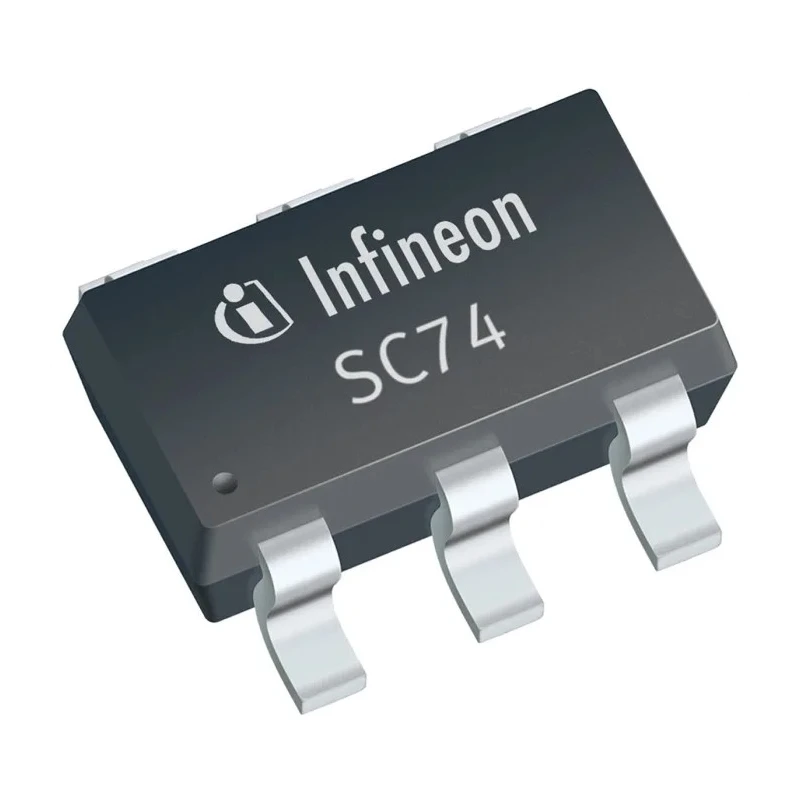

Infineon 5-Element Uni-Directional TVS Diode, 6-Pin SC-74 ESD5V5U5ULCE6327HTSA1

Infineon ESD5V5U5ULCE6327HTSA1 is a high-performance 5-element Uni-Directional Transient Voltage Suppression (TVS) diode housed in a compact 6-pin SC-74 surface mount package, engineered for protecting sensitive electronic components from voltage transients and electrostatic discharge events. With a maximum reverse standoff voltage of 5.5V and a clamping voltage of 9.2V, this TVS diode efficiently clamps voltage spikes to safeguard circuits in demanding industrial, automotive, and consumer electronics applications.

The device features a maximum peak pulse current rating of 6A, enabling it to absorb high surge currents, ensuring robustness during ESD events. Its operating temperature range from -40°C to 125°C provides reliability in harsh environmental conditions, supporting use in automotive systems and industrial control equipment. The complex array diode configuration with 5 elements per chip enhances protection coverage within a minimal footprint of 2.9mm length, 1.6mm width, and 0.95mm height.

This TVS diode is surface mounted with 6 pins, allowing straightforward integration on printed circuit boards (PCB) for effective ESD and transient voltage protection. The low maximum reverse leakage current of 100nA ensures efficient and low-power operation, critical for sensitive electronic designs. While no specific industry standards or automotive certifications apply, it is optimized for general ESD protection roles across various electronic sectors.

Surface mount SC-74 package ensuring compact PCB footprint. Uni-Directional diode configuration suitable for single polarity voltage transients. 5-element complex array for enhanced transient absorption capability. Wide operating temperature range supporting automotive and industrial environments.

Low leakage current to maintain circuit integrity and reduce power loss. Suitable for protecting sensitive electronic components from ESD and voltage spikes. Ideal for use in power supply rails, signal lines, and interface protection.

Compact dimensions facilitate usage in space-constrained applications. Designed for electronic manufacturers requiring efficient and reliable ESD protection devices. Contributes to improved production efficiency with ready-to-install reel packaging options.
