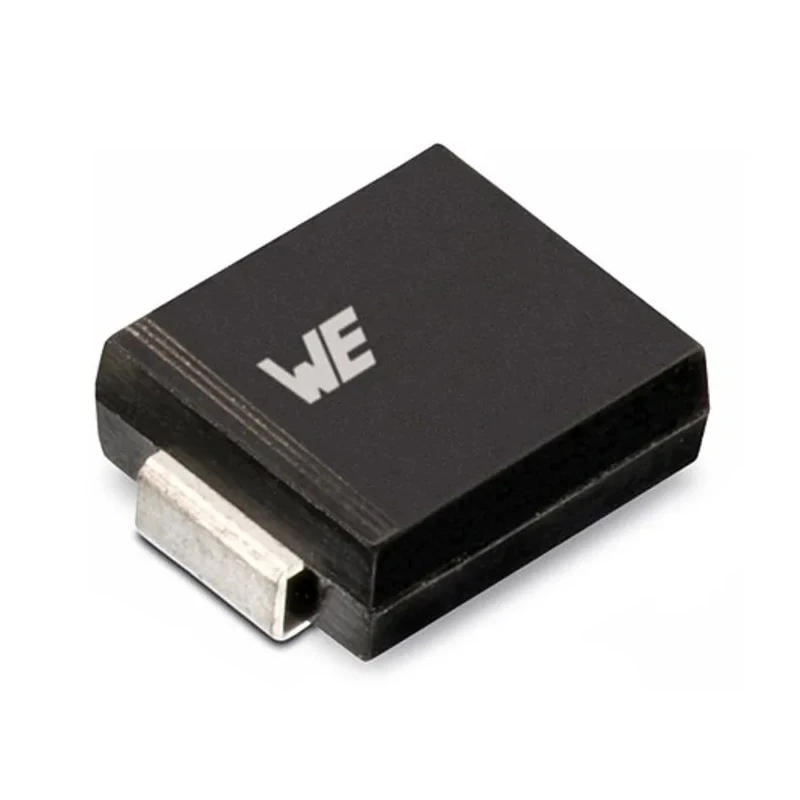

Wurth Elektronik 1-Element Bi-Directional TVS Diode 1.5 kW Peak Pulse Power, 2-Pin DO-214 824541361

Wurth Elektronik 824541361 is a 1-element bi-directional Transient Voltage Suppressor (TVS) diode designed to protect sensitive electronic components from voltage spikes by safely diverting surge current in both directions.

With a peak pulse power dissipation rating of 1.5 kW, it efficiently suppresses transient voltages caused by electrostatic discharge, lightning, or inductive load switching. The diode uses a single-element configuration suitable for compact circuitry, packaged in a DO-214 2-pin surface mount form factor optimized for space-saving PCB assembly.

Electrical characteristics include a minimum breakdown voltage of 42.1 V and a clamping voltage of 58.1 V, ensuring reliable conduction during voltage transients while maintaining low leakage current of 1 μA under normal operation. It can withstand a maximum peak pulse current of 25.9 A, making it suitable for transient events in industrial, commercial, and electronic equipment environments.

The device operates reliably across a broad temperature range from -65°C to 150°C, supported by a glass passivated junction that provides fast response times to transient events. Its compact dimensions (6.86 mm length, 5.9 mm width, 2.34 mm height) facilitate easy integration into various surface mount applications requiring transient voltage protection.

Wurth Elektronik products are widely used in industrial automation, power supplies, telecommunications, and electronic manufacturing for safeguarding circuits and improving equipment longevity.

The diode has a single element and bi-directional design. It offers a peak pulse power dissipation of 1.5 kW for transient suppression. Surface mount DO-214 package provides a low profile solution. Wide operating temperature range supports harsh industrial environments.

Low leakage current minimizes power loss during normal operation. Compact dimensions enable flexible PCB layout options. Fast transient response protects sensitive semiconductor components. Manufactured in China with consistent quality standards.

Not certified for automotive applications. Suitable for use in industrial, laboratory, and commercial electrical protection systems. Explore more TVS Diodes and semiconductor components at EnvMart to meet your electronic circuit protection needs with leading brands like Wurth Elektronik.
