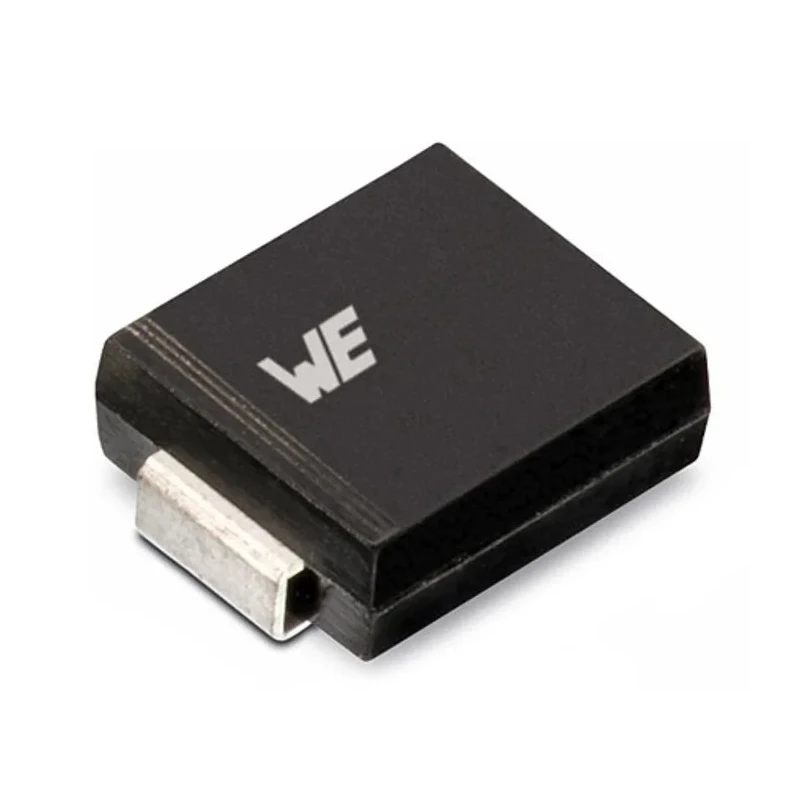

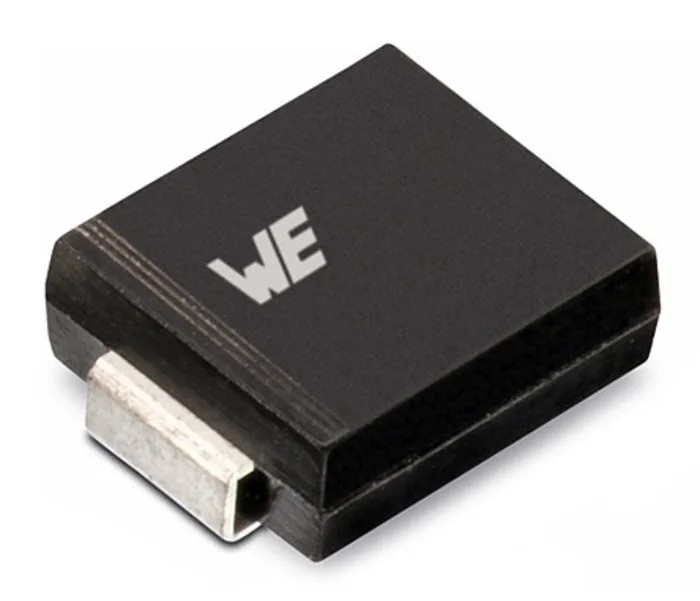

Wurth Elektronik 1-Element Bi-Directional TVS Diode, 1.5 kW, 2-Pin Surface Mount DO-214 Package 824541241

Wurth Elektronik 824541241 is a 1-Element Bi-Directional Transient Voltage Suppressor (TVS) diode designed to protect sensitive electronic components from voltage spikes and transient surges. Featuring a peak pulse power dissipation of 1.5 kW, this diode is housed in a compact DO-214 surface mount package with a 2-pin configuration, allowing for efficient PCB assembly and space-saving integration.

This TVS diode has a minimum breakdown voltage of 28.1 volts and a clamping voltage of 38.9 volts, offering precise and reliable voltage suppression to protect against transient overvoltages. The diode maintains performance across a wide operating temperature range from -65°C to 150°C, making it suitable for harsh industrial environments and automotive applications where temperature extremes are common.

With a maximum peak pulse current rating of 38.6 amperes, it can effectively handle high surge currents without damage. The glass passivated junction technology ensures fast response times to voltage spikes, providing optimal circuit protection. Its compact dimensions (6.86 mm length, 5.9 mm width, and 2.34 mm height) enable it to fit in tight spaces on printed circuit boards.

This Wurth Elektronik TVS diode is ideal for use in industrial power supplies, automotive electronics, telecommunications, and other electronic circuits requiring protection from transient voltages. Its bidirectional nature allows protection on both positive and negative voltage transients.

Bi-directional diode suitable for transient voltage suppression. Single element design with 2-pin configuration. Minimum breakdown voltage of 28.1 volts supports robust protection. Compact dimensions: 6.86 mm length, 5.9 mm width, 2.34 mm height.

Clamping voltage rated at 38.9 volts ensures reliable operation. Operating temperature range from -65°C up to 150°C for diverse environments. Maximum peak pulse current of 38.6 amperes handling high surge currents. Fast response time with glass passivated junction technology.

Designed for surface mount applications with DO-214 package type. Ideal for electronic component protection in industrial and automotive circuits.

For engineers and designers seeking dependable transient voltage protection components, this Wurth Elektronik TVS Diode series emphasizes quality, durability, and industry-standard compliance. Browse EnvMart's extensive electronics components catalog for complementary power and protection devices.
