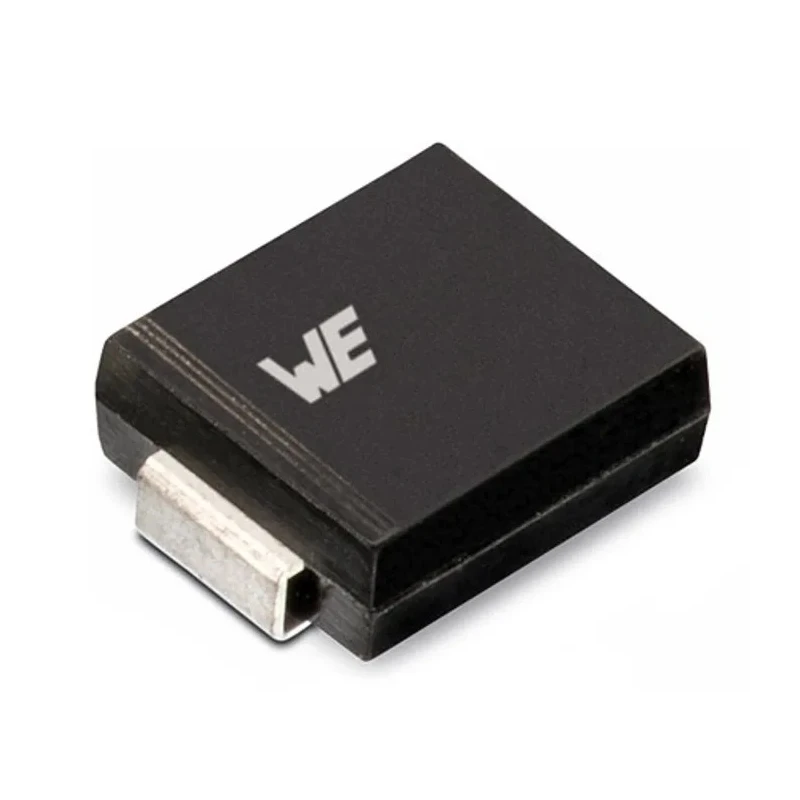

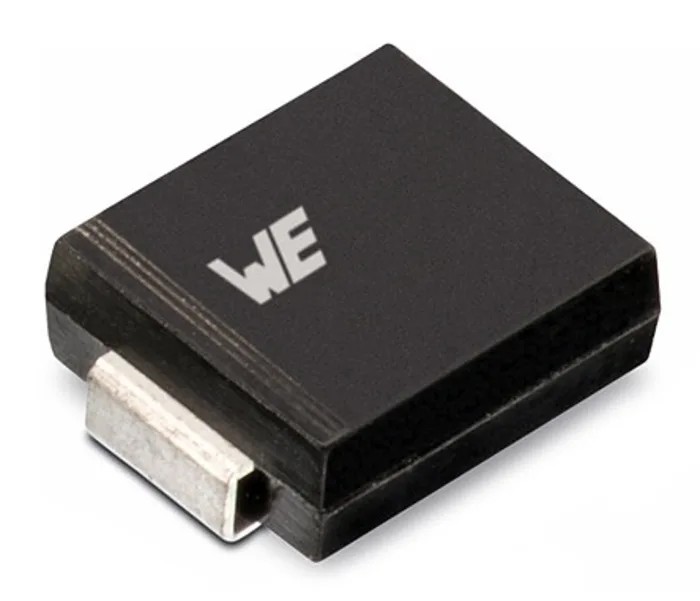

Wurth Elektronik 1-Element Bi-Directional TVS Diode Surface Mount DO-214 Package 1.5 kW 35.05V Breakdown Voltage 824541301

Category TVS Diode Brand Wurth Elektronik Condition New

Specifications

Country of Origin China
Brand Wurth Elektronik
Height 2.34mm
Length 6.86mm
Width 5.9mm
Mount Type Surface
Series WE-TVSP
Maximum Operating Temperature 150°C
Package Type DO-214
Minimum Operating Temperature -65°C
Pin Count 2
Number of Elements per Chip 1
Clamping Voltage VC 48.4V
Diode Configuration Single
Direction Type Bi-Directional
Minimum Breakdown Voltage Vbr 35.05V
Peak Pulse Power Dissipation Pppm 1.5kW
Test Current It 1mA
Maximum Peak Pulse Current Ippm 31A
Maximum Reverse Leakage Current 1μA

Key Features

  • Provides bidirectional transient voltage suppression for protection against voltage spikes.
  • Equipped with a glass passivated junction for fast response times.
  • Compact low profile DO-214 package measuring 6.86 mm length and 5.9 mm width.
  • Operates reliably from -65°C to 150°C for a wide temperature range.
  • Maximum peak pulse current of 31 A for robust surge protection.
  • Minimal leakage current of 1 μA ensures low power loss in circuits.
  • Designed for surface mount applications with 2-pin configuration.
  • Manufactured in China under the WE-TVSP series by Wurth Elektronik.

Product Description

Wurth Elektronik 824541301 is a 1-element bi-directional TVS diode designed for efficient transient voltage suppression in electronic circuits. This discrete semiconductor component provides robust protection against high energy voltage surges up to 1.5 kilowatts peak pulse power.

The device features a single diode configured for bidirectional operation, suitable for both AC and DC voltage spike suppressions. It comes housed in a low-profile DO-214 package with dimensions of 6.86 mm length, 5.9 mm width, and a height of 2.34 mm, optimized for compact PCB surface mounting.

The diode exhibits a minimum breakdown voltage of 35.05 volts and a clamping voltage of 48.4 volts, ensuring effective voltage clamp during transients. It supports test current at 1 mA and can handle maximum peak pulse currents of 31 amperes, making it ideal for protecting sensitive electronics in power and signal lines.

Operational temperature range spans from -65°C to 150°C, suitable for industrial, automotive, and consumer electronic applications requiring reliable surge protection under various environmental conditions. The maximum reverse leakage current is nominal at 1 microampere, which helps in minimizing standby power dissipation.

It is intended for applications in electronic components, power connectors, semiconductors, and discrete semiconductor categories. It supports usage in industrial, manufacturing, and electronic circuit protection contexts.

Provides bidirectional transient voltage suppression for protection against voltage spikes. Equipped with a glass passivated junction for fast response times. Compact low profile DO-214 package measuring 6.86 mm length and 5.9 mm width.

Operates reliably from -65°C to 150°C for a wide temperature range. Maximum peak pulse current of 31 A for robust surge protection. Minimal leakage current of 1 μA ensures low power loss in circuits. Designed for surface mount applications with 2-pin configuration.

Manufactured in China under the WE-TVSP series by Wurth Elektronik.

Explore more electronic components and semiconductor protection devices at EnvMart to support your industrial, laboratory, or commercial electronics manufacturing needs. Discover a wide range of reliable TVS Diodes including Wurth Elektronik quality and performance.

Wurth Elektronik 1-Element Bi-Directional TVS Diode Surface Mount DO-214 Package 1.5 kW 35.05V Breakdown Voltage 824541301
Looking to purchase in bulk?
  • Purchase item in bulk quantity
  • Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The minimum breakdown voltage of this model is 35.05 volts, providing effective voltage clamp during transients.

This unit can handle a maximum peak pulse current of 31 amperes, ensuring robust surge protection.

The DO-214 package measures 6.86 mm in length, 5.9 mm in width, and has a height of 2.34 mm.

It operates reliably within a temperature range of -65°C to 150°C, making it suitable for various applications.

The clamping voltage for this model is 48.4 volts, which helps in protecting sensitive electronics during voltage surges.

This diode features a single element configuration, designed for efficient transient voltage suppression.

It is designed for surface mount applications with a 2-pin configuration, suitable for compact PCB layouts.

The maximum reverse leakage current is nominally 1 microampere, which minimizes power loss in circuits.

The test current for this model is 1 mA, which is used for evaluating its performance under standard conditions.

This model is part of the WE-TVSP series by Wurth Elektronik, designed for transient voltage suppression applications.

It is intended for use in electronic components, power connectors, and semiconductor protection in various industrial and consumer applications.

The peak pulse power dissipation rating for this diode is 1.5 kilowatts, providing effective protection against voltage spikes.
