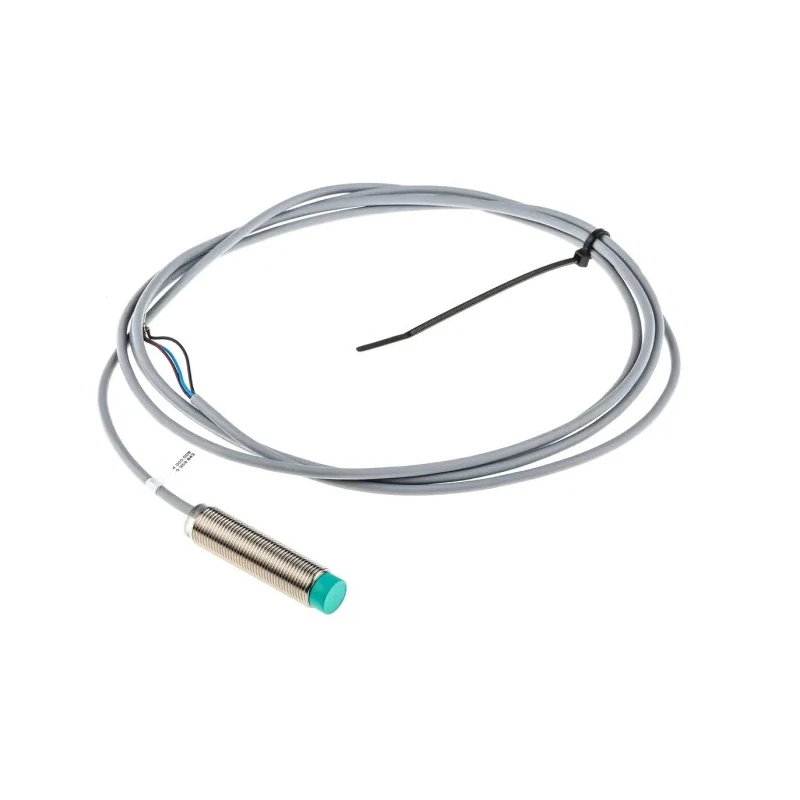

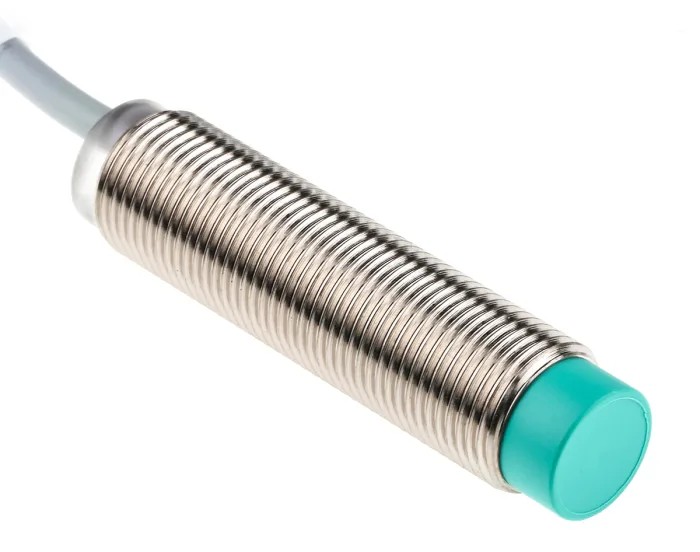

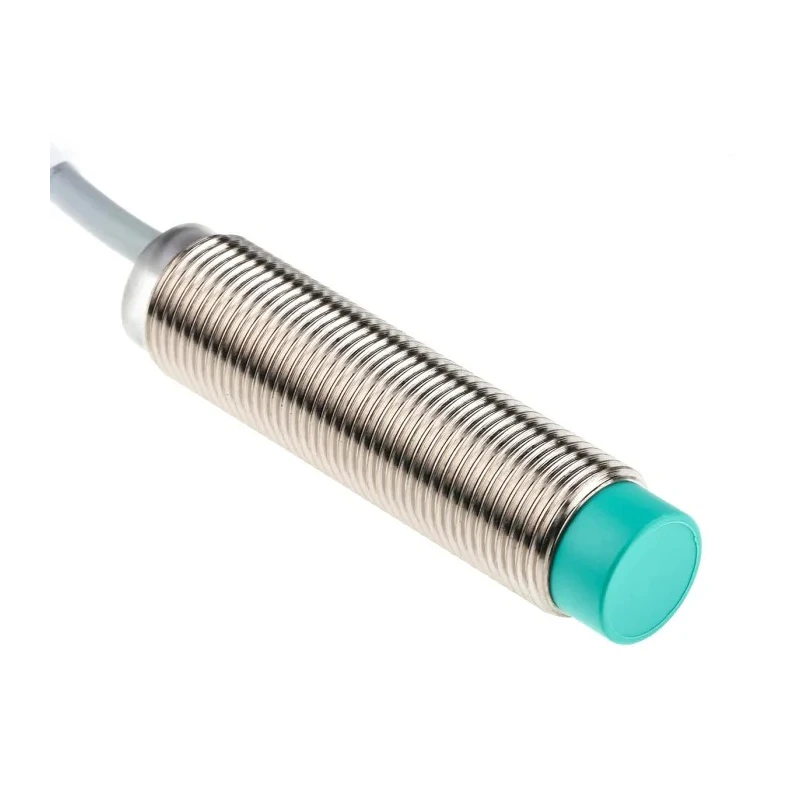

Pepperl + Fuchs Threaded Barrel Inductive Proximity Sensor M12 PNP 36V 200mA 4 mm Detection NBN4-12GM50-E2
Specifications
| Country of Origin | Vietnam |
|---|---|
| Brand | Pepperl + Fuchs |
| Length | 50mm |
| Model | NBN4-12GM50-E2 |
| Depth | 12mm |
| IP Rating | IP68 |
| Width | 12mm |
| Mount Type | Non-Flush |
| Housing Material | Brass White Bronze Coated |
| Output type | PNP |
| Maximum Operating Temperature | 85°C |
| Thread Size | M12 |
| Minimum Operating Temperature | -40°C |
| Switching Current | 200mA |
| Terminal type | Pre-Cabled |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 36V dc |
| Shielding | Unshielded |
| Maximum Switching Frequency | 2.65kHz |
| Standards/Approvals | DNV GL rules for classification - Ships |
| Maximum Supply Voltage | 36V |
| Maximum Detection | 4mm |
Key Features
- Robust M12 threaded barrel design with 50 mm length ensures easy installation.
- PNP output type suitable for industrial automation control.
- Operating voltage up to 36 V DC with maximum switching current of 200 mA.
- Unshielded sensor requiring non-flush mounting for extended sensing distance.
- Housing made of brass with white bronze coating for enhanced durability.
- IP68 rated protection enables operation in harsh environments.
- Wide operating temperature range from -40°C to 85°C for versatile applications.
- Maximum switching frequency of 2.65 kHz supports fast detection cycles.
Product Description
Pepperl + Fuchs NBN4-12GM50-E2 is a high-quality threaded barrel inductive proximity sensor designed for industrial automation applications requiring non-contact detection of metal objects. Featuring a robust M12 diameter and 50 mm length, this sensor provides a sensing range of 4 mm with a PNP output type, delivering reliable signal switching at up to 36 V DC supply voltage and 200 mA current.
The sensor's brass housing with a white bronze coating ensures resistance to environmental wear, combined with an IP68 ingress protection rating suitable for demanding conditions. Its unshielded design requires non-flush mounting but offers increased sensing distance compared to shielded types, making it versatile for various metal detection tasks in manufacturing, process automation, robotics, and material handling.

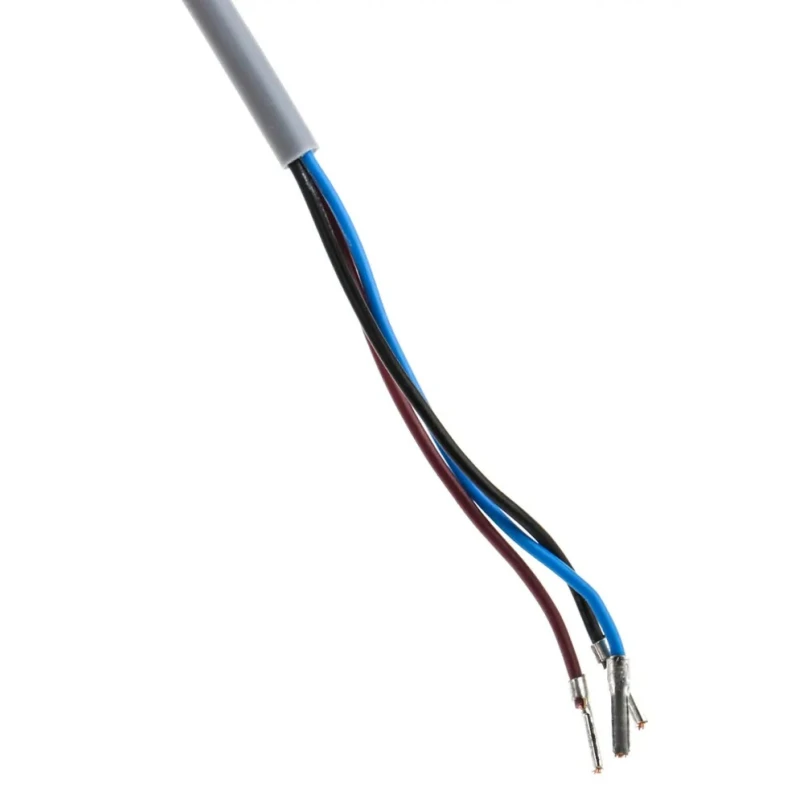

With an operating temperature range from -40°C to 85°C and a maximum switching frequency of 2.65 kHz, the NBN4-12GM50-E2 supports rapid detection cycles in both cold and hot industrial environments. The sensor comes with a pre-cabled terminal featuring a durable 2-meter PVC cable, facilitating a straightforward installation.
Robust threaded barrel housing (M12 diameter, 50 mm length). PNP output for seamless integration with control systems. Unshielded sensor optimized for non-flush mounting. IP68 protection for water and dust resistance. Wide operating temperature from -40°C to 85°C.
High switching frequency of 2.65 kHz for fast response. Durable brass housing with white bronze coating. Pre-cabled with 2 m PVC cable for easy wiring. Compliant with DNV GL classification rules for ship applications.
This sensor is ideal for industrial, manufacturing, automation, robotics, and marine applications where reliable metal detection is critical. It ensures consistent performance in challenging environments, minimizing maintenance and downtime.
Explore the Pepperl + Fuchs range of Proximity Sensors at EnvMart to find the right fit for your industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection range of the NBN4-12GM50-E2 is 4 mm.
This model features a PNP output type, suitable for integration with industrial automation control systems.
The maximum operating voltage for this sensor is 36 V DC.
The maximum switching current for the NBN4-12GM50-E2 is 200 mA.
The sensor has a length of 50 mm, a width of 12 mm, and a depth of 12 mm.
This sensor has an IP68 rating, indicating it is protected against dust and can withstand water immersion.
The operating temperature range for the NBN4-12GM50-E2 is from -40°C to 85°C.
This model requires non-flush mounting due to its unshielded design, which allows for an extended sensing distance.
The maximum switching frequency of this sensor is 2.65 kHz, supporting fast detection cycles.
The housing of the NBN4-12GM50-E2 is made of brass with a white bronze coating for enhanced durability.
Yes, it complies with DNV GL rules for classification, making it suitable for marine applications.
The NBN4-12GM50-E2 comes with a pre-cabled terminal featuring a durable 2-meter PVC cable for easy installation.
