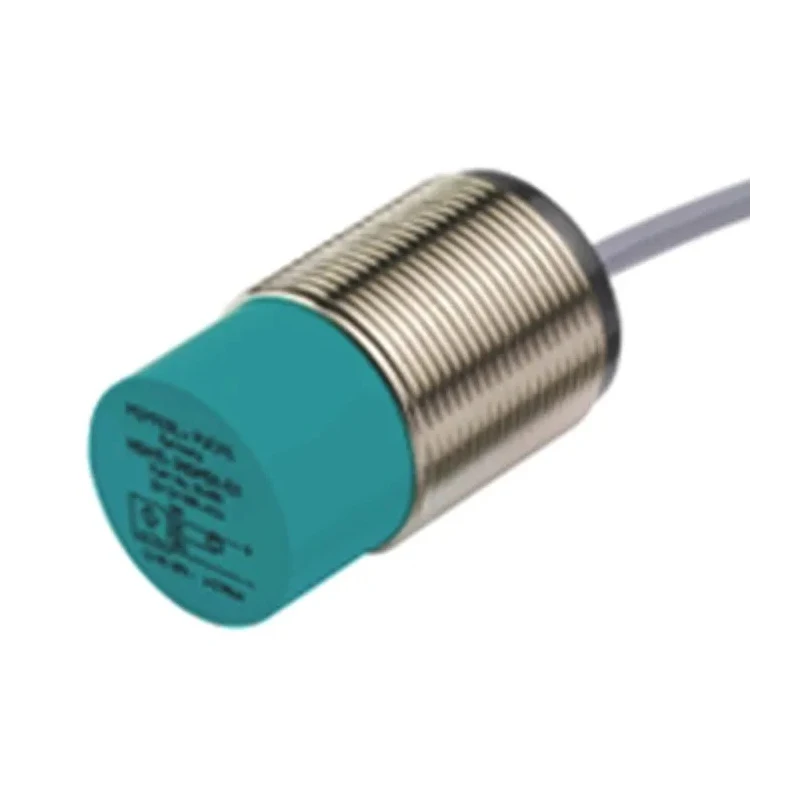

RS PRO Threaded Barrel Inductive Proximity Sensor, M30, NPN Output, 36 V DC, 15 mm Detection, IP68, Brass NBN15-30GM50-E0
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | RS PRO |
| Length | 50mm |
| Model | NBN15-30GM50-E0 |
| Depth | 30mm |
| IP Rating | IP68 |
| Width | 30mm |
| Mount Type | Non-Flush |
| Housing Material | Brass White Bronze Coated |
| Output type | NPN |
| Series | NBN40-U1-E0 |
| Maximum Operating Temperature | 85°C |
| Thread Size | M30 |
| Minimum Operating Temperature | -40°C |
| Switching Current | 200mA |
| Terminal type | Pre-Cabled |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 36V dc |
| Shielding | Unshielded |
| Maximum Switching Frequency | 1.15kHz |
| Standards/Approvals | DNV GL rules for classification - Ships |
| Maximum Supply Voltage | 36V |
| Maximum Detection | 15mm |
Key Features
- Features a threaded barrel body with M30 thread size for secure mounting.
- Operates at a maximum supply voltage of 36 V DC with a switching current up to 200 mA.
- Constructed with brass and white bronze coating ensuring durability and corrosion resistance.
- Rated IP68 for water and dust resistance suitable for harsh industrial environments.
- Offers a maximum switching frequency of 1.15 kHz for fast and reliable signal output.
- Includes LED indication for operational status monitoring.
- Equipped with NPN output type and pre-cabled terminals for easy integration.
- Designed to operate in temperatures ranging from -40°C to 85°C.
Product Description
Pepperl + Fuchs NBN15-30GM50-E0 is a high-performance Threaded Barrel Inductive Proximity Sensor designed for industrial automation and control applications. This sensor features an M30 thread size with a sturdy brass body coated with white bronze ensuring excellent mechanical and chemical resistance under harsh conditions.
Operating at a maximum DC voltage of 36 V and capable of handling up to 200 mA switching current, this NPN output sensor provides reliable non-contact object detection with a sensing distance of up to 15 mm. It offers IP68 ingress protection making it waterproof and dust-tight, ideal for demanding environments like manufacturing floors, marine applications, and processing plants.
The sensor supports non-flush mount installations and comes pre-cabled for straightforward electrical connections. With a maximum switching frequency of 1.15 kHz and LED indication for operation status, it ensures swift, visible feedback for system diagnostics.
This inductive proximity sensor is widely used in industrial automation settings including conveyors, packaging machines, robotics, water treatment plants, and material handling systems to reliably detect metallic objects without physical contact, improving process efficiency and safety.
Thread Size: M30 for robust mounting solutions. Body material: Brass with white bronze coating for durability. Operating voltage: 36 V DC max with 200 mA switching current. Ingress protection: IP68 for dust and water resistance.
Operating temperature range: -40°C to 85°C for versatile environmental use. Output type: NPN with pre-cabled connection. Maximum detection distance: 15 mm for precise sensing. Non-flush mounting capability with unshielded sensor type.
Compliant with DNV GL rules suitable for maritime usage. LED indicator for operational status monitoring.
Choose the Pepperl + Fuchs NBN15-30GM50-E0 sensor for reliable, rugged, and precise inductive sensing in your automation systems. Explore further options in Proximity Sensors and automation control gear with EnvMart for comprehensive industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection distance of this model is 15 mm, allowing for precise non-contact sensing of metallic objects.
It operates at a maximum supply voltage of 36 V DC, making it suitable for various industrial applications.
This unit features an NPN output type, which is commonly used for switching applications in automation systems.
This sensor has an IP68 rating, indicating it is both dust-tight and resistant to water, suitable for harsh environments.
The housing is made of brass with a white bronze coating, providing durability and corrosion resistance.
The maximum switching current for this proximity sensor is 200 mA, allowing it to handle significant loads in automation tasks.
It operates effectively within a temperature range of -40°C to 85°C, making it versatile for different environments.
It is designed for non-flush mounting, which allows for easier installation in various applications.
This model has a maximum switching frequency of 1.15 kHz, enabling fast and reliable signal output.
Yes, it is equipped with an LED indicator that shows the operational status, providing visible feedback for diagnostics.
It complies with DNV GL rules for classification of ships, making it suitable for maritime applications.
The thread size of this sensor is M30, which ensures secure mounting in various setups.
