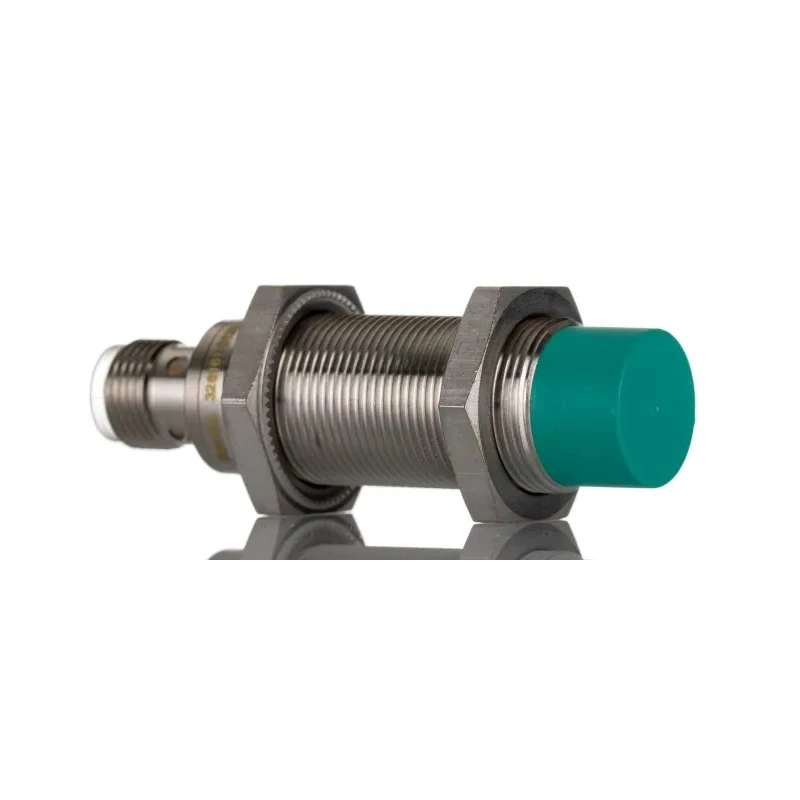

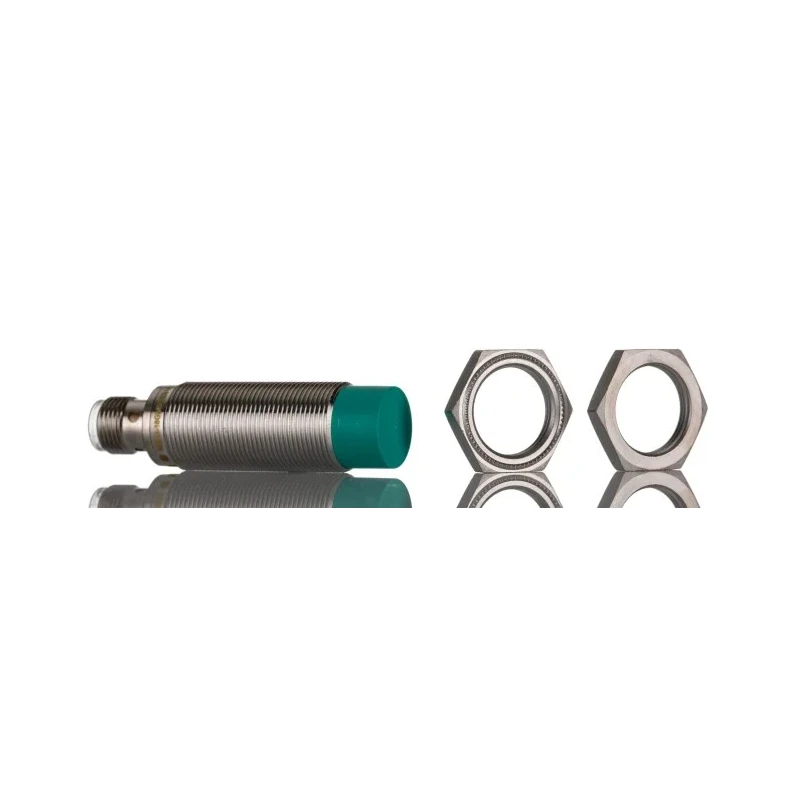

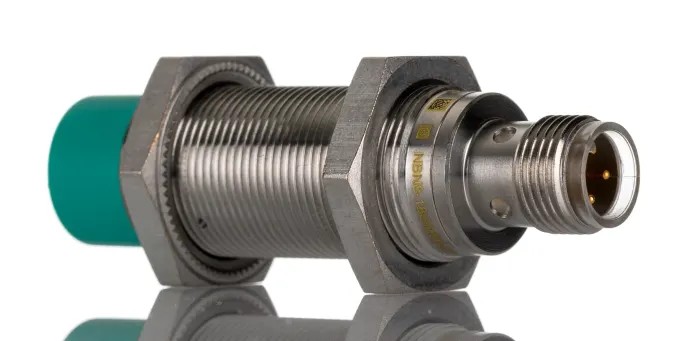

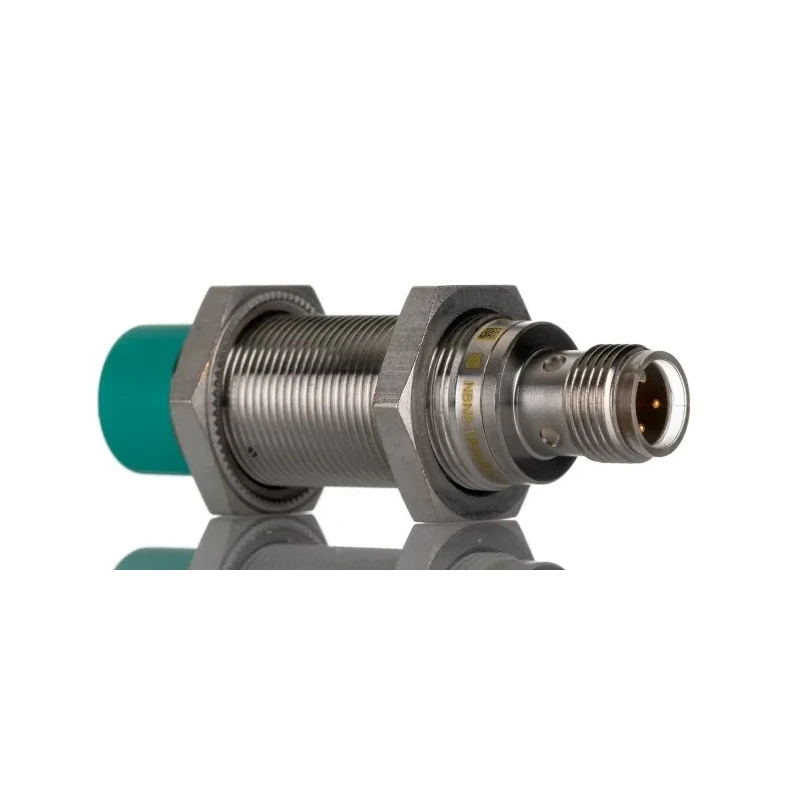

Pepperl + Fuchs Threaded Barrel Inductive Proximity Sensor M18 PNP 36V 200mA 8mm Detection NBN8-18GM50-E2-V1

Pepperl + Fuchs NBN8-18GM50-E2-V1 threaded barrel inductive proximity sensor is designed for robust industrial automation applications. It operates on a 36 V dc supply voltage and offers a precise detection distance of 8 mm, making it suitable for position sensing in machinery and process control systems.

The sensor body is constructed from brass with a white bronze coating, providing corrosion resistance and extended service life in rugged environments. Its IP68 protection provides complete dust-tight sealing and protection against water ingress, allowing reliable operation in harsh conditions.

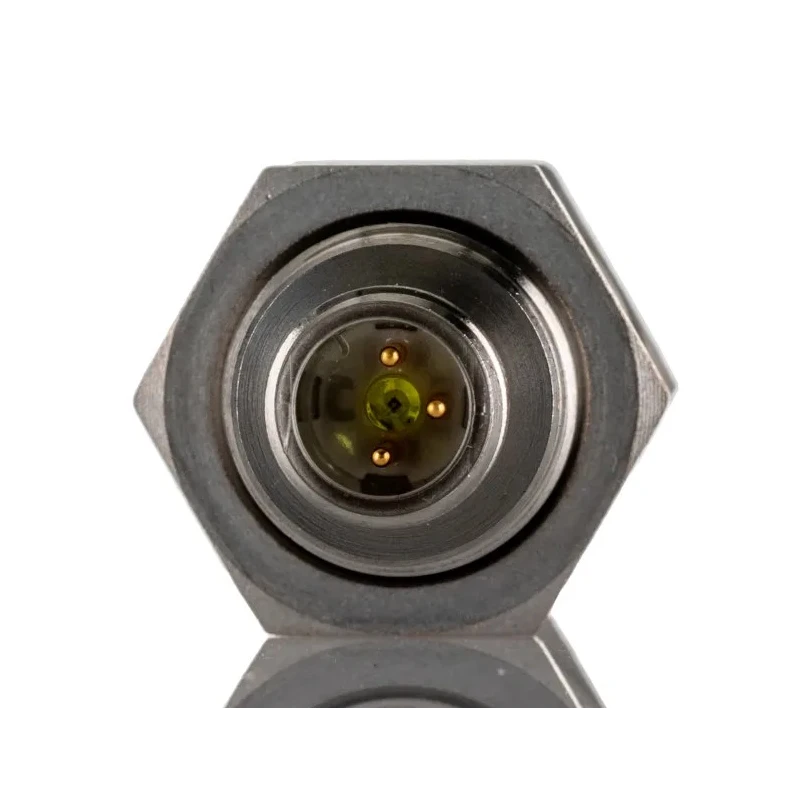

This non-flush mount sensor features a threaded barrel shape with M18 thread size and 65 mm length, enabling easy and secure installation in various setups. The 4-pin M12 terminal connection allows seamless integration into existing electrical systems.

Designed for fast switching, the sensor supports a maximum switching frequency of 1.65 kHz and a switching current of 200 mA. It also includes built-in short circuit and reverse polarity protection enhancing operational safety and equipment longevity.

The sensor performs reliably across a wide temperature range from -40°C to 85°C and complies with international standards including cULus, EN 60947, and IEC 60947. The unshielded design enables an extended sensing range suitable for diverse proximity sensing applications.

The sensor body is brass with white bronze coating for enhanced durability. Threaded barrel form factor with M18 thread and 65 mm length. IP68 rated for dust-tight and waterproof protection. PNP output with switching current of 200 mA for reliable switching signals.

Short circuit and reverse polarity protection built-in. Operating temperature range from -40°C to 85°C supports harsh environments. Maximum switching frequency of 1.65 kHz enables fast response. 4-pin M12 terminal connection for flexible wiring.

Unshielded sensing for applications requiring extended detection range.

This Pepperl + Fuchs inductive proximity sensor is ideal for industrial automation, manufacturing, process control, and machine monitoring systems requiring precise and reliable proximity detection. Its robust construction and high performance ensure dependable operation in demanding environments.
