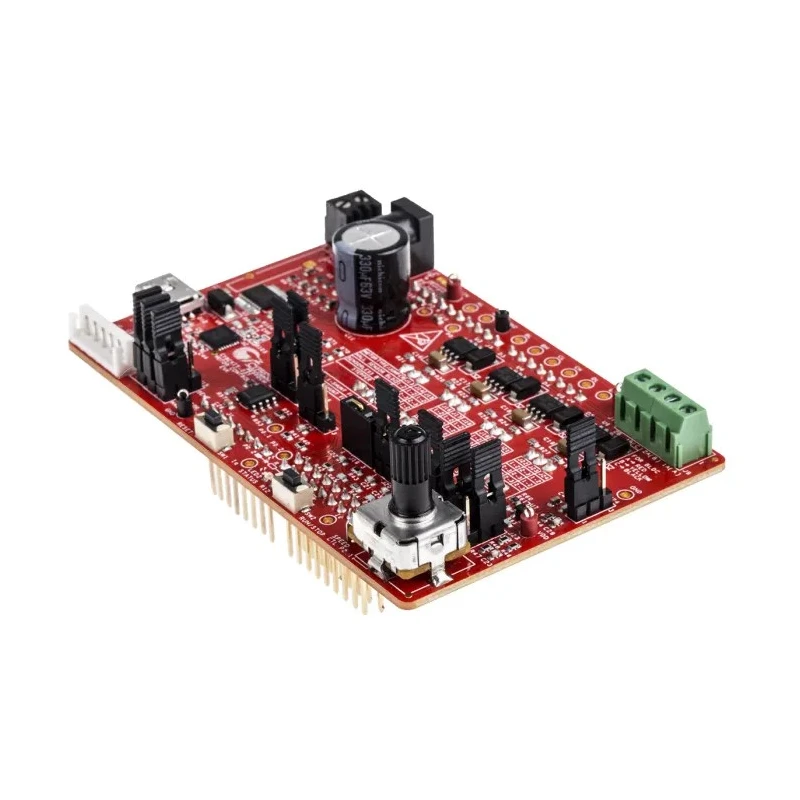

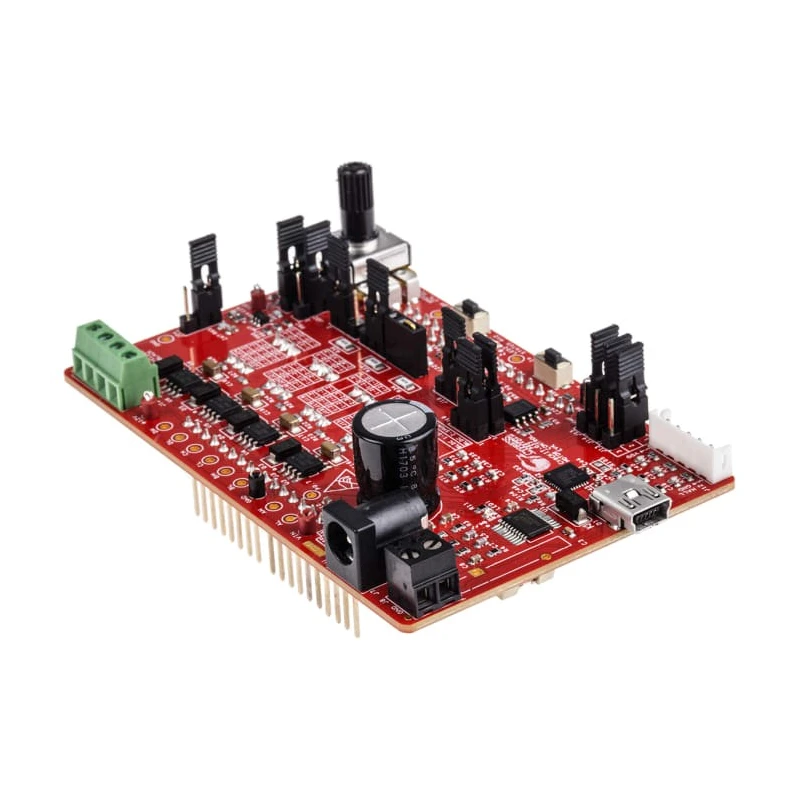

Infineon PSoC 4 Pioneer Kit Motor Controller CY8CKIT-037
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Model | CY8CKIT-037 |
| Interfaces | USB-UART Bridge controller |
| Kit Name | PSoC 4 Pioneer Kit |
Key Features
- Supports BLDC, PMSM and Stepper motor types for versatile motor control.
- Includes 4 IR2101 MOSFET gate drivers and 8 IRFU3607 power MOSFETs configured as 4 half-bridges.
- Phase current detecting and processing circuit for precise motor control.
- Equipped with Hall and Back-EMF sensing circuits for accurate rotor position feedback.
- Features potentiometer for manual speed control and status LEDs for real-time monitoring.
- Includes USB-UART bridge controller for easy PC interface connectivity.
- Supplied with 24V 2A power adapter, BLDC motor with sinusoidal back-EMF, USB cable, configuration jumpers, fuse, screwdriver and quick start guide.
Product Description
Infineon CY8CKIT-037 PSoC 4 Pioneer Kit Motor Controller is a specialized evaluation kit designed for developing and testing DC motor control applications including Brushless DC (BLDC), Permanent Magnetic Synchronous Motors (PMSM), and Stepper motors.
This kit integrates advanced power management components such as four IR2101 high side/low side MOSFET gate drivers and eight IRFU3607 power MOSFETs arranged as four half-bridge drivers to enable efficient motor power control.
The phase current detection circuit and Hall and Back-EMF sensing circuits provide precise feedback to ensure accurate and responsive motor operation. The inclusion of a potentiometer allows manual adjustment of motor speed, while the reset and run/stop pushbuttons facilitate easy operation and control during development.
The kit is powered by a LM5005MHX switching regulator delivering +12V at 600mA, and includes multiple connectivity options including a mini USB port for PC connection, screw terminals for motor windings and power supply inputs, and an Arduino-format shield header for interfacing with the CY8CKIT-042 Pioneer Kit controller board.

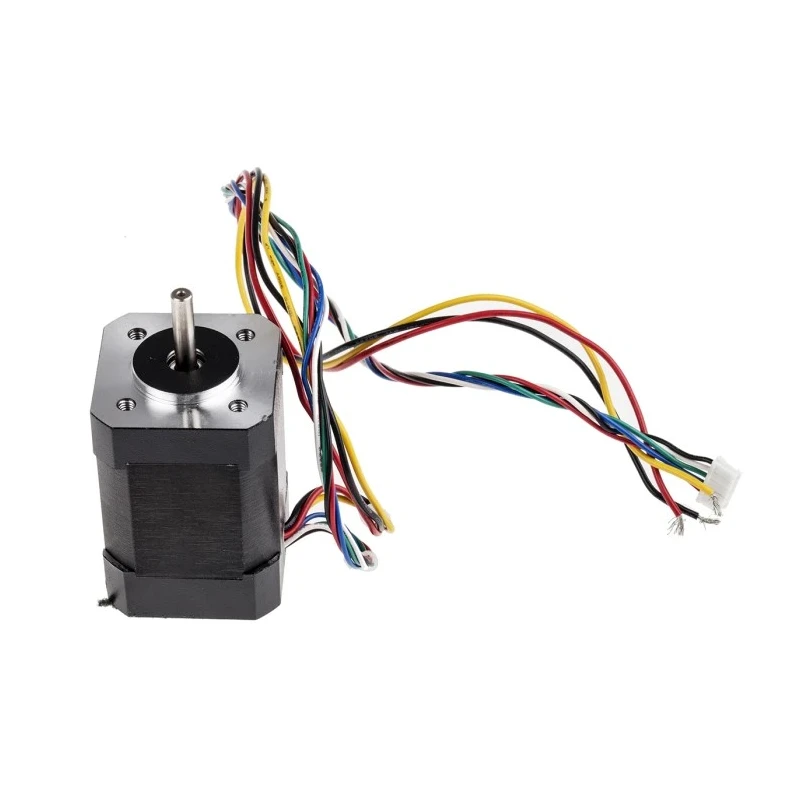

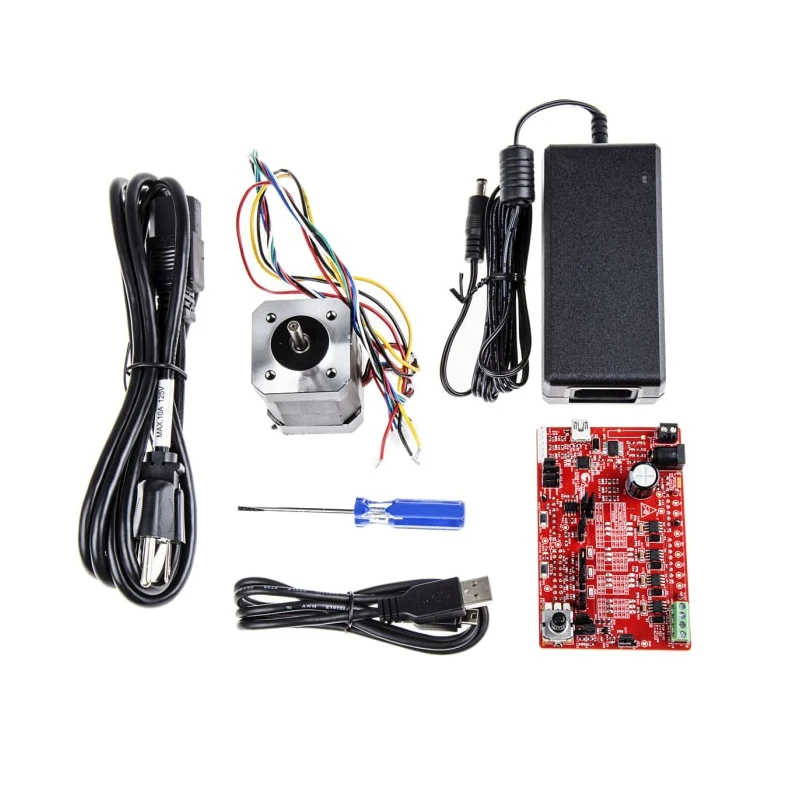

Supplied accessories enhance usability for immediate deployment in development environments and include a 24V 2A power supply adapter, BLDC motor with sinusoidal back-EMF, USB Type-A to mini-B cable, configuration jumpers, 2.5A fuse, screwdriver, and a quick start guide.
This motor controller kit is well suited for educational, prototype development, industrial control, and research applications involving sophisticated motor control algorithms such as sensorless and sensored Field Oriented Control (FOC).
Supports BLDC, PMSM, and Stepper motor control variations. Includes multiple MOSFET drivers and sensing circuits for comprehensive control. Enables speed control via potentiometer and control buttons. USB-UART bridge allows easy PC communication and control.
Comes with all necessary accessories for quick setup. Integrates with PSoC Creator IDE for concurrent hardware and software design. Ideal for applications in industrial automation, robotics, power electronics, laboratory experimentation, and renewable energy systems.
Explore more products in Motor Controllers and related industrial electronics categories on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports Brushless DC (BLDC), Permanent Magnetic Synchronous Motors (PMSM), and Stepper motors for versatile motor control applications.
The kit includes four IR2101 MOSFET gate drivers, eight IRFU3607 power MOSFETs configured as four half-bridges, and a range of accessories such as a power adapter, BLDC motor, USB cable, and configuration jumpers.
It is equipped with Hall and Back-EMF sensing circuits that provide accurate rotor position feedback for precise motor control.
The motor controller kit is powered by a 24V 2A power adapter, ensuring adequate power for operation.
It features a USB-UART bridge controller for easy PC interface connectivity, along with screw terminals for motor windings and power supply inputs.
The potentiometer allows for manual adjustment of motor speed, providing an easy way to control the motor during development.
Yes, it includes an Arduino-format shield header for interfacing with the CY8CKIT-042 Pioneer Kit controller board, enhancing its integration capabilities.
This kit is suitable for educational, prototype development, industrial control, and research applications involving sophisticated motor control algorithms.
The kit includes a quick start guide, a screwdriver, and configuration jumpers, facilitating immediate deployment in development environments.
The Infineon PSoC 4 Pioneer Kit Motor Controller is manufactured in India.
The phase current detection circuit processes current information to ensure precise motor control, enhancing the responsiveness of motor operation.
It integrates with the PSoC Creator IDE, allowing for concurrent hardware and software design during development.
