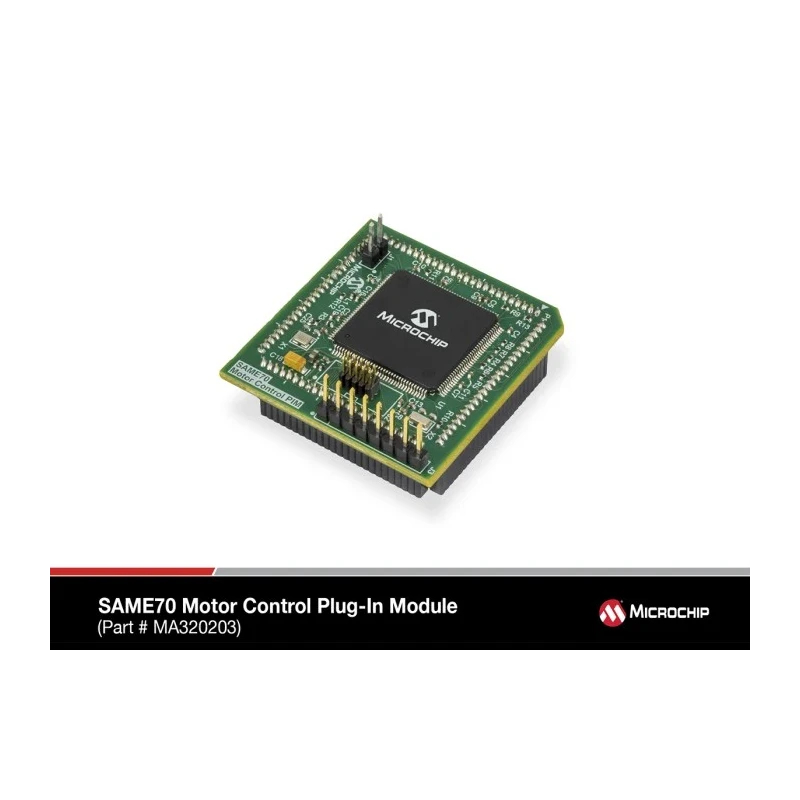

Microchip ATSAME70 Motor Control Plug In Module Motor Controller for ATSAME70 for MCLV-2, MCHV-3 ATSAME70

Microchip ATSAME70 Motor Control Plug In Module (model ATSAME70) is a high-performance evaluation board designed specifically for motor control applications using the ATSAME70 microcontroller. The module features an ARM Cortex-M7 core running at 300MHz, delivering efficient processing power with a double precision floating point unit (FPU) for high-precision computing and accelerated data processing.

This motor controller module supports dual Bosch CAN-FD 1.0 Controllers, enabling robust communication and control in automotive and industrial environments. It includes a 10/100 Ethernet MAC compliant with IEEE1588 standards, allowing precise network time synchronization vital for industrial automation.

The integrated high-speed USB Host and Device with on-chip PHY facilitate flexible connectivity options. The advanced analog front end comprises dual 2Msps 12-bit ADCs with features such as 16-bit averaging, offset error correction, gain control, and up to 24 input channels, complemented by dual 12-bit DACs and analog comparators for accurate signal conversion.

Security is enhanced with integrated AES hardware encryption engines, a true random number generator (TRNG), and SHA-based memory integrity checking, safeguarding embedded applications against cyber threats.

Designed for harsh industrial conditions, the ATSAME70 module supports an extended temperature range from -40°C to 105°C. Package options range between 64 and 144 pins to suit various design requirements. This module is intended for developers and engineers working in industrial, robotics, power, motor control, and embedded system development, facilitating efficient prototyping and testing.

Features ARM Cortex-M7 core running at 300MHz for high performance. Includes a double precision floating point unit (FPU) for precise computation. Equipped with dual Bosch CAN-FD 1.0 Controller for flexible connectivity.

Supports 10/100 Ethernet MAC with IEEE1588 for network synchronization. High-speed USB Host and Device interface with integrated PHY. Advanced analog front end with dual 2Msps 12-bit ADCs and 12-bit DACs. Integrated security with AES hardware encryption and TRNG.

Extended industrial temperature range from -40°C to 105°C. Compact package options from 64 to 144 pins. Designed for power, motor, and robotics development tools applications. Explore the Microchip Motor Controller category at EnvMart for more development tools and motor control solutions.
