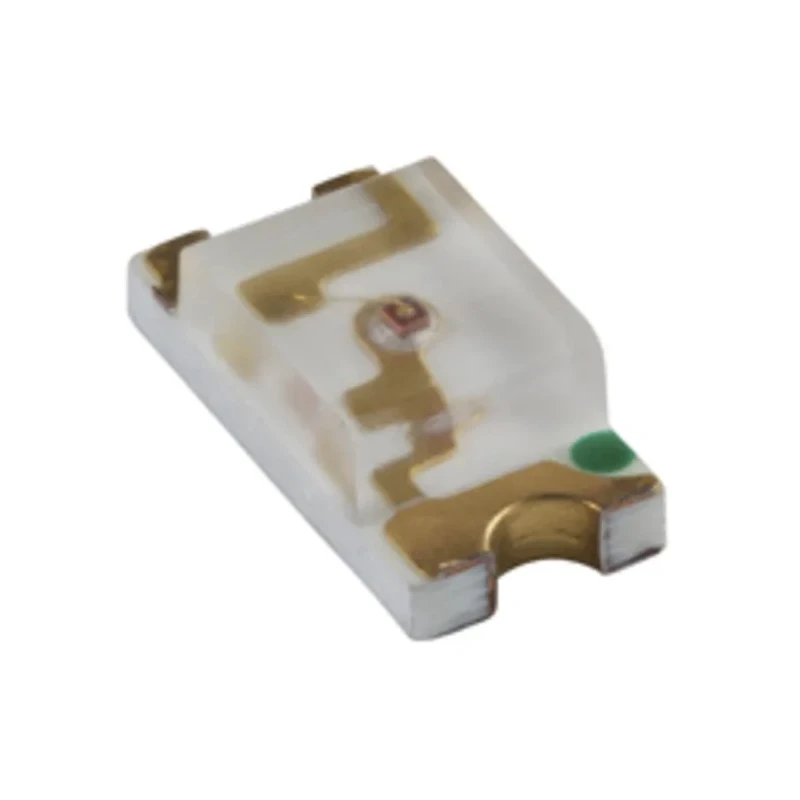

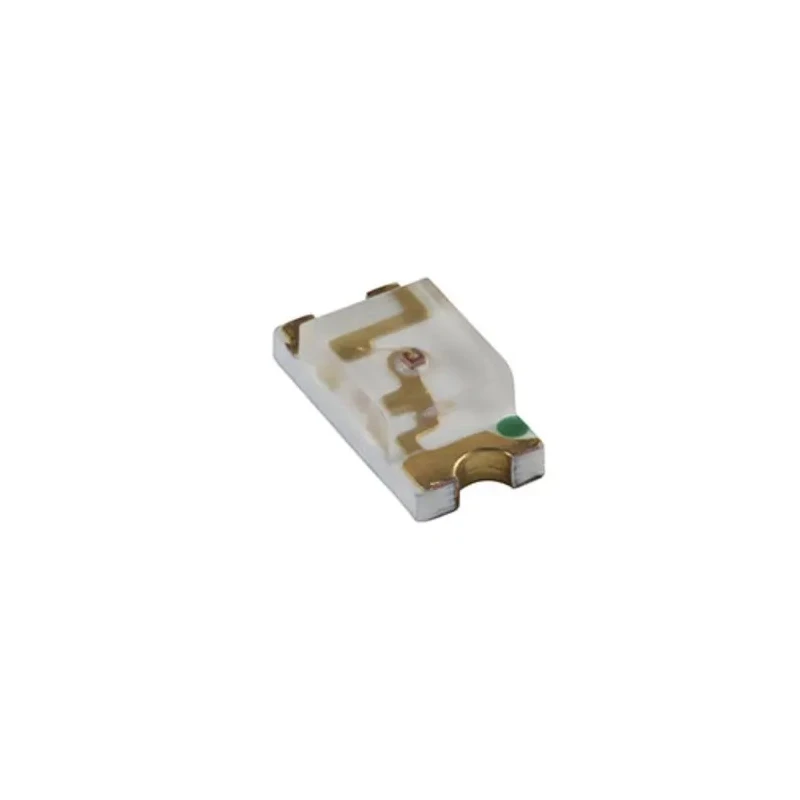

Bivar 4.2 V White SMD LED, Surface Mount, 3216 Package, 750 mcd, Diffused Lens, SM1206NUWC-IL
Specifications
| Country of Origin | China |
|---|---|
| Brand | Bivar |
| Model | SM1206NUWC-IL |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Number Of Leds | 1 |
| Maximum forward current | 25mA |
| Viewing angle | 30 ° |
| Package Type | 3216 |
| Standards/Approvals | RoHS |
| LED Colour | White |
| Forward Voltage | 4.2V |
| Number of Pins | 2 |
| LED Luminosity | 750 mcd |
| Maximum Power Dissipation | 100mW |
| Lens Dimensions | 2 x 1.6 mm |
| Lens Shape | Rectangular |
| Lens Finish | Diffused |
Key Features
- Operates at a forward voltage of 4.2 V for reliable LED performance.
- White LED color with diffused lens enhances uniform light output.
- Industry standard 3216 package and surface-mount design suits automated assembly.
- Delivers luminous intensity of 750 mcd for clear visibility.
- Maximum power dissipation of 100 mW ensures stable operation.
- Narrow 30 degree viewing angle for precise lighting applications.
- Supports maximum forward current of 25 mA for optimal brightness.
- Rectangular lens shape and 2 x 1.6 mm dimensions for compact installation.
Product Description
Bivar SM1206NUWC-IL is a high-performance surface-mount LED, engineered for demanding industrial, electronic, and optoelectronic applications. This LED operates at a forward voltage of 4.2 V and features a white, diffused lens for uniform light diffusion and enhanced visibility. With its industry standard 3216 package type and compact rectangular lens measuring 2 x 1.6 mm, this product is ideal for integration into automated production lines and advanced circuit assemblies.
The SM1206NUWC-IL delivers a luminous intensity of up to 750 mcd, offering clear illumination with a narrow viewing angle of 30 degrees that makes it suitable for indicator, backlighting, and signaling tasks where controlled light direction is essential. The diffused lens finish reduces glare while maintaining consistent brightness levels across applications in instrumentation, displays, and optoelectronic systems.
Designed for tape and reel packaging, the LED is compatible with high-speed pick-and-place assembly for mass manufacturing. With a maximum forward current of 25 mA and maximum power dissipation of 100 mW, the component balances energy efficiency with robust performance. It features two pins and is RoHS compliant, ensuring eco-friendly operation and global regulatory adherence.
Its surface-mount configuration simplifies PCB installation in electronic devices ranging from laboratory instruments, industrial panels, and consumer devices to medical and automotive applications that require precise lighting and reliable indicator solutions. The rectangular lens geometry and compact form factor support dense layout configurations and efficient board space utilization.
Applications for the Bivar SM1206NUWC-IL include industrial displays, indicator lights, signal communication modules, consumer electronics, laboratory instrumentation, and variable lighting systems. It is also suited for use in manufacturing equipment, test systems, and commercial control panels due to its stable performance and enhanced reliability.
Explore more optoelectronic and LED solutions in the Electronics Components category and browse the Bivar range for high-quality, innovative lighting components on EnvMart.
Explore more products in our LEDs - Light Emitting Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The forward voltage of this LED is 4.2 V, which is essential for its reliable performance.
It delivers a luminous intensity of 750 mcd, providing clear visibility in various applications.
The maximum forward current for this model is 25 mA, which allows for optimal brightness.
This LED has a narrow viewing angle of 30 degrees, making it suitable for precise lighting applications.
The lens dimensions are 2 x 1.6 mm, which supports compact installation in electronic devices.
It is packaged in tape and reel format, which is compatible with automated assembly processes.
The maximum power dissipation for this model is 100 mW, ensuring stable operation during use.
Yes, this LED is RoHS compliant, ensuring it meets eco-friendly standards.
It features a diffused lens finish, which enhances uniform light output and reduces glare.
This model has two pins, facilitating its connection in electronic circuits.
It is suitable for applications such as industrial displays, indicator lights, and signal communication modules.
The Bivar SM1206NUWC-IL uses a surface mount configuration, simplifying PCB installation.
