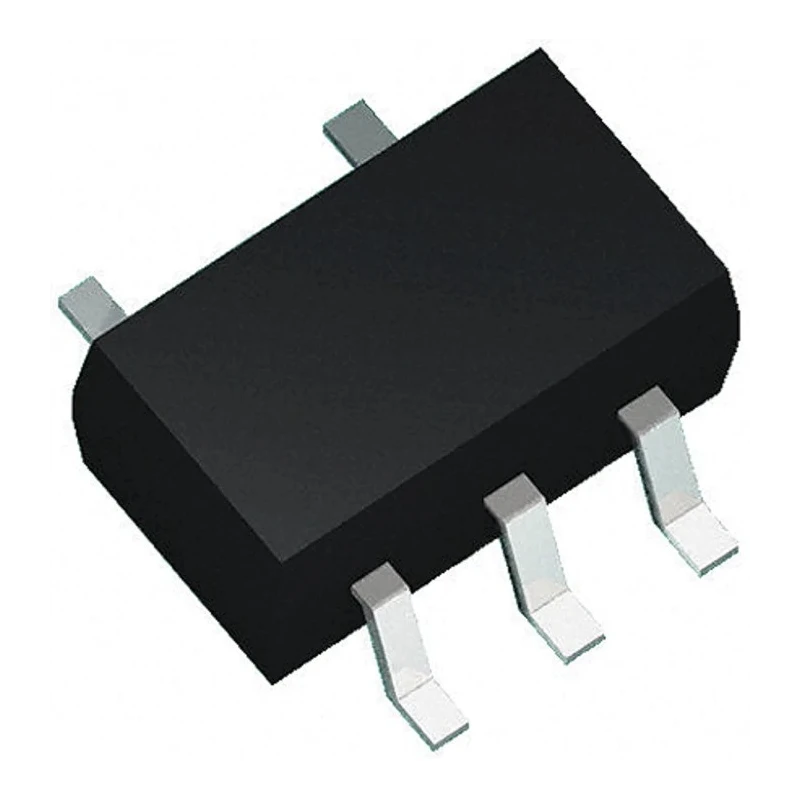

Littelfuse 4-Element Uni-Directional TVS Diode Array, 0.2 W, 5-Pin SC-70 SP0504BAJTG
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Littelfuse |
| Height | 1mm |
| Length | 2.25mm |
| Model | SP0504BAJTG |
| Width | 1.35mm |
| Mount Type | Surface |
| Series | SP05 |
| Maximum Operating Temperature | 85°C |
| Package Type | SC-70 |
| Minimum Operating Temperature | -40°C |
| Interfaces | USB1 |
| Pin Count | 5 |
| Number of Elements per Chip | 4 |
| Clamping Voltage VC | 8.5V |
| Diode Configuration | Array |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 6V |
| Maximum Reverse Stand-off Voltage Vwm | 5.5V |
| Peak Pulse Power Dissipation Pppm | 0.2W |
| Test Current It | 10mA |
| Maximum Reverse Leakage Current | 100nA |
Key Features
- The diode array features 4 elements for comprehensive protection.
- Uni-directional configuration suitable for applications up to 5 VDC.
- Peak pulse power dissipation is 0.2 W ensuring robust transient voltage suppression.
- Compact surface mount SC-70 package with 5 pins allows easy PCB integration.
- Operates reliably between -40°C to 85°C for diverse environments.
- Minimum breakdown voltage is 6 V with clamping voltage at 8.5 V for effective surge management.
- Maximum reverse standoff voltage is 5.5 V to protect circuits below this threshold.
- Low maximum leakage current of 100 nA minimizes power loss during normal operation.
Product Description
Littelfuse SP0504BAJTG is a 4-element uni-directional TVS diode array designed for transient voltage suppression in electronic circuits. Its compact SC-70 5-pin surface mount package measures 2.25 mm in length, 1.35 mm in width, and 1 mm in height, facilitating high-density PCB applications.
The device offers fast response time to voltage surges and ESD protection, making it suitable for sensitive electronic components operating up to 5 VDC. Featuring a minimum breakdown voltage of 6 V and a clamping voltage of 8.5 V, the array effectively protects against transient overvoltage conditions.
With a peak pulse power dissipation rating of 0.2 W and test current of 10 mA, this diode array ensures robust durability in transient environments. The operating temperature range from -40°C to 85°C supports use in industrial, automotive, and consumer electronics applications.
This TVS Diode Array is ideal for protecting voltage-sensitive devices in telecommunications, computing, and power supply circuits. It complies with RoHS standards, ensuring environmental compliance and safe usage in modern electronic assemblies.
The diode array features 4 elements for comprehensive protection. Uni-directional configuration suitable for applications up to 5 VDC. Peak pulse power dissipation is 0.2 W ensuring robust transient voltage suppression. Compact surface mount SC-70 package with 5 pins allows easy PCB integration.
Operates reliably between -40°C to 85°C for diverse environments. Minimum breakdown voltage is 6 V with clamping voltage at 8.5 V for effective surge management. Maximum reverse standoff voltage is 5.5 V to protect circuits below this threshold.
Low maximum leakage current of 100 nA minimizes power loss during normal operation. Manufactured in Thailand adhering to quality standards.
The Littelfuse SP0504BAJTG offers reliable protection for industrial, telecommunications, consumer electronics, and automotive circuits vulnerable to transient voltage spikes. Its small package footprint and efficient performance make it a versatile choice for modern electronic designs.
Explore more Littelfuse semiconductor products in the EnvMart catalog for comprehensive electronic component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation of the Littelfuse SP0504BAJTG is 0.2 W, ensuring effective transient voltage suppression.
This model operates reliably between -40°C and 85°C, making it suitable for diverse environments.
The clamping voltage for this diode array is 8.5 V, which helps in managing surge conditions effectively.
The Littelfuse SP0504BAJTG features 4 elements, providing comprehensive protection against transient voltages.
The minimum breakdown voltage of this model is 6 V, which is crucial for protecting circuits from overvoltage.
The SC-70 package measures 2.25 mm in length, 1.35 mm in width, and 1 mm in height, facilitating high-density PCB applications.
The maximum reverse stand-off voltage for the SP0504BAJTG is 5.5 V, protecting circuits operating below this threshold.
The maximum reverse leakage current is 100 nA, which minimizes power loss during normal operation.
This model uses surface mount technology, which allows for easy integration into printed circuit boards (PCBs).
This TVS diode array is suitable for protecting voltage-sensitive devices in telecommunications, computing, and power supply circuits.
The test current for the Littelfuse SP0504BAJTG is 10 mA, which is used to evaluate its performance under specified conditions.
This diode array is manufactured in Thailand, adhering to quality standards for electronic components.
