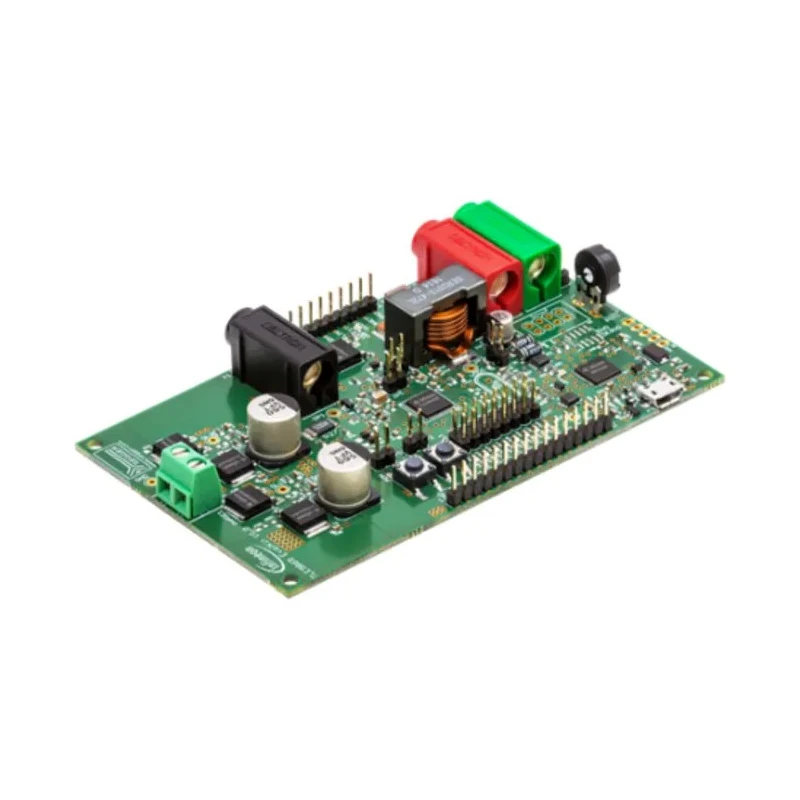

Infineon Motor Controller Evaluation Kit for MOSFETS with H-Bridge, UART, LIN Communication TLE9869EVALKITTOBO1

Free Delivery in India | Lowest Global Shipping Charges

Infineon Motor Controller Evaluation Kit for MOSFETS with H-Bridge, UART, LIN Communication TLE9869EVALKITTOBO1

Name: Infineon Motor Controller Evaluation Kit for MOSFETS with H-Bridge, UART, LIN Communication TLE9869EVALKITTOBO1
Brand: Infineon
SKU: 192985



Category Motor Controller Brand Infineon Condition New

Specifications

Country of Origin	India
Brand	Infineon
Model	TLE9869EVALKITTOBO1
Featured Device	MOSFETS, MOTIX TLE9869QXA20

Key Features

Allows complete evaluation of all functions of the TLE9869QXA20 device.
Includes H-Bridge configuration for direct DC motor drive via MOSFETS.
Supports UART and LIN communication protocols for control.
Provides direct access to all device input/output pins.
Equipped with a J-Link debugger for in-depth debugging.
Free mode supports usage with existing dashboards and runtime variable monitoring.
Oscilloscope feature available for plotting data requiring target microcontroller code.
Compatible for evaluation of the entire TLE9869x product family.

Product Description

Infineon's TLE9869EVALKITTOBO1 is a comprehensive evaluation kit for the TLE9869QXA20 motor controller, designed to facilitate development and testing of DC motor control applications. Featuring MOSFETs in an H-Bridge configuration, this kit enables direct connection to DC motors with precise control capabilities.

The kit supports UART and LIN communication interfaces, allowing flexible control and data exchange between the controller and external systems. Developers gain complete access to all functional I/O pins on the device, enhancing debugging and customization potential.

Included is a Segger J-Link debugger, facilitating robust debugging capabilities and easy programming of the target controller. The evaluation kit operates in a free mode permitting use with existing control dashboards, enabling runtime reading and writing of variable values. Additionally, an oscilloscope function allows graphical plotting of data when executing appropriate target microcontroller code.

This kit uses the super set device TLE9869QXA20 and supports evaluation of all devices in the TLE9869x product family, making it a versatile tool for motor and power management development. It is widely applicable in industrial automation, robotics, motor drive development, and education sectors such as Raspberry Pi, Arduino, and STEM projects.

Complete evaluation of TLE9869QXA20 functions and peripherals. MOSFET-based H-Bridge for direct DC motor drive. UART and LIN for robust communication options. Direct access to device I/Os for enhanced control. Segger J-Link debugger for efficient debugging.

Free mode supports integration with standard dashboards. Oscilloscope capabilities require running target code. Compatible with the TLE9869x product family. Suitable for industrial, robotics, and educational applications.

Explore EnvMart's wide range of Motor Controllers and evaluation kits to support your development needs with trusted brands like Infineon.
