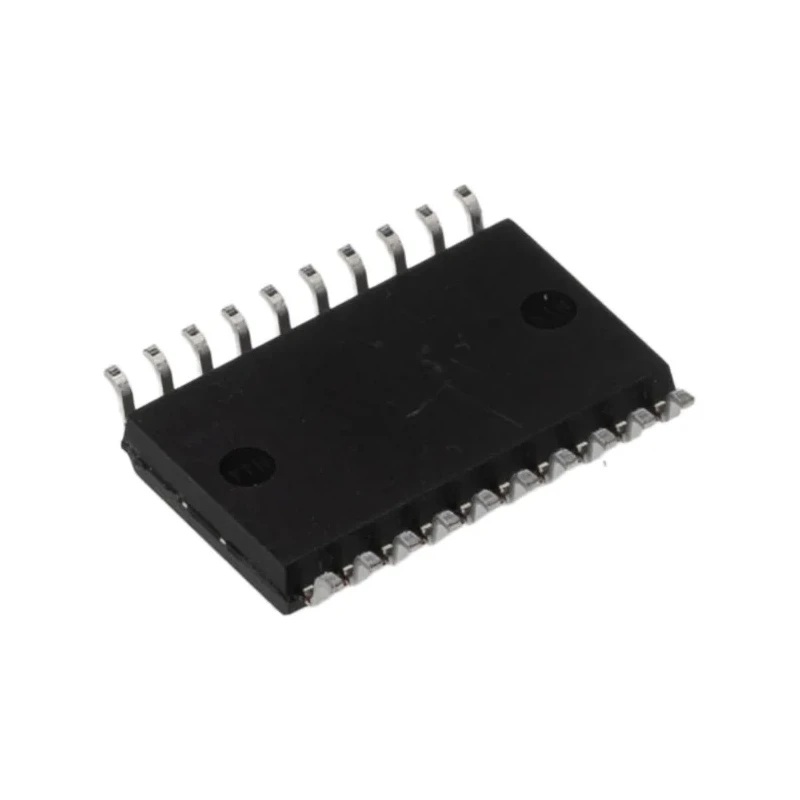

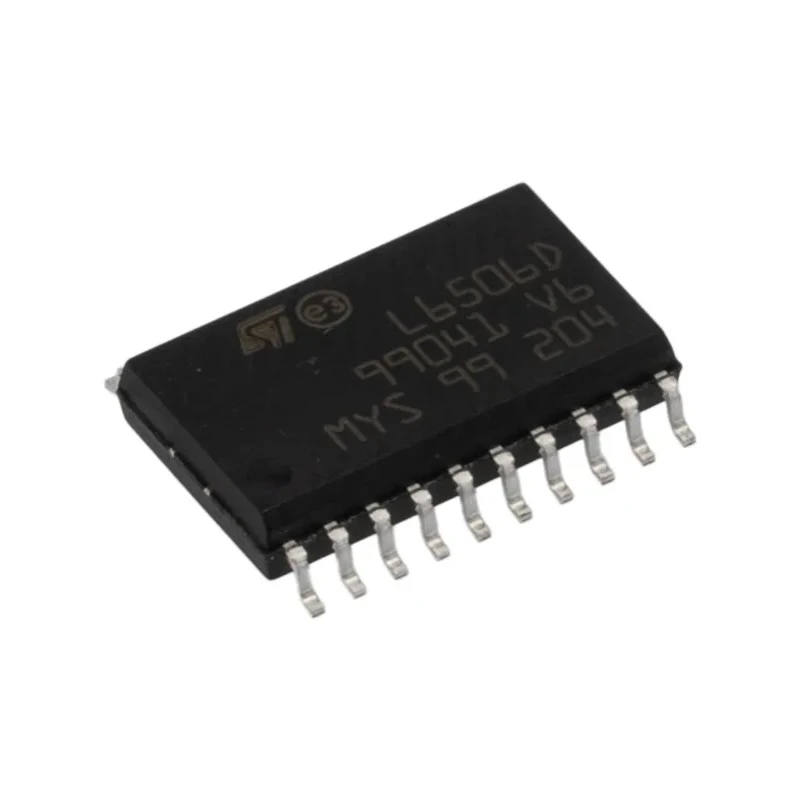

STMicroelectronics Stepper Motor Controller, Dual Configuration, 7 V, 20-Pin SOIC L6506D

STMicroelectronics L6506D is a high-performance stepper motor controller designed for precise dual motor control applications. This component comes in a 20-pin SOIC surface mount package, offering a compact form factor with dimensions of 13 mm in length, 7.6 mm in width, and 2.35 mm in height, making it well suited for dense electronic assemblies.

Operating within a voltage range of 4.5 V to 7 V and supporting a maximum collector emitter voltage of 7 V, the L6506D provides reliable and efficient motor driving. Its output current of 2.75 mA ensures effective control and smooth operation of stepper motors. The supply current is 25 mA, balancing power consumption and performance.

The controller is rated to operate in harsh industrial conditions with a temperature range from -40°C up to 150°C, ensuring durability and stability in various environments. Its dual configuration allows simultaneous control of two stepper motors, ideal for applications in robotics, automation systems, and precision instrumentation.

This device does not carry automotive standard certifications but is suitable for general industrial motor controller applications. The package type SOIC supports easy surface mounting on printed circuit boards, facilitating integration into complex electronic systems.

STMicroelectronics L6506D offers designers a reliable and compact solution for motor control tasks, improving efficiency and control precision in manufacturing equipment, robotic systems, and other automated machinery.

The controller operates with a supply voltage range from 4.5 V to 7 V. It supports a maximum collector emitter voltage of 7 V. Output current capability is 2.75 mA for motor driving applications. Features a 20-pin SOIC package with compact dimensions suitable for surface mounting.

Operational temperature ranges from -40°C to 150°C for industrial reliability. The device consumes a supply current of 25 mA during operation. Compatible with motor control applications requiring dual-stepper motor configurations.

Designed to optimize motor performance with efficient power management. Stable operation ensured over wide temperature and voltage margins. Explore more electronic components and Motor Controllers on EnvMart for comprehensive industrial and technical solutions.
