MikroElektronika Power Management Development Kit PWM Driver Click Motor Controller MIKROE-2272

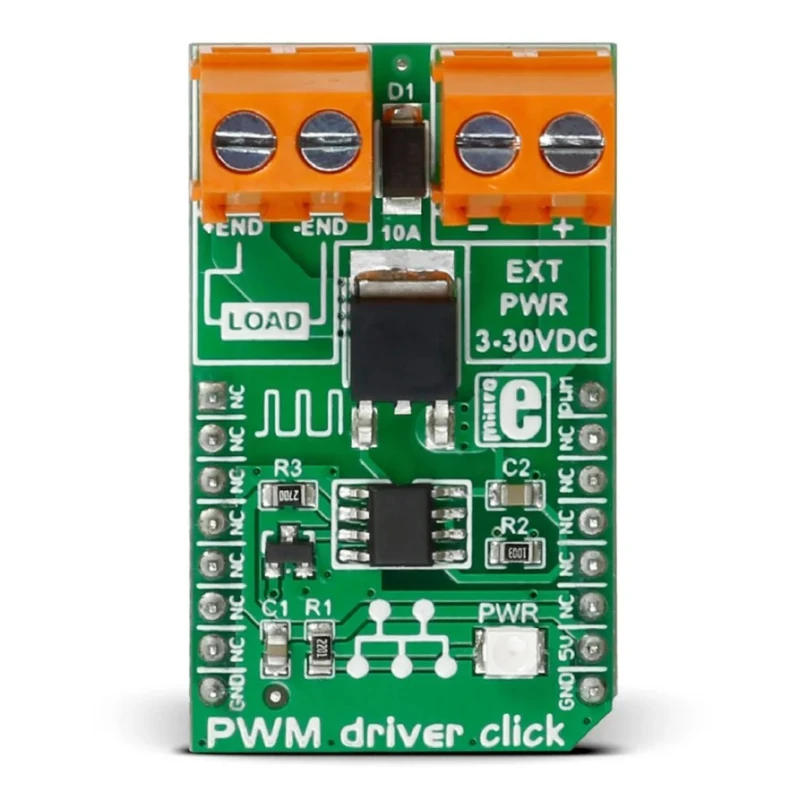

MikroElektronika MIKROE-2272 PWM Driver Click Motor Controller is a compact power management development kit tailored for controlling DC motor speed and switching DC load circuits efficiently. This mikroBUS add-on board integrates advanced components including the Silicon Labs Si8711CC digital isolator which provides 5kV isolation, LED emulator input, and an open collector output for reliable signal transmission.

The PWM Driver Click employs the power MOSFET DMP3010LK3, controlled by a pulse-width modulation input that modulates the power supplied to the load, enabling fine control over motor speed or load activation timing. This setup supports load currents of up to 10 A, suitable for a wide range of DC motors and other DC devices.

External power can be supplied between 3 V and 30 V DC via dedicated screw terminals, providing flexibility in design and application scenarios. The board receives its operating voltage of 5 V directly from the mikroBUS socket, simplifying integration with mikroElektronika development platforms.

This development kit is ideal for electronics, robotics, industrial automation, and embedded system projects requiring precise motor control or DC load switching functionality. Its robust isolation and versatile power handling make it suitable for laboratory, manufacturing, HVAC, industrial machinery, and educational applications.

Integrates Silicon Labs Si8711CC digital isolator with 5kV isolation. Controls loads with power MOSFET DMP3010LK3 driven by PWM signal. Allows load connection up to 10 A via screw terminals. Supports external power supply from 3 to 30 V DC.

Powered from 5 V supply on mikroBUS socket. For additional information and related development tools, browse the Motor Controllers and power management kits category at EnvMart.
