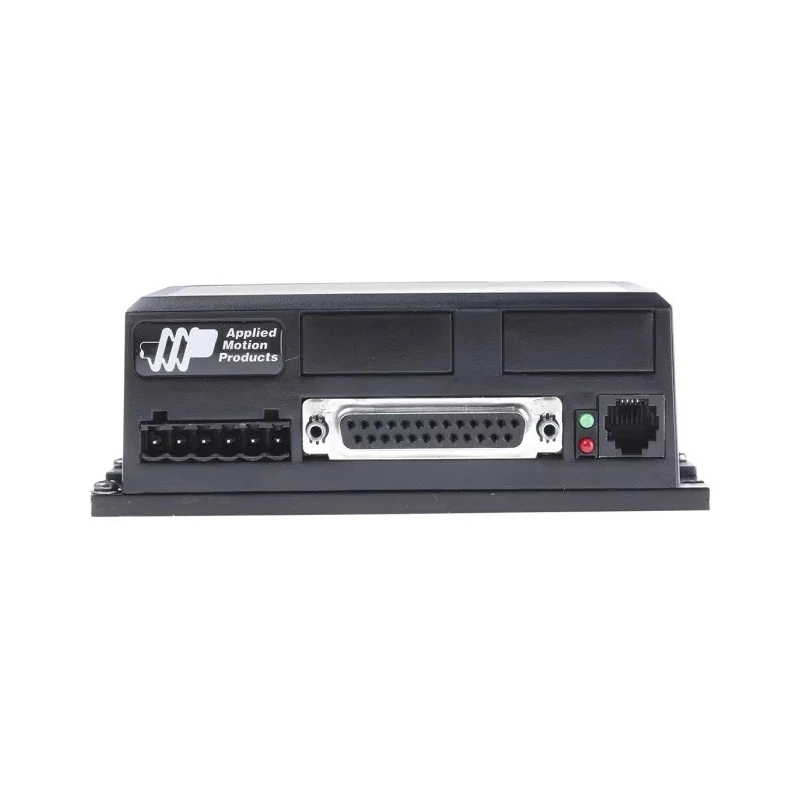

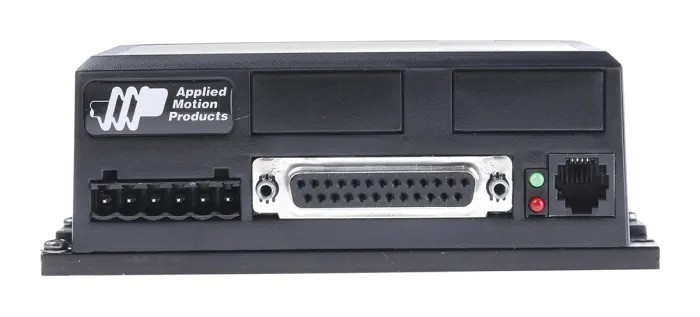

Applied Motion Systems 48V DC 10A Stepper Motor Controller Amplifier Function ST10-SI
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Applied Motion Systems |
| Model | ST10-SI |
| Overall Length | 127mm |
| Current Rating | 10A |
| Overall Width | 76mm |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | 0°C |
| Supply Voltage | 48V dc |
| Standards/Approvals | RoHS |
| Overall Depth | 44.5mm |
| Control Function | Amplifier |
| Pulse and direction | pulse/direction, CW/CCW, A/B quadrature |
Key Features
- Programmable microstepping from 200 to 58000 steps per revolution for high precision.
- Supports pulse and direction signals including pulse/direction, CW/CCW, and A/B quadrature inputs.
- Features host control mode with idle current reduction to improve efficiency.
- Incorporates anti-resonance and torque ripple smoothing for smooth motor operation.
- Equipped with 8 digital inputs and 4 digital outputs for flexible control options.
- Compatible with optional encoder feedback and RS-485 communication boards.
- Compact with dimensions length 127mm, width 76mm, and depth 44.5mm.
- Designed to operate in temperatures from 0°C to 55°C, suitable for industrial environments.
Product Description
Applied Motion Systems ST10-SI is a high-performance programmable stepper motor controller designed to facilitate precise motor control with amplifier function at 48V DC and 10A current rating.
This stepper drive supports a wide range of microstepping resolutions from 200 up to 58000 steps per revolution, ideal for applications requiring fine motion control and positioning accuracy. It accepts multiple control signal types including pulse/direction, clockwise/counterclockwise, and A/B quadrature inputs, making it compatible with diverse industrial control systems.
The ST10-SI includes advanced features such as host control mode allowing configurable motor operation, idle current reduction for energy efficiency, anti-resonance to attenuate vibration, and torque ripple smoothing which enhances smooth performance during motor movement.
It offers 8 digital inputs and 4 digital outputs, providing flexible interfacing capabilities. Users may add optional boards for enhanced feedback with encoder support (ST-ENC) or RS-485 communication (ST-RS485), enabling integration into wider automation systems.
Compact in size - measuring 127mm in length, 76mm in width, and 44.5mm in depth - this controller is suited for industrial, automation, laboratory, and manufacturing environments. The device operates reliably in ambient temperatures ranging from 0°C to 55°C. It complies with RoHS standards ensuring environmental safety.
Programmable microstepping from 200 to 58000 steps/rev. Supports various pulse and direction control schemes. Host control mode with idle current reduction. Anti-resonance and torque ripple smoothing for stable operation.
8 digital inputs and 4 digital outputs for comprehensive control. Optional encoder feedback and RS-485 communication boards available. Compact dimensions for easy integration in industrial setups. Operational temperature range from 0°C to 55°C.
This product is manufactured in the United States and is ideal for precision motor control applications in industrial automation, robotics, manufacturing lines, and other electrical/mechanical systems requiring reliable stepper motor management.
Explore the range of stepper Motor Controllers and related industrial automation products in the EnvMart catalog for optimized control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ST10-SI motor controller has a maximum current rating of 10A.
This model operates at a supply voltage of 48V DC.
The dimensions of the ST10-SI are 127mm in length, 76mm in width, and 44.5mm in depth.
It supports programmable microstepping from 200 to 58000 steps per revolution.
This model accepts pulse/direction, clockwise/counterclockwise, and A/B quadrature control signals.
The controller operates within a temperature range of 0°C to 55°C.
It features 8 digital inputs and 4 digital outputs for flexible control options.
Yes, it is compatible with optional encoder feedback boards for enhanced performance.
It includes host control mode, idle current reduction, anti-resonance, and torque ripple smoothing.
Yes, it complies with RoHS standards, ensuring environmental safety.
This product is manufactured in the United States.
It is suitable for precision motor control applications in industrial automation, robotics, and manufacturing lines.
