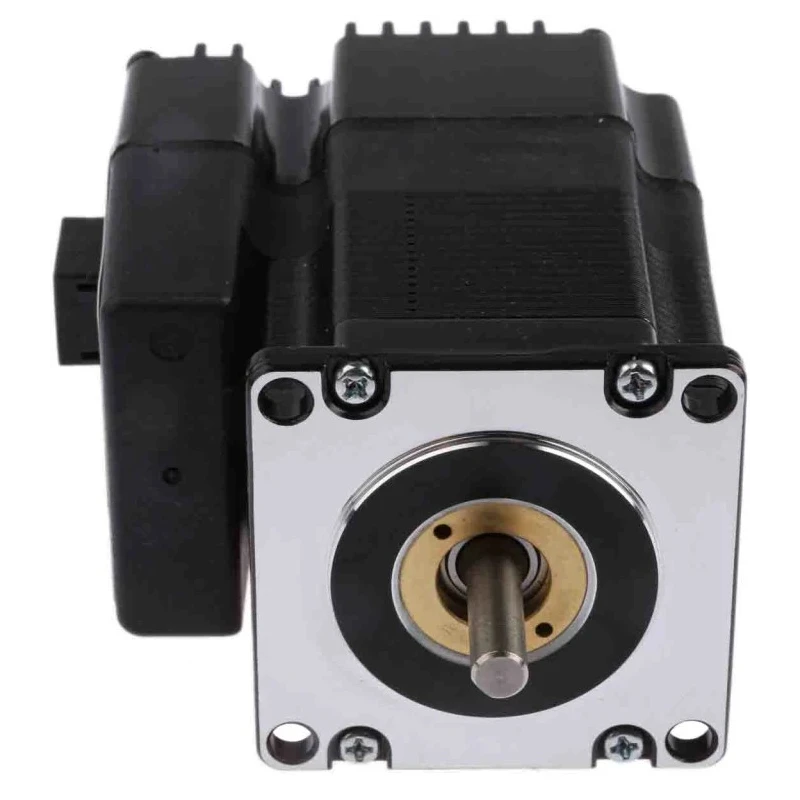

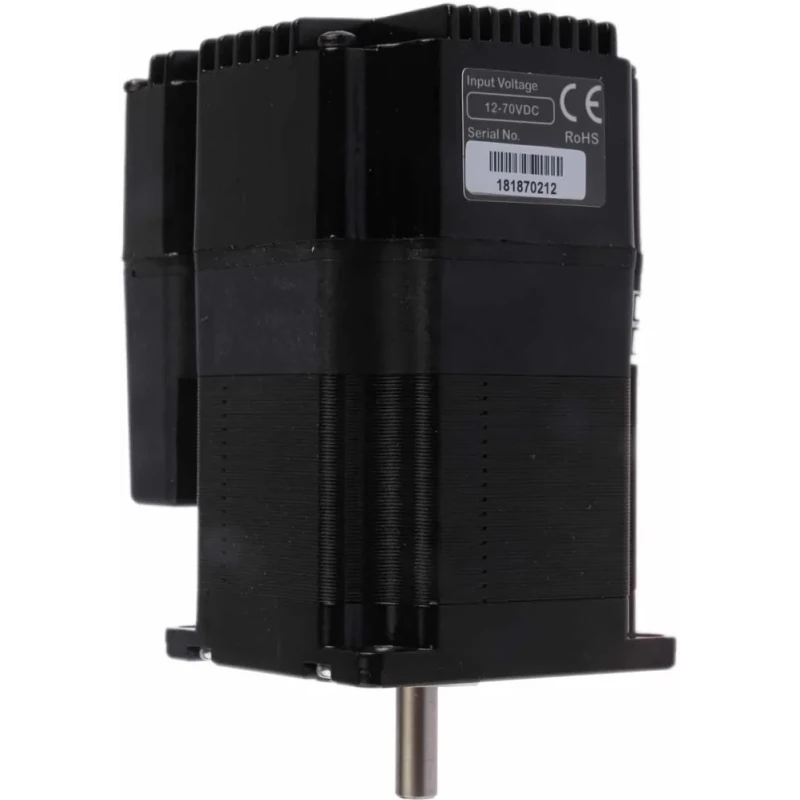

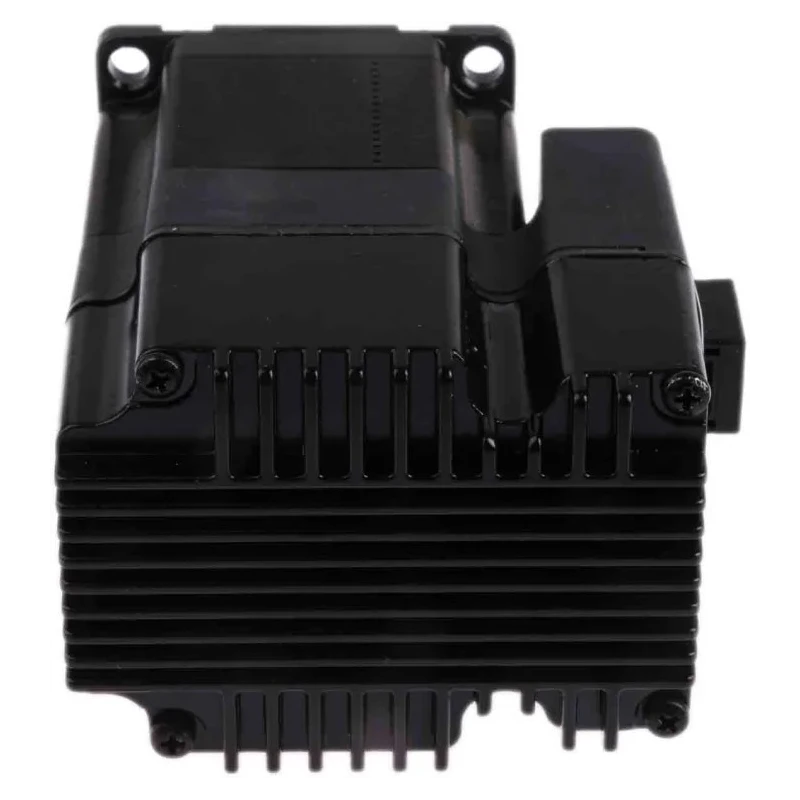

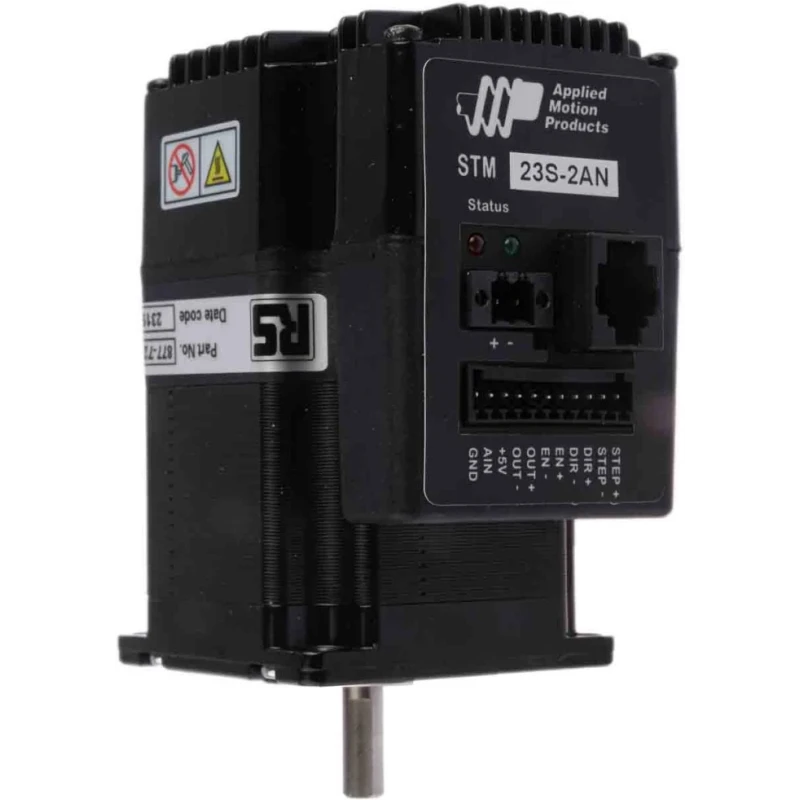

Applied Motion Systems STM Series Dual Hybridge Stepper Motor 48V, 0.88Nm Torque, 1.8°, 23 mm Frame, 6.35 mm Shaft STM23S-2AN

Applied Motion Systems STM23S-2AN Dual Hybridge Stepper Motor combines integrated stepper motor and drive technologies in one compact unit, delivering 48V input voltage and 0.88Nm holding torque. Designed with a 23 mm frame and 6.35 mm shaft diameter, this motor offers precise 1.8° step angles and advanced control features for industrial automation and motion control applications.

This integrated motor-drive package provides space-saving benefits alongside reduced wiring complexity and cost compared with traditional separate motor and drive solutions. Featuring dynamic current control, anti-resonance circuitry, torque ripple smoothing, and stall prevention/detection, it ensures smooth and reliable operation under varying loads.

It supports various control inputs including step and direction, CW/CCW pulse, A/B quadrature pulse, velocity commands, streaming commands (SCL), and joystick oscillator input. The built-in RS232 interface enables flexible communication and easy integration into existing control architectures.

The unit complies with CE EN61800-3:2004 standards and RoHS requirements, affirming its suitability for both European and environmentally-conscious markets. With a NEMA 23 frame size and sturdy 6.35 mm shaft, it is compatible with standard mounting and coupling hardware used in automated manufacturing, robotics, and laboratory equipment.

Integrates motor and drive with control for compact installation. Dynamic current control optimizes performance and efficiency. Anti-resonance and torque ripple smoothing ensure stable operation. Supports multiple pulse and streaming command operation modes.

RS232 communication for comprehensive control interface. Meets CE EN61800-3:2004 safety and RoHS compliance. Robust 23 mm frame with 6.35 mm shaft for mechanical versatility. Ideal for industrial automation, robotics, and precise positioning tasks.
